Leveling the Fusion Pro 48 Table
9

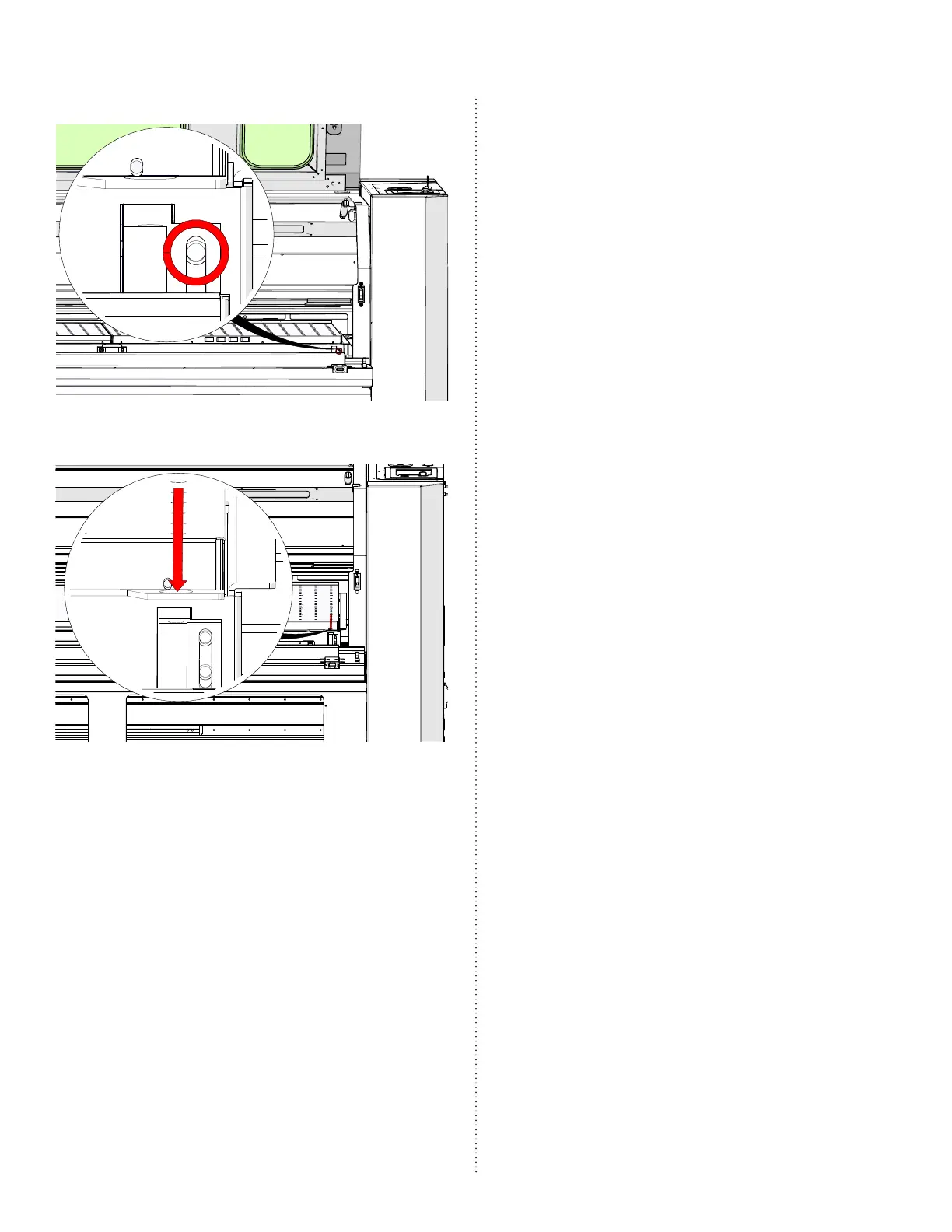

Table Clamp Locking Screw Position 8
Table Level Adjustment Screw Position 8
21. Once the appropriate adjustments
have been made, tighten the table
clamp locking screws.
22. Test both engraving tables by pressing
down on each corner of the inserts
to ensure that theydo not rock up
and down. If rocking is observed, the
leveling procedure may need to be
repeated.
Fine Tuning the Table Level
1. The autofocus can be used to confirm
the quality of the table level.
2. Using the same table locations
described above, jog the lens carriage
to the desired location on the table
and initiate an autofocus command
via the Focus menu.
3. Compare the value returned from
each location. If all locations are
within +/-0.010, the table level is within
specifications.
If further assistance is required, please
contact Epilog Laser Tech Support by
phone at 303-215-9171, or by email at
tech@epiloglaser.com.
