Epilog Mini Series - Align Pointer to Burn Mark

Align the pointer to the burn mark
Next

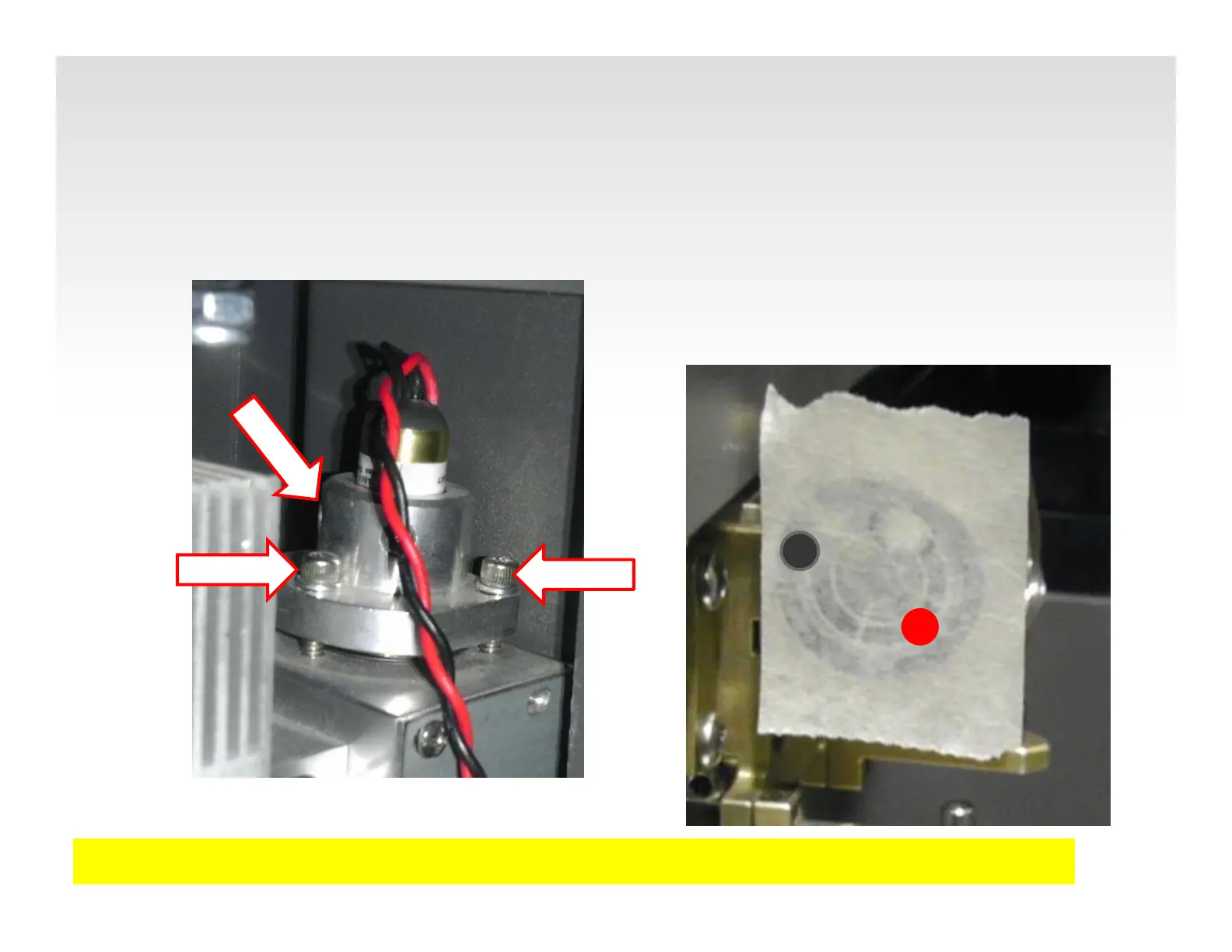

Pointer Adjustment Screws
Tip: Small adjustments can make large changes! Always make Very Small Adjustments.
The Red Dot Pointer is in the rear
of the machine, mounted to the
right end of the laser tube.
Laser Alignment, Epilog 8000 Series 14
