Epilog Mini Series - Page 6

Mirror Numbers and Locations
Tip: The Mirror Numbers match the Table Positions. When adjusting alignment on Position 1 you should only use Mirror 1 and so on.

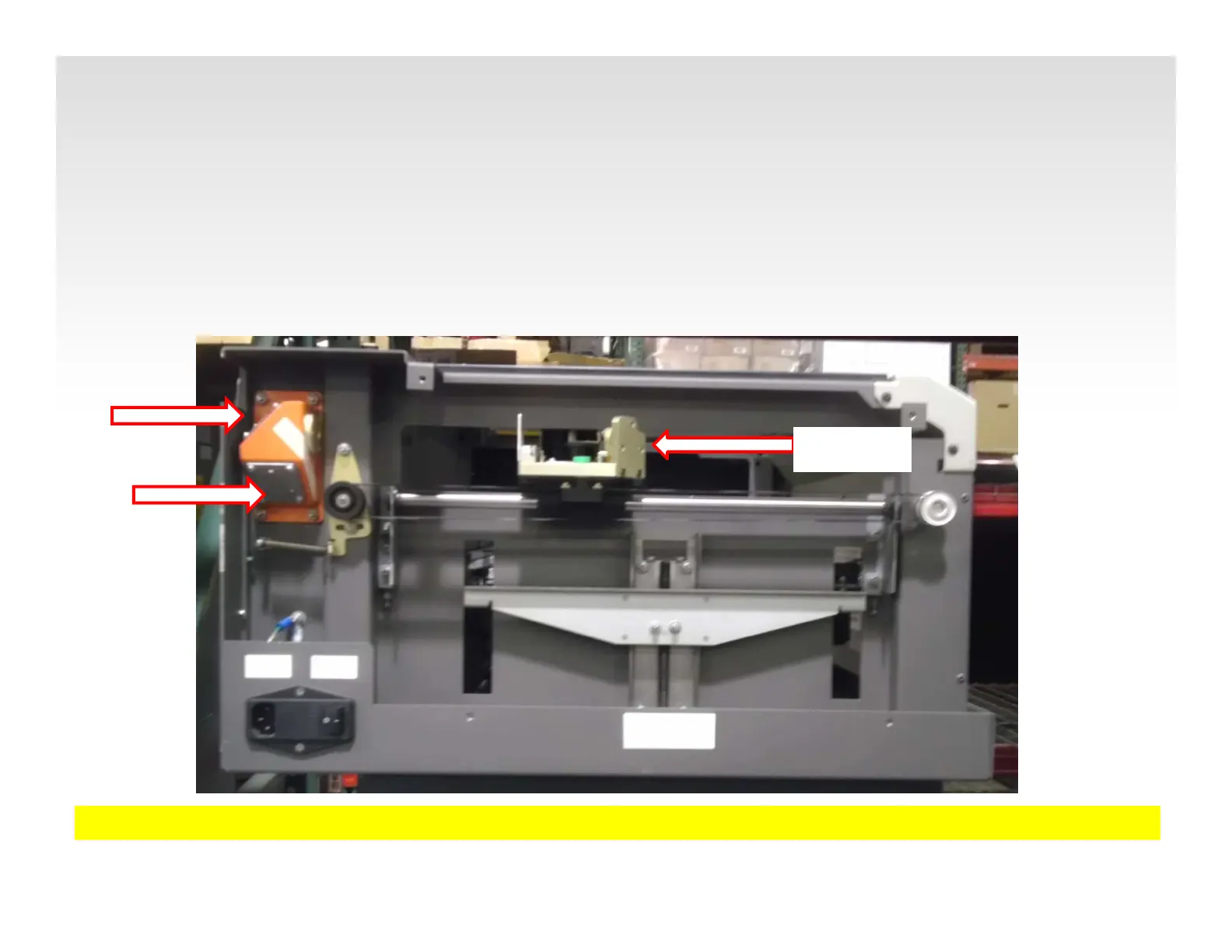

There are 3 mirrors used to adjust the laser beam. These mirrors are shown in the
picture below.
Mirror 2
Mirror 3
Mirror 1
Laser Alignment, Epilog 8000 Series 6
