The EE10 transmitter is ready to use and does not require any configuration by the user. The factory setup of EE10 corresponds to
the type number ordered. For ordering guide please see data sheet at www.epluse.com/ee10.
If need, the user can change the factory setup by using the optional Configuration Adapter Cable HA011066 and the E+E Product
Configuration Software (EE-PCS).

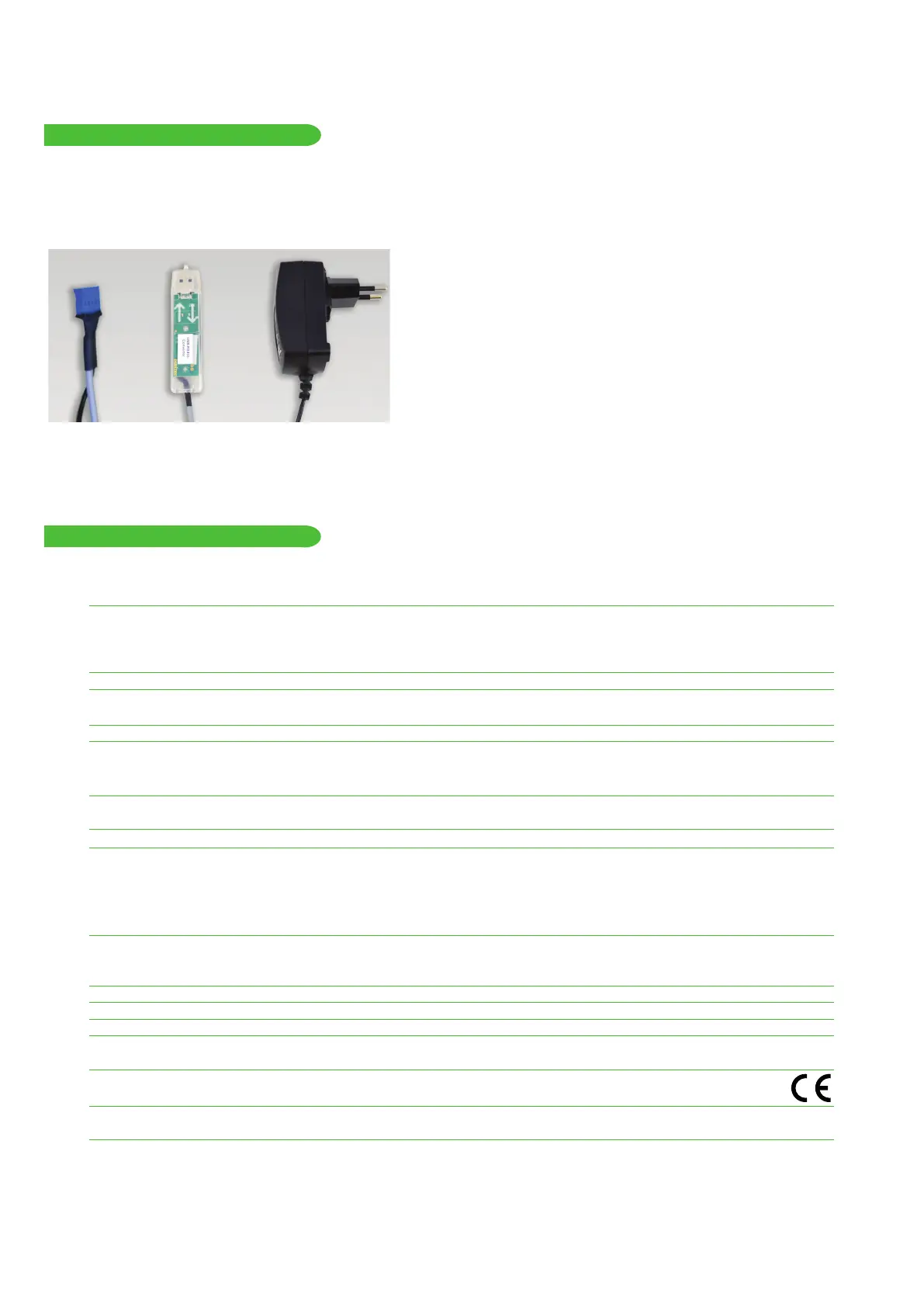

Configuration Adapter Cable HA011066
The user can change the display settings and perform one or two point adjustment for RH and T.
The free E+E Product Configuration Software (EE-PCS) and can be downloaded from www.epluse.com/configurator.
TECHNICAL DATA
Measured values
Relative Humidity
Working range 0...95 % RH
Accuracy
1)
at 20 °C (68 °F) and U
V
=24 V DC
Analogue (0-10 V, 4-20 mA) ±2 % RH (40...60 % RH) ±3 % RH (10...90 % RH)
Digital (RS485) ±3 % RH (30...70 % RH) ±5 % RH (10...90 % RH)
Traceable to intern. standards, administrated by NIST, PTB, BEV...
Temperature dependence typical 0.06 % RH /°C (0.03 % RH / °F)
Temperature
Accuracy
1)
at 20 °C (68 °F) and U
V
=24 V DC output A3: ±0.25 °C (±0.45 °F) output A6: ±0.4 °C (±0.72 °F)
output:J3:±0.3°C(±0.54 °F)
Output
Analogue 0-10 V -1 mA < I
L
< 1 mA
(RH: 0...100 % RH / T: see ordering guide) 4-20 mA (two wires) R
L
< (U
V
-10)/0.02 < 500 Ohm
Digital Interface RS485 with max. 32 devices on one bus
Protocol Modbus RTU or BACnet MS/TP
Temperature passive please see ordering guide
General
Voltage supply (U
V
)
0 - 10 V 15 - 40 V DC or 24 V AC ±20%
4 - 20 mA 10 + 0.02 x R
L
< U
V
< 28 V DC (R
L
< 500 Ohm)
RS485 15 - 35 V DC or 24 V AC ±20%
Current consumption
Analogue (0-10 V, 4-20 mA) for DC supply: typ. 4 mA / for AC supply: typ. 15 mA
eff
Digital (RS485) for DC supply: typ. 9 mA / for AC supply: typ. 20 mA
eff
Electrical connection screw terminals max. 1.5 mm
2
(AWG 16)
Housing (polycarbonate) US Version: UL94V-0 approved / EU Version: UL94HB approved
Protection class IP30
Display for EE10-M1 Humidity / Temperature alternating
for EE10-M6 Humidity
CE compatibility according EN61326-1
EN61326-2-3
Temperature working range -5...55 °C (23...131 °F)
Temperature storage range -25...60 °C (-13...140 °F)
1) The accuracy statement includes the uncertainty of the factory calibration with an enhancement factor k=2 (2-times standard deviation). The accuracy was calculated in
accordance with EA-4/02 and with regard to GUM (Guide to the Expression of Uncertainty in Measurement).
