OPTIONAL STORAGE
8

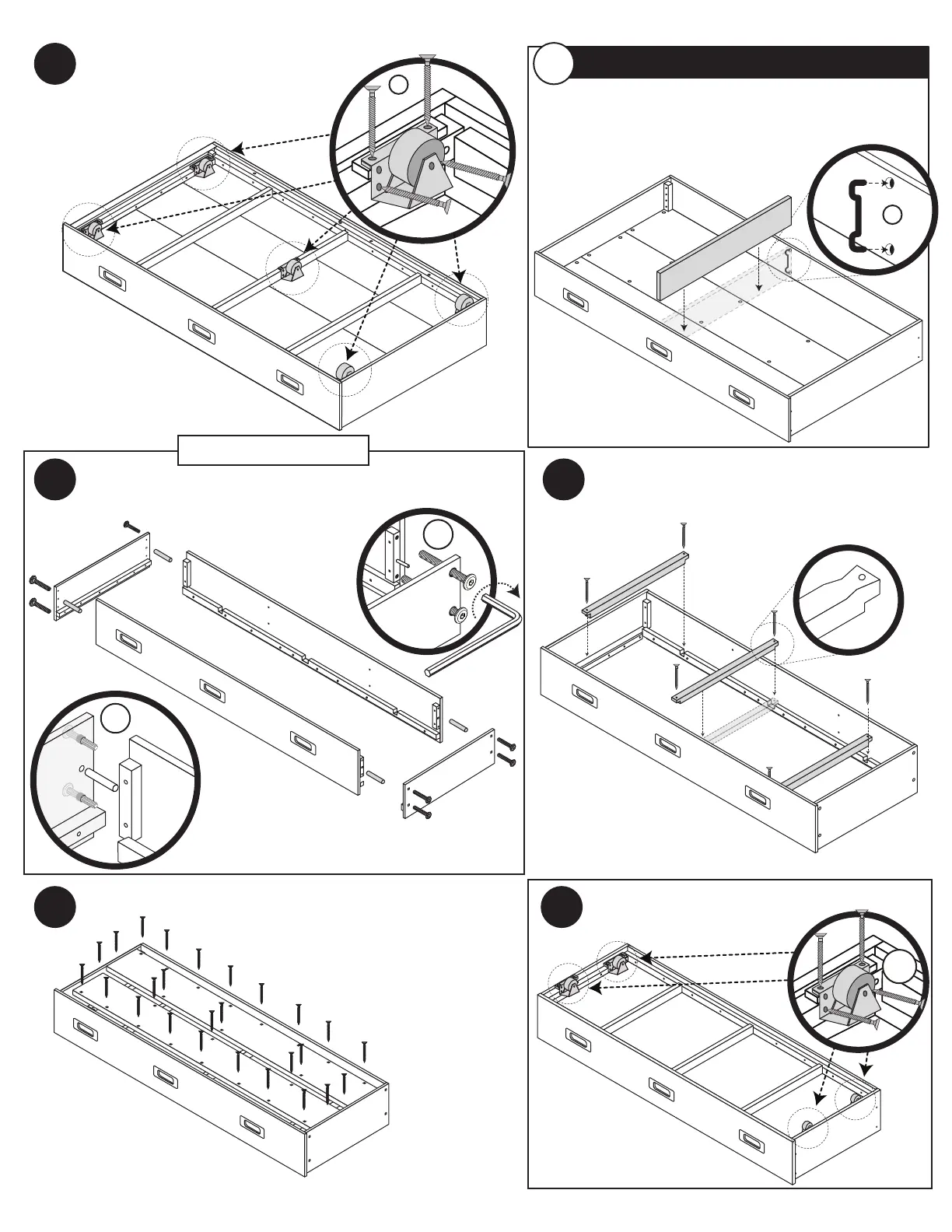

Carefully ip the trundle over and place it
on a soft surface such as a blanket or
carpet to prevent scratching of your
new drawer. Attach wheels with four
20mm wood screws per wheel as
shown. (Diagram F).
Carefully ip the storage drawer
over and place it on a soft surface
(such as a blanket or carpet).
Attach wheels with
four 20mm wood screws
per wheel as shown.
(Diagram J)
To use the trundle bed as a storage drawer, simply
remove the mattress, insert the wire retainers on both
sides of the trundle (Diagram G), and slide the drawer
divider down the grooves on the divider
into the wire retainers.
7
9
11 12
10
Have a question? Need a part ASAP? Call 1-800-589-7990 or email info@epochbydesign.com.
F
G
I
Insert and tighten the
20mm wood screws.
M
I
D
D
L
E
P
L
A
N
K
Note: Do not tighten any of the bolts until all of
them have been threaded at least part way.
H
J
Attach short end panels to the front and back panels with wooden
dowels. (Diagram H)Use 35mm bolts to tighten the short end
panels with the front and back panel (Diagram I).
Attach the short plank braces and short
middle plank brace to the trundle with
30mm wood screws.
Lay the bottom planks into the storage drawer.
The top side of the planks will
have countersunk holes for
the 20mm wood screws (L).
STORAGE DRAWER
01-Oct-2018
3/4
