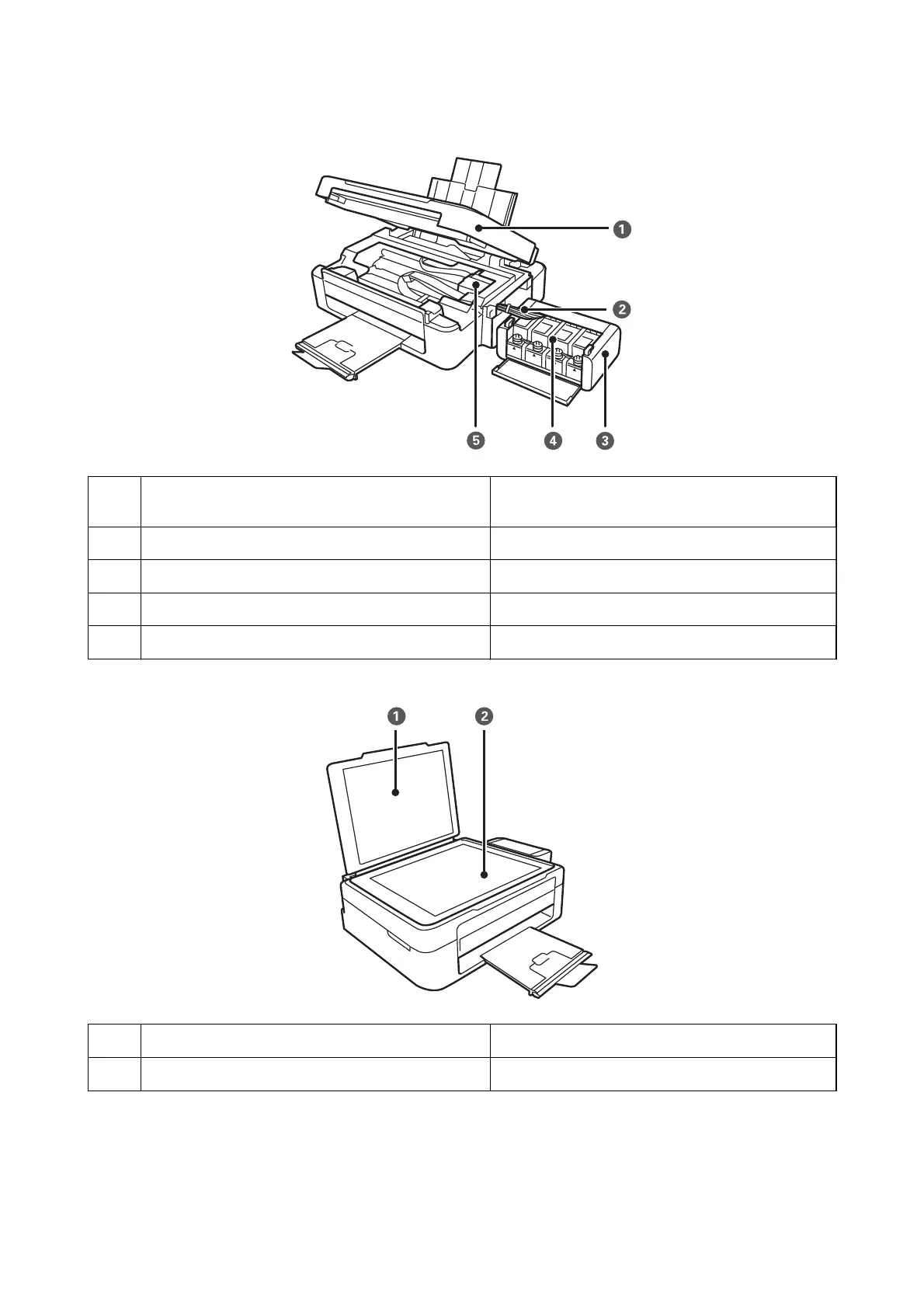

A
Scanner unit
Scans placed originals. Open when
removing jammed
paper inside t
he printer
.
B
Ink tube
Supplies
ink t
o the prin
t head
.
C
Ink tank unit
Contains the ink tanks.
D
Ink res
er
voir tanks (
Ink tank
s)
Suppl
ies ink to the
ink tube
s.
E
Print head
Fir
es ink.
A
Document cover
Blocks externa
l light while s
canning.
B
Scanner glass
Place the original
s.
User
's Gui
de
Print
er B
as
ics
11
10
12
Table of Contents
Default Chapter
4
Table of Contents
4
Trademarks
6
About this Manual
6
Introduction to the Manuals
6
Marks and Symbols
6
Descriptions Used in this Manual
6
Operating System References
7
Important Instructions
8
Safety Instructions
8
Printer Advisories and Warnings
8
Advisories and Warnings for Setting Up/Using the Printer
8
Printer Basics
10
Part Names and Functions
10
Buttons
12
Loading Paper
14
Paper Handling Precautions
14
Available Paper and Capacities
15
List of Paper Types
15
Loading Paper in the Rear Paper Feed
16
Placing Originals on the Scanner Glass
19
Printing
21
Printing from a Computer
21
Printing Basics - Windows
21
Printing Basics - Mac os X
22
Printing on 2-Sides (for Windows Only)
24
Printing Several Pages on One Sheet
25
Printing to Fit the Paper Size
26
Printing Multiple Files Together (for Windows Only)
27
Enlarged Printing and Making Posters (for Windows Only)
28
Printing Using Advanced Features
34
Printing a Reduced or Enlarged Document
35
Printing Watermark/Header/Footer
36
Printing Photos Using Epson Easy Photo Print
36
Canceling Printing
36
Canceling Printing - Printer Button
36
Canceling Printing - Windows
36
Canceling Printing - Mac os X
37
Copying
38
Copying Basics
38
Making Multiple Copies
38
Scanning
39
Scanning from the Control Panel
39
Scanning from a Computer
39
Scanning Basics
39
Scanning Using Advanced Features
42
Refilling Ink
45
Checking the Ink Levels - Tank
45
Ink Bottle Codes
45
Ink Bottle Handling Precautions
45
Refilling the Ink Tanks
46
Improving Print and Scan Quality
50
Checking and Cleaning the Print Head
50
Checking and Cleaning the Print Head - Printer Buttons
50
Checking and Cleaning the Print Head - Windows
51
Checking and Cleaning the Print Head - Mac os X
51
Replacing Ink Inside the Ink Tubes
52
Replacing Ink Inside the Ink Tubes - Windows
52
Replacing Ink Inside the Ink Tubes - Mac os X
52
Aligning the Print Head
53
Aligning the Print Head - Windows
53
Aligning the Print Head - Mac os X
53
Cleaning the Paper Path
53
Cleaning the Scanner Glass
54
Application Information
55
Necessary Applications
55
Windows Printer Driver
55
Mac os X Printer Driver
58
EPSON Scan (Scanner Driver)
61
Epson Event Manager
61
Epson Easy Photo Print
62
E-Web Print (for Windows Only)
62
EPSON Software Updater
62
Uninstalling Applications
63
Uninstalling Applications - Windows
63
Uninstalling Applications - Mac os X
63
Installing Applications
64
Updating Applications and Firmware
64
Solving Problems
66
Troubleshooting
66
Checking the Printer Status
66
Checking the Error Indicators on the Printer
66
Checking the Printer Status - Windows
67
Checking Printer Status - Mac os X
67
Removing Jammed Paper
67
Removing Jammed Paper from the Rear Paper Feed
68
Removing Jammed Paper from Inside the Printer
68
Paper Does Not Feed Correctly
70
Power and Control Panel Problems
70
Power Does Not Turn on
70
Power Does Not Turn off
70
Printer Does Not Print
70
Printout Problems
71
Print Quality Is Poor
71
Copy Quality Is Poor
72
An Image of the Reverse Side of the Original Appears in the Copied Image
73
The Position, Size, or Margins of the Printout Are Incorrect
73
Paper Is Smeared or Scuffed
73
Printed Characters Are Incorrect or Garbled
74
The Printed Image Is Inverted
74
The Printout Problem Could Not be Cleared
74
Other Printing Problems
74
Printing Is too Slow
74
Printing Slows down Dramatically During Continuous Printing
75
Cannot Start Scanning
75
Cannot Start Scanning When Using the Control Panel
76
Scanned Image Problems
76
Scan Quality Is Poor
76
Characters Are Blurred
76
An Image of the Reverse Side of the Original Appears in the Scanned Image
77
Moire (Cross-Hatch) Patterns Appear in the Scanned Image
77
Scanning Area or Direction Is Not Correct
77
The Scanned Image Problem Could Not be Cleared
77
Other Scanning Problems
78
Cannot Scan in Full Auto Mode in EPSON Scan
78
Thumbnail Preview Does Not Work Properly
78
Scanning Is too Slow
78
Scanning Stops When Scanning to Pdf/Multi-TIFF
78
Other Problems
78
Slight Electric Shock When Touching the Printer
78
Operation Sounds Are Loud
78
Application Is Blocked by a Firewall (for Windows Only)
79
Appendix
80
Technical Specifications
80
Printer Specifications
80
Scanner Specifications
80
Interface Specifications
81
Dimensions
81
Electrical Specifications
81
Environmental Specifications
82
System Requirements
82
Regulatory Information
83
Standards and Approvals for European Model
83
Restrictions on Copying
83
Checking the Total Number of Pages Fed through the Printer
83
Checking the Total Number of Pages Fed through the Printer - Control Panel
83
Checking the Total Number of Pages Fed through the Printer - Windows
84
Checking the Total Number of Pages Fed through the Printer - Mac os X
84
Saving Power
84
Saving Power - Windows
84
Saving Power - Mac os X
84
Transporting the Printer
85
Where to Get Help
87
Technical Support Web Site
87
Contacting Epson Support
87
Help for Users in Europe
88
Help for Users in Taiwan
88
Help for Users in Singapore
89
Help for Users in Thailand
89
Help for Users in Vietnam
90
Help for Users in Indonesia
90
Help for Users in Hong Kong
91
Help for Users in Malaysia
91
Help for Users in India
92
Help for Users in the Philippines
92
