6 DM-D310F User’s Manual

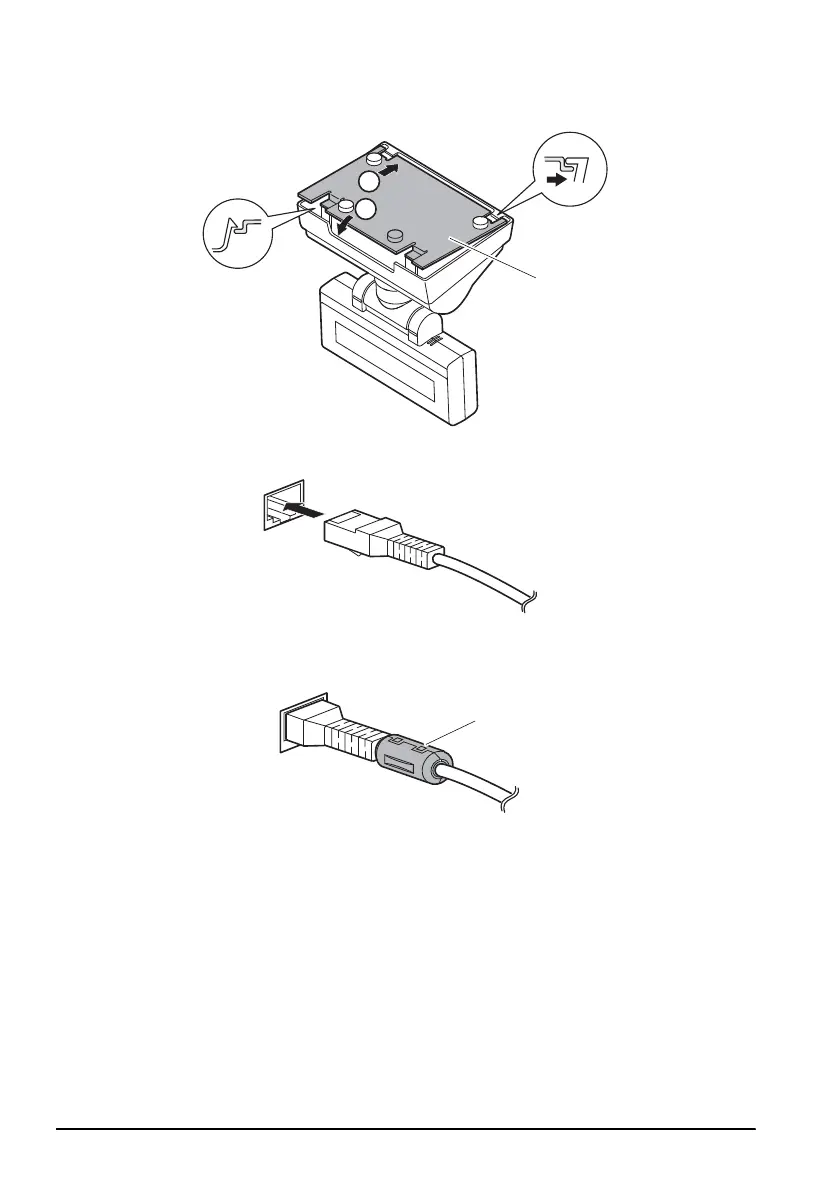

4. Attach the base plate to the DM-D stand following the numbered arrows
shown below, and push the base plate until it is locked by the hooks on the
DM-D stand.
5. Connect the cable of the DM-D310F to the connector on the TM printer.
6. Attach the ferrite core (small) to the cable of the DM-D310F at the position
shown below.
1
2
Base plate
Ferrite core (small)
