Epson DS-510 - Page 60

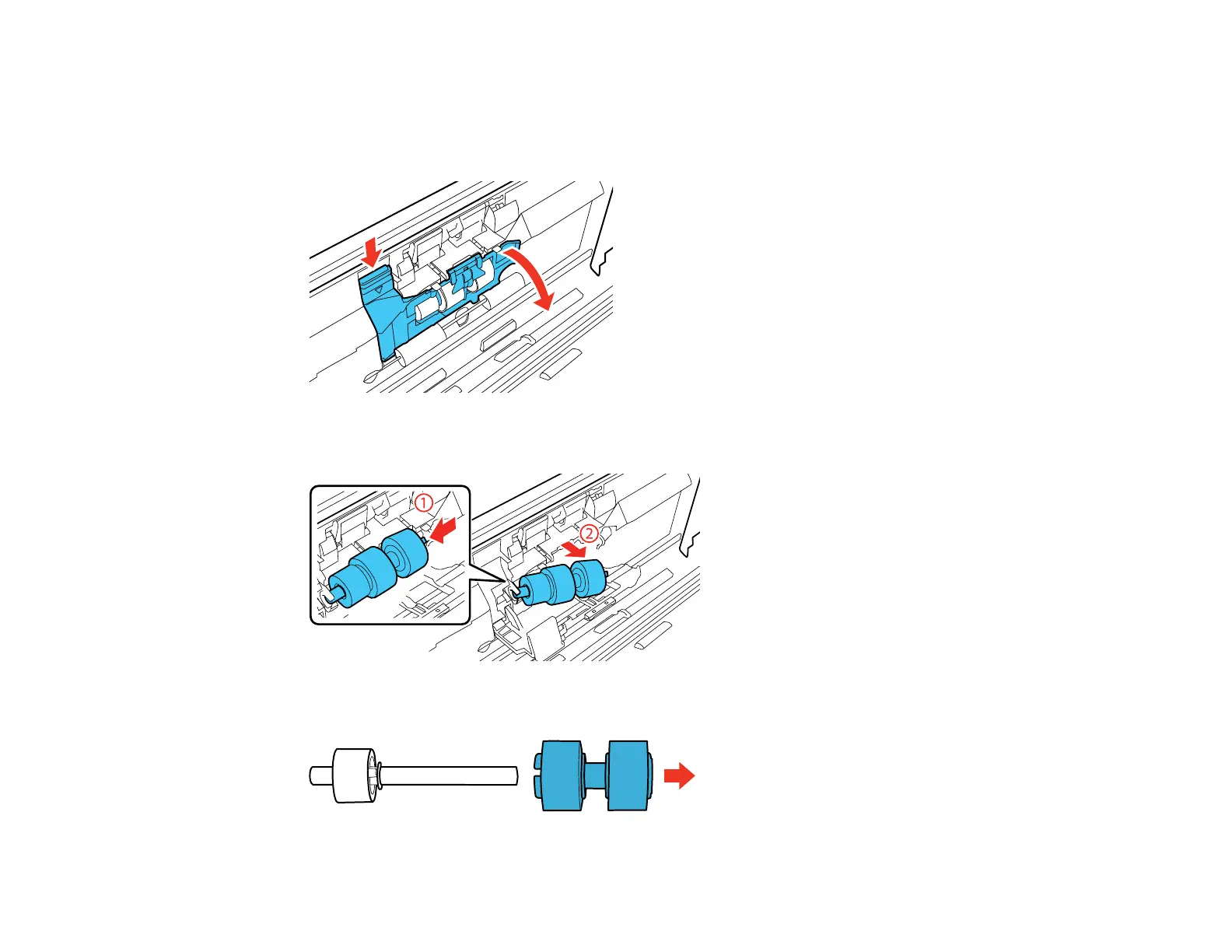

10. Press down on the separation roller cover latch inside the scanner cover and pull down the cover to
open it.
Caution: Be careful not to apply too much force when opening the cover.
11. Slide the separation roller to the side, then remove it.
12. Pull the release tab on the separation roller and remove it from the spindle.
60
