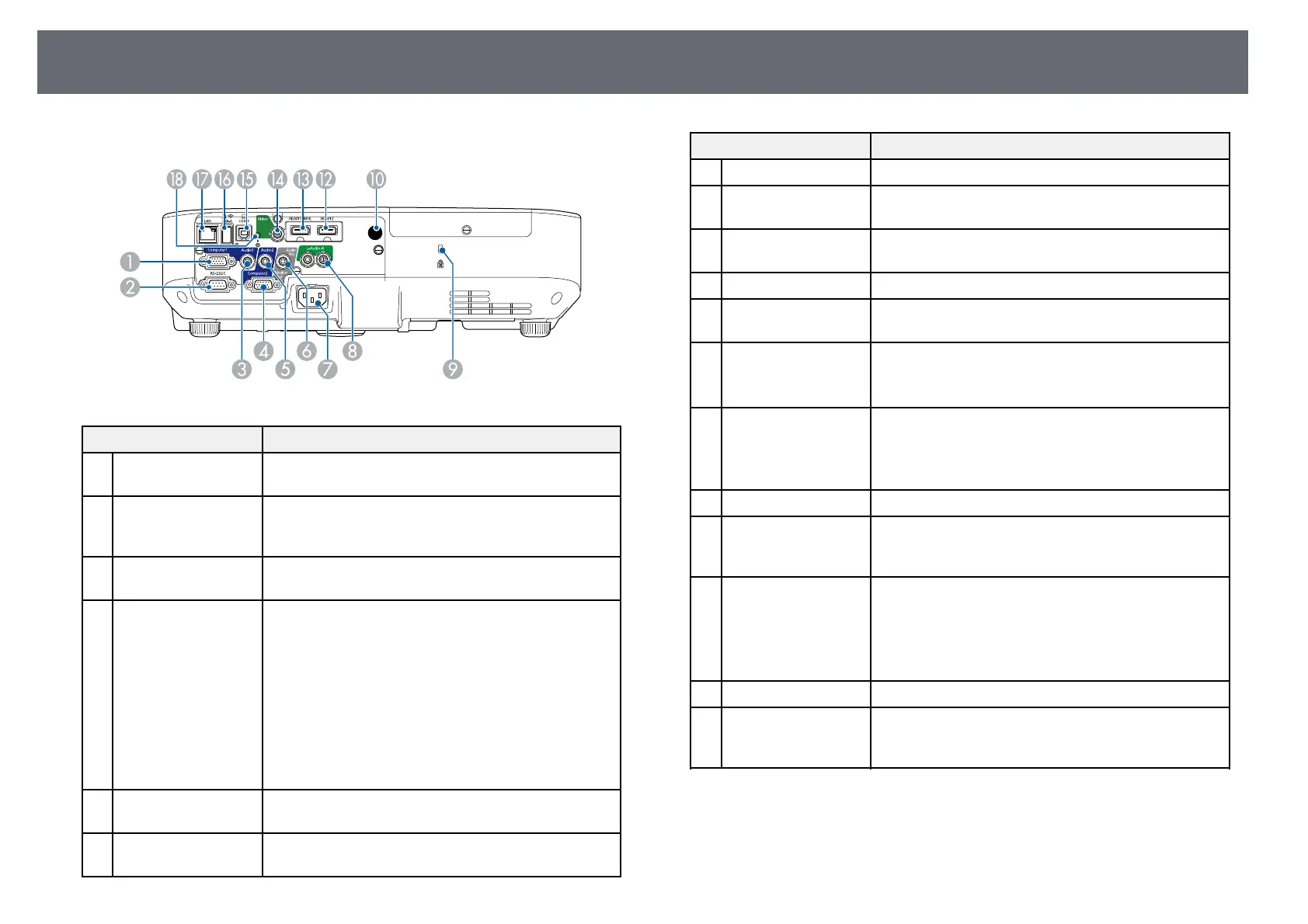

Projector Parts and Functions
15
EB-2140W/EB-2040
Name Function
A
Computer1 port Inputs image signals from a computer and component
video signals from other video sources.
B
RS-232C port Connects an RS-232C cable to control the projector
from a computer. (You do not need to use this port
normally.)
C
Audio 1 port Inputs audio from equipment connected to the
Computer1 port.
D
Computer2/Monitor
Out port
When Monitor Out Port is set to Monitor Out in the
projector's Extended menu, analog RGB signals input
from the Computer1 port are output to an external
monitor. You cannot output signals input from other
ports or component video signals.
When Monitor Out Port is set to Computer2 in the
projector's Extended menu, image signals from a
computer and component video signals from other
video sources are input.
s Extended > Operation > Monitor Out Port
E
Audio 2 port Inputs audio from equipment connected to the
Computer2 port.
F
Audio Out port Outputs audio from the current input source to an
external speaker.
Name Function
G
Power inlet Connects the power cord to the projector.
H
L-Audio-R ports Inputs audio from equipment connected to the Video
port.
I
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
J
Remote receiver Receives signals from the remote control.
K
HDBaseT port (EB-
2265U/EB-2165W)
Connects a LAN cable to the optional HDBaseT
Transmitter.
L
HDMI2 port Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.
M
HDMI1/MHL port Inputs video signals from HDMI compatible video
equipment and computers, or MHL (Mobile High-
Definition Link) compatible mobile devices.
This projector is compatible with HDCP.
N
Video port Inputs composite video signals from video sources.
O
USB-B port Connects a USB cable to the computer to project
computer images, to use the Wireless Mouse function,
or to use the Gesture Presenter feature.
P
USB-A port Connects a USB memory device or a digital camera
and projects PDFs, movies, or images using PC Free.
Connects the optional Document Camera.
Connects the wireless LAN module (EB-2140W/EB-
2040).
Q
LAN port Connects a LAN cable to connect to a network.
R
Wireless LAN module
fixing screw (EB-
2140W/EB-2040)
Secures the wireless LAN module cover.
gg Related Links
• "Using the Remote Control as a Wireless Mouse" p.84
• "Installing a Security Cable" p.98
• "Projecting a PC Free Presentation" p.71
