Projector Parts and Functions
15
gg Related Links
• "Installing a Security Cable" p.84

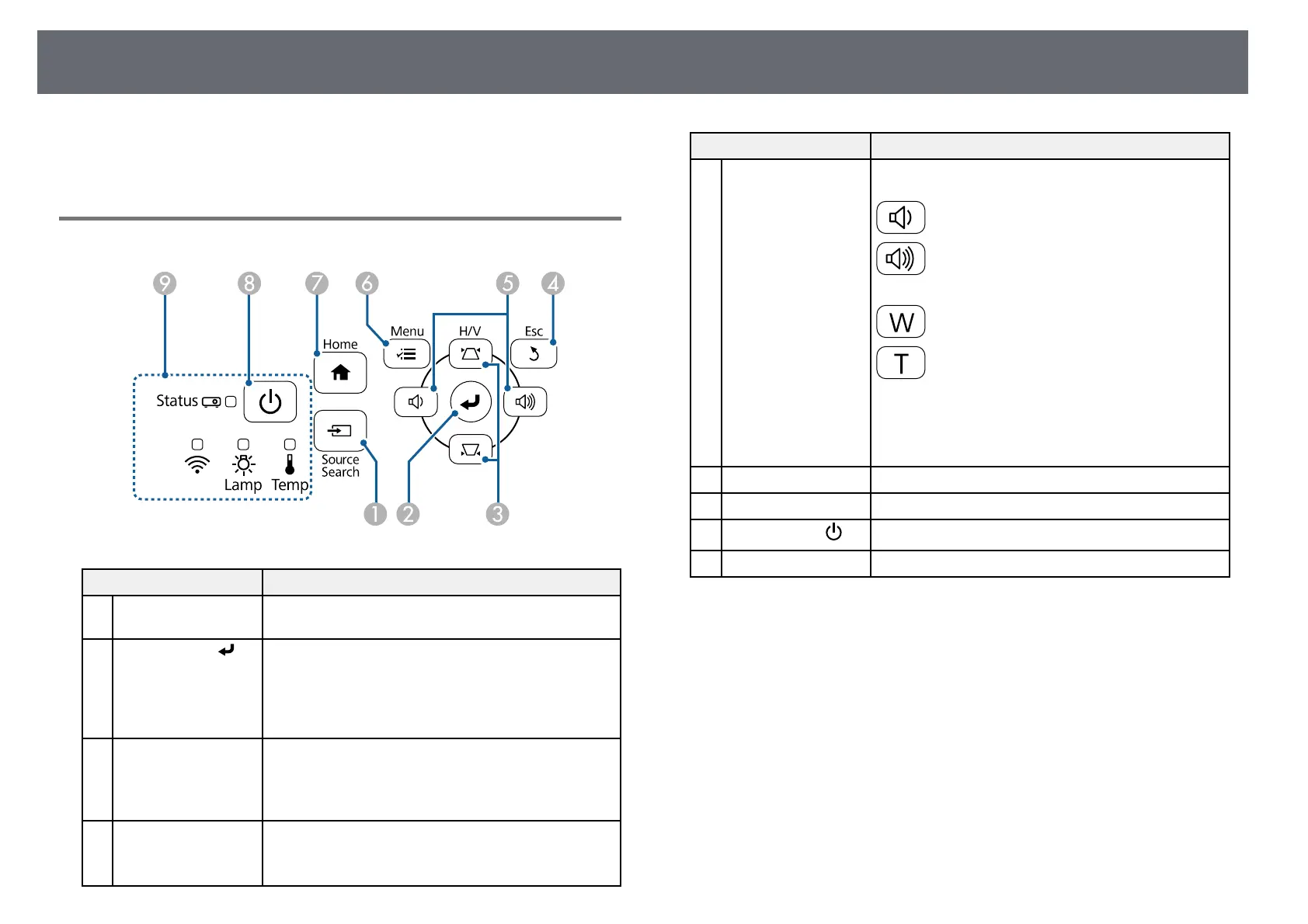

Projector Parts - Control Panel
Name Function
A
[Source Search]
button
Switches to the next input source.
B
[Enter] button [ ] Enters the current selection and moves to the next level
while displaying the projector's menu or help.
Optimizes Tracking, Sync., and Position in the
projector's Signal menu while projecting an analog
RGB signal from the Computer port.
C
Keystone adjustment
buttons and arrow
buttons
Displays the Keystone screen allowing you to correct
keystone distortion.
Selects menu items while displaying the projector's
menu or help.
D
[Esc] button Stops the current function.
Moves back to the previous menu level while
displaying the projector's menu.
Name Function
E
Volume buttons and
arrow buttons
Wide/Tele buttons
EB‑‑2247U/EB‑‑2142W/EB‑‑2042/EB‑‑990U/EB‑‑980W/E
B‑‑970/EB‑‑109W/EB‑‑108/EB‑‑107/EB‑‑W39/EB‑‑X39:
: Decreases the volume.
: Increases the volume.
EB‑‑S39:
: Enlarges the size of the projected image.
: Reduces the size of the projected image.
Corrects keystone distortion in the horizontal direction
when the Keystone screen is displayed.
Selects menu items while displaying the projector's
menu or help.
F
[Menu] button Displays and closes the projector's menu.
G
[Home] button Displays and closes the Home screen.
H
Power button [ ]
Turns the projector on or off.
I
Indicators Indicates the projector's status.
gg Related Links
• "Input Signal Settings - Signal Menu" p.127
• "Home Screen" p.35
• "Projector Indicator Status" p.167
• "Correcting the Image Shape with the Keystone Buttons" p.45
• "Resizing the Image with the Buttons" p.50
