The illustrations in this guide are for projectors with the standard zoom
lens ELPLS07.

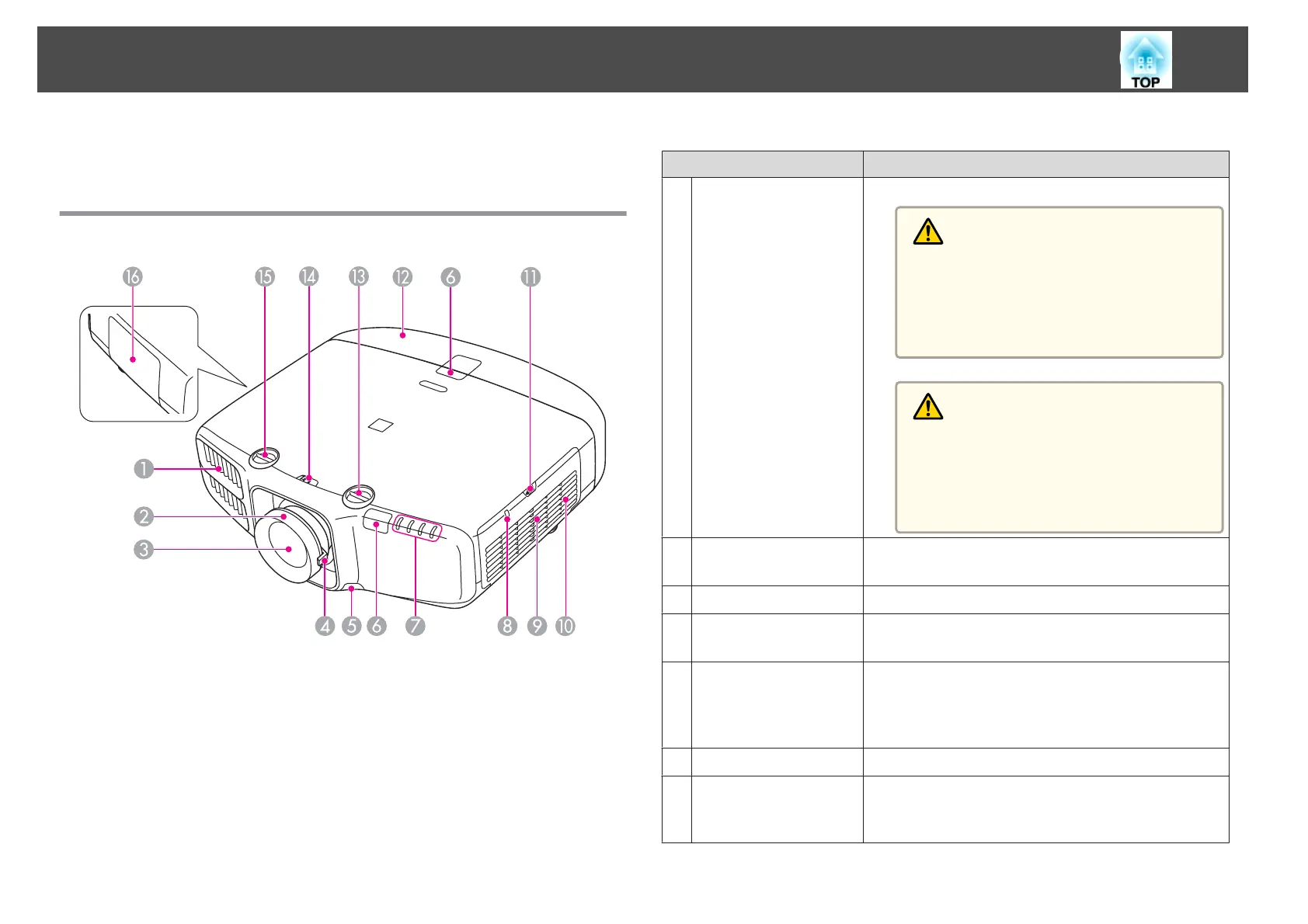

Front/Top
Name Function
A
Air exhaust vent
Exhaust vent for air used to cool the projector internally.
Warning
Do not look into the vents. If the lamp explodes,
gases may escape and small fragments of glass may
be scattered which could cause an injury. Contact
a doctor if any fragments of broken glass are in‐
haled or get into the eyes or mouth.
Caution
While projecting, do not put your face or hands
near the air exhaust vent, and do not place objects
that may become warped or damaged by heat near
the vent. Hot air from the air exhaust vent could
cause burns, warping, or accidents to occur.
B
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.32
C
Projection lens
Images are projected through here.
D
Zoom ring
Adjusts the image size.
s "Adjusting the Image Size" p.32
E
Lens unit removal
button
When replacing the lens unit, press this button and then
remove the lens unit.
s "Removing and Attaching the Projector Lens Unit"
p.24
F
Remote receiver
Receives signals from the remote control.
G
Status indicators
The color of the indicators and whether they are flashing
or lit indicate the status of the projector.
s "Reading the Indicators" p.122
Part Names and Functions
13
