Epson EB-S11H User Manual

Name Function
E
RS-232C port
When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.52
F
Security slot
The Security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.51
G
Lamp Cover Fixing
Screw
Screw to fix the lamp cover in place.
H
HDMI port (EB-X15
only)
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Equipment" p.20
I
Computer2 port
Inputs image signals from a computer and component
video signals from other video sources.
J
Computer1 port
Inputs image signals from a computer and component
video signals from other video sources.
K
USB(TypeB) port
• Connects the projector to a computer via the USB cable,
and the image on the computer is projected.
s
"Projecting with USB Display" p.28
• Also use this port to connect to a computer via the USB
cable to use the Wireless Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.45
L
Audio Output port
Outputs the sound of the image currently being projected
to external speakers.
M
S-Video port
For S-video signals from video sources.
N
Monitor Out port
(EB-X14H/EB-X11H/
EB-S11H only)
Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.

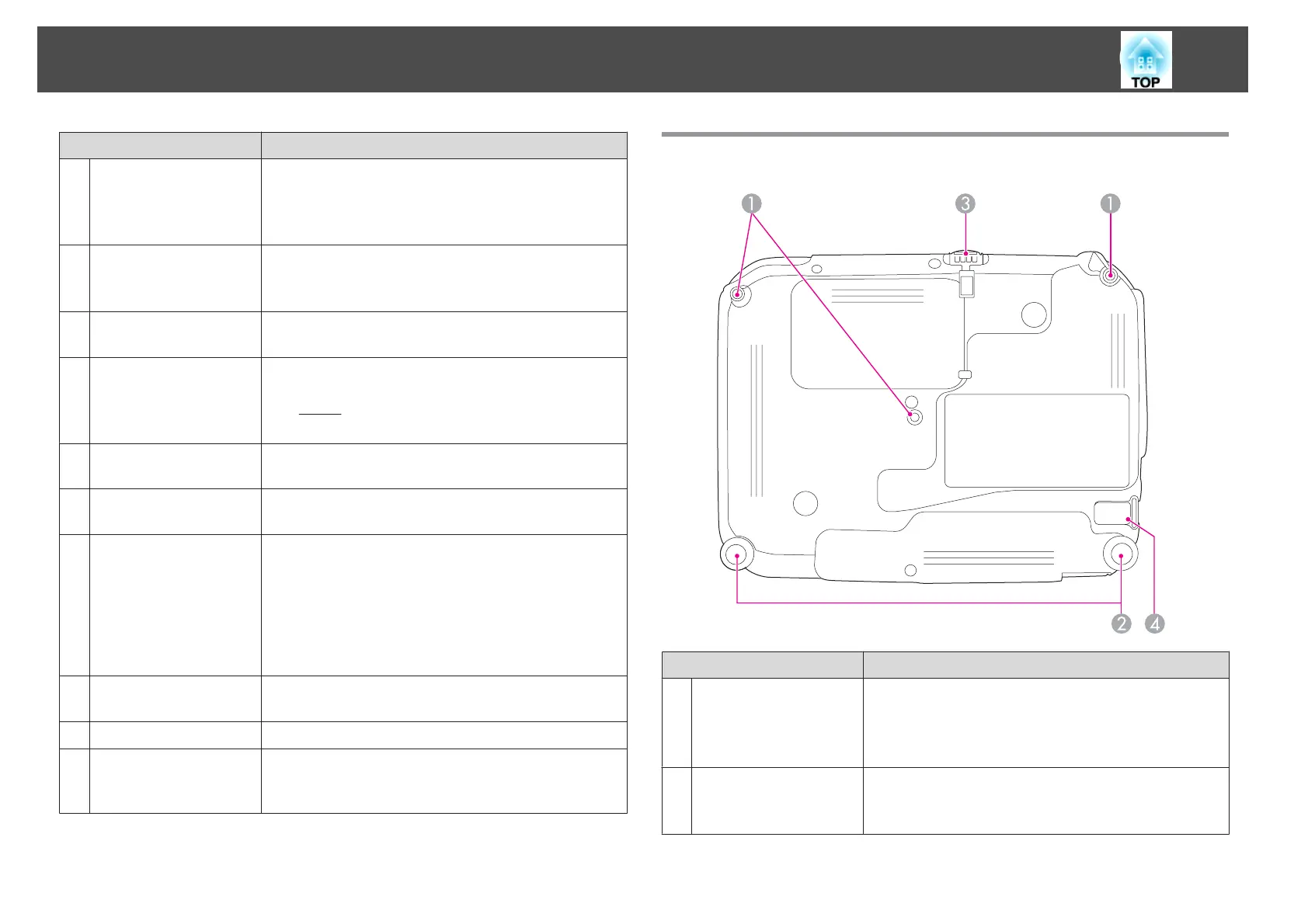

Base
Name Function
A
Ceiling mount fixing
points (three points)
Attach the optional Ceiling Mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.18
s "Optional Accessories" p.87
B
Rear feet
When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s "Adjusting the Horizontal Tilt" p.37
Part Names and Functions
11
