 Replacing it with a good Optical Engine
5. Replace the Optical Engine and reassemble it until the projector can be
powered on correctly.
 Turning on the projector
6. Turn the projector ON.
 Connect the projector to the PC
7. Connect the projector to the PC using an RS-232C cable.
 Writing the DR data
8. Start up the CAT.
9. Select the group from [SETUP] - [SELECT MODEL] menu, by referring to
the number; *** and sax, that can be found in a file name;
“H***_xx_yyy_zzzzz_zzzzzz_zzzzzz.bin” of supplied DR data.

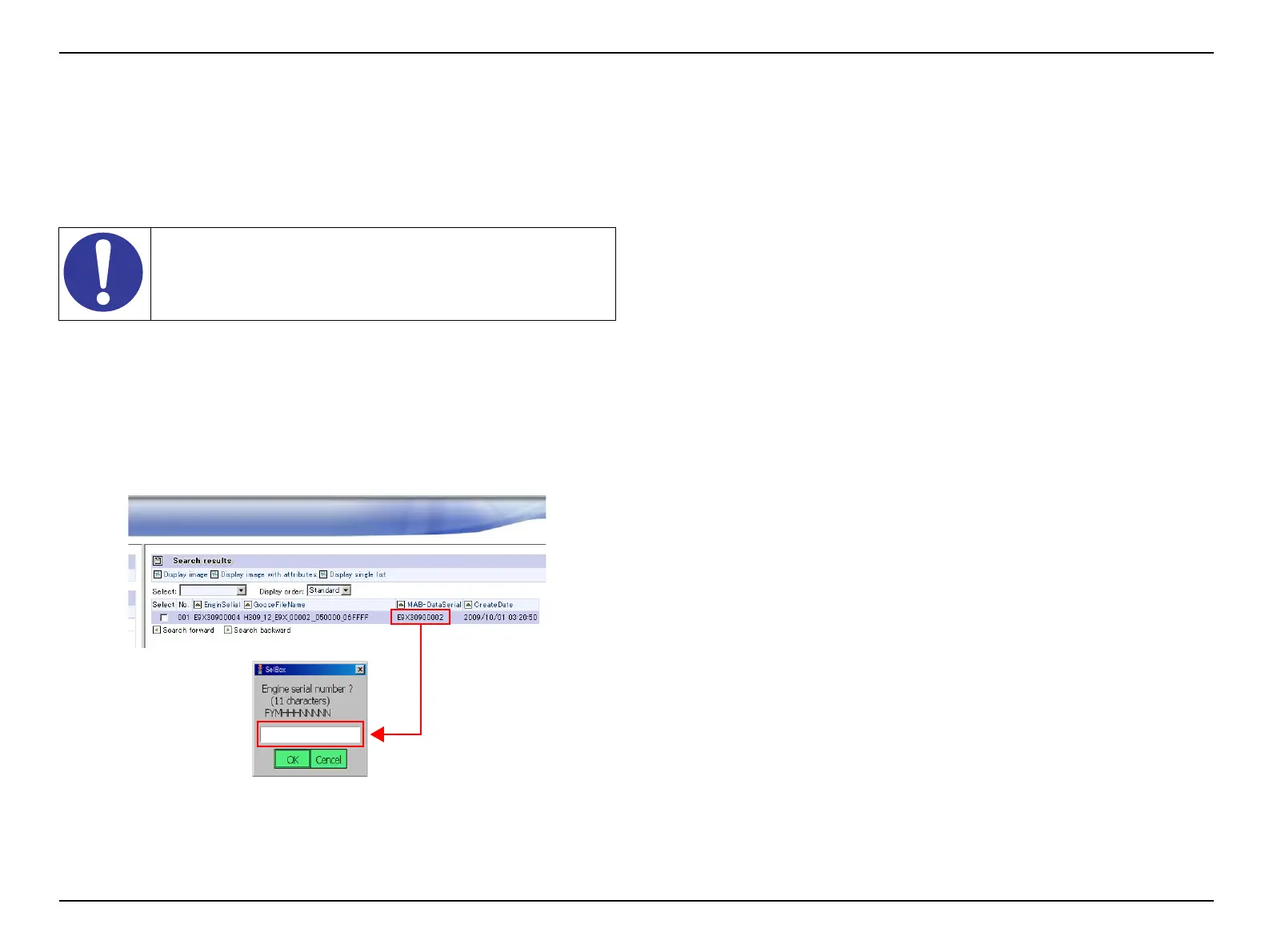

10. Enter serial number (11digits) that has been displayed in “MAB-DataSerial”
column as a result of retrieval. Execute RESTORE.
 Image/Operation check
11. Restart the projector (Power OFF - Power ON) once, and confirm there is no
problem in the projected image and operation.
Refer to the user’s manual for communication configuration.

Epson EB-S12 Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	0.58 - 8.89 m
Projection technology	3LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2240 ANSI lumens
Full HD	No
Video color modes	Blackboard, Dynamic, Photo, Presentation, Sports, sRGB, Theatre, Whiteboard
Analog signal format system	NTSC, PAL, SECAM
Focus	Manual
Throw ratio	1.45 - 1.96:1
Focal length range	- mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
HDMI ports quantity	-
USB 2.0 ports quantity	2
S-Video inputs quantity	0
Noise level	37 dB
Noise level (economic mode)	29 dB
Placement	Ceiling
Product type	Ceiling-mounted projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
