Epson EB-S12 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 67 Revision C
3.3.5.1 SW Board
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the three screws and remove the SW Board.
5. Disconnect the Shutter Switch cable from the SW Board.
6. Remove the SW Cable.
7. Remove the two screws and remove the SW Button.
8. Remove the following parts from the Upper Case (assembly).
•LED Lens
• SW Selection Button

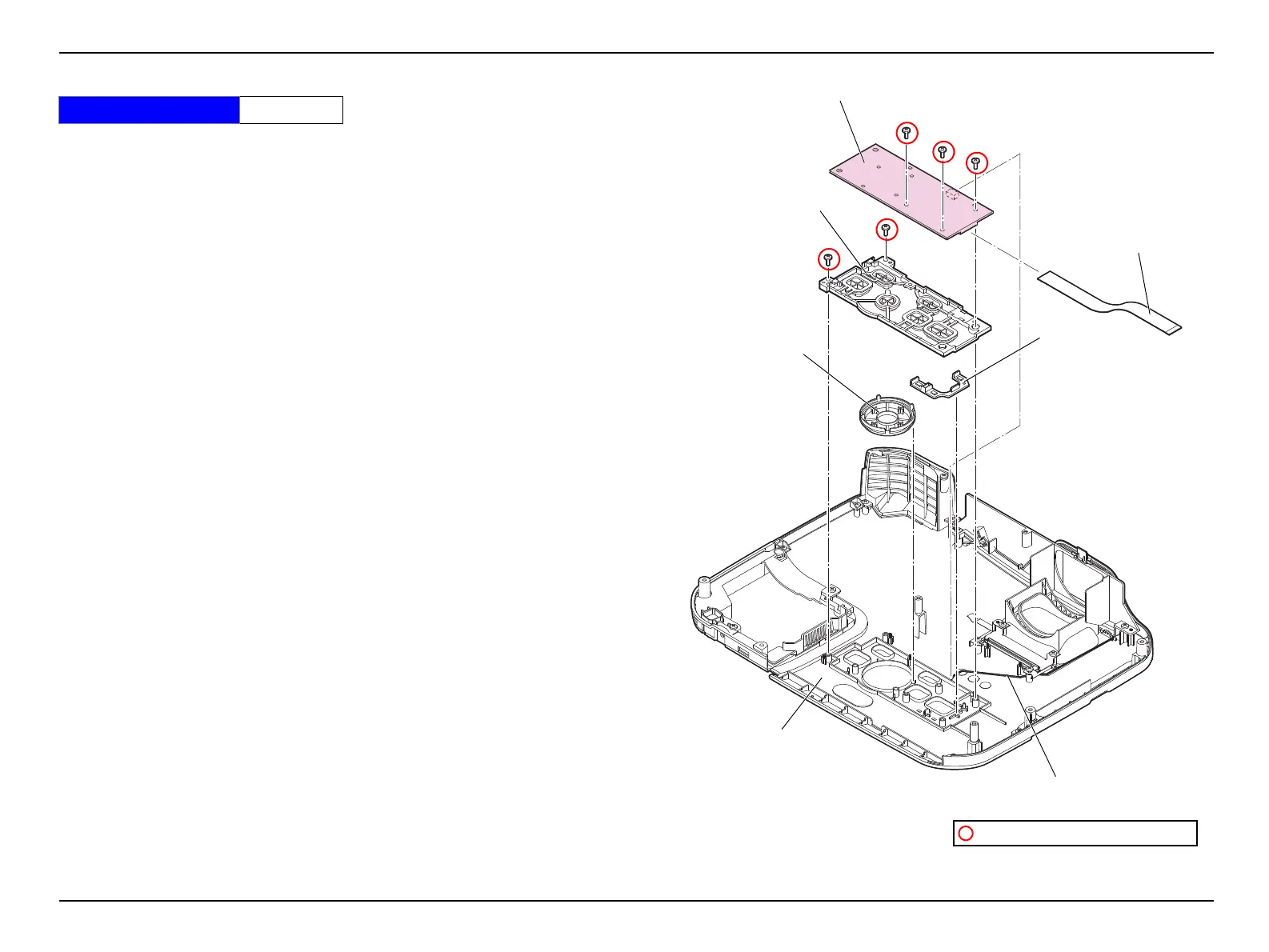

Figure 3-9.
Standard Operation Time 5 Min.
C.B.P-TITE SCREW,2.5X6,F/ZN-3C
LED Lens
SW Cable
SW Board
Shutter Switch
Upper Case (assembly)
SW Selection Button
SW Button

Epson EB-S12 Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	0.58 - 8.89 m
Projection technology	3LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2240 ANSI lumens
Full HD	No
Video color modes	Blackboard, Dynamic, Photo, Presentation, Sports, sRGB, Theatre, Whiteboard
Analog signal format system	NTSC, PAL, SECAM
Focus	Manual
Throw ratio	1.45 - 1.96:1
Focal length range	- mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
HDMI ports quantity	-
USB 2.0 ports quantity	2
S-Video inputs quantity	0
Noise level	37 dB
Noise level (economic mode)	29 dB
Placement	Ceiling
Product type	Ceiling-mounted projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
