Epson EB-S12 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Maintenance CONFIDENTIAL
SEIKO EPSON 127 Revision C

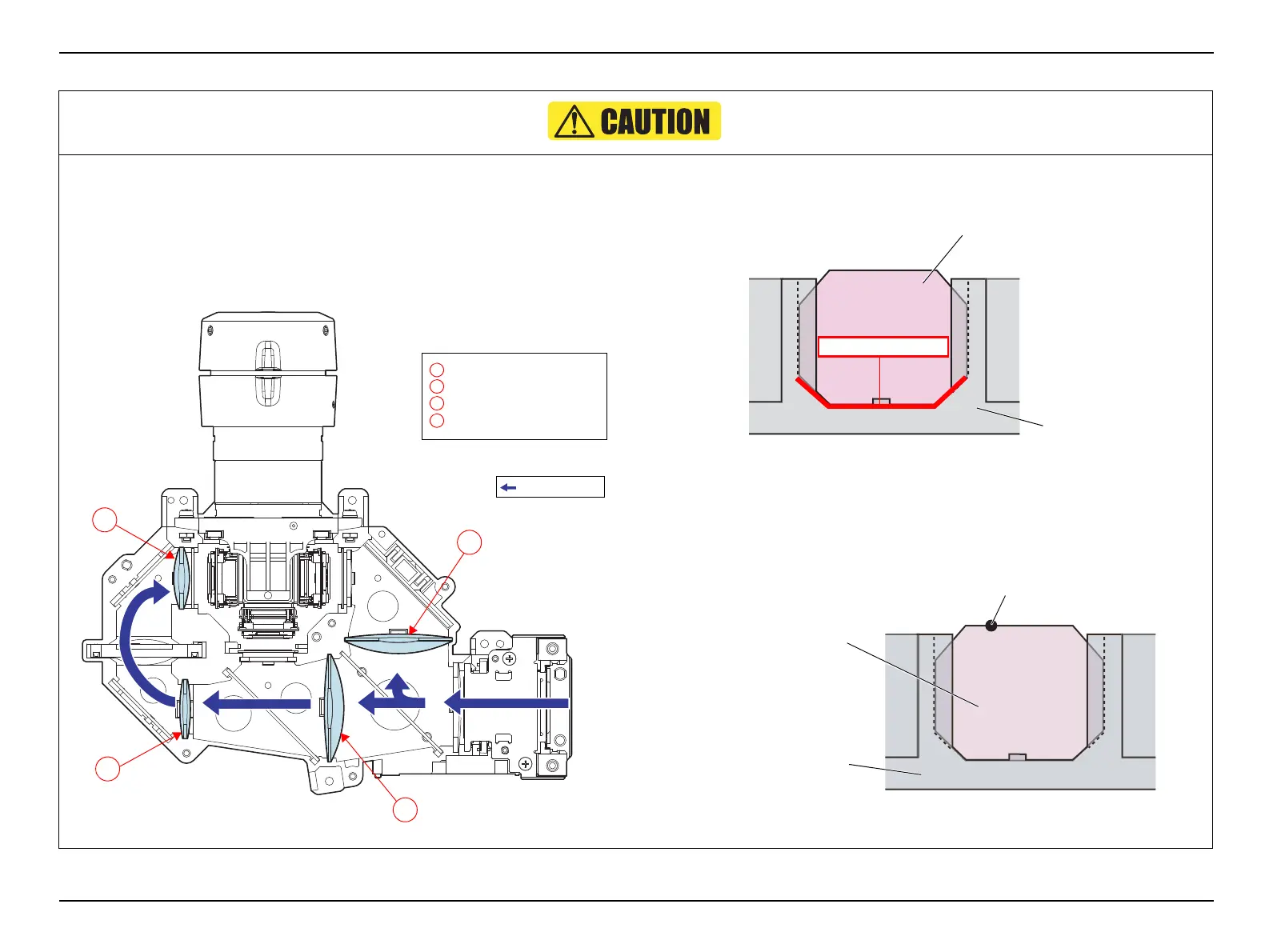

 When installing the CONDENSER LENS;D/FB/FG2/R, attach the condenser
lenses with their convex side facing the incidence side as shown below.
Figure 4-11.
 Insert the CONDENSER LENS; D/FB/FG2/R without any gap between the
bottom of them and the LIGHT GUIDE,LOWER.
Figure 4-12.
 Install the CONDENSER LENS;FB
with its black marking on the top left as
seen from the incidence side.
Figure 4-13.
C
CONDENSER LENS;FG2
D
A
B
C
Light path
A
B
D
CONDENSER LENS;D
CONDENSER LENS;FB
CONDENSER LENS;R
Condenser lens
LIGHT GUIDE,LOWER
No gap in between
Black Marking
CONDENSER LENS;FB
LIGHT GUIDE,LOWER

Epson EB-S12 Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	0.58 - 8.89 m
Projection technology	3LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2240 ANSI lumens
Full HD	No
Video color modes	Blackboard, Dynamic, Photo, Presentation, Sports, sRGB, Theatre, Whiteboard
Analog signal format system	NTSC, PAL, SECAM
Focus	Manual
Throw ratio	1.45 - 1.96:1
Focal length range	- mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
HDMI ports quantity	-
USB 2.0 ports quantity	2
S-Video inputs quantity	0
Noise level	37 dB
Noise level (economic mode)	29 dB
Placement	Ceiling
Product type	Ceiling-mounted projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
