EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Maintenance CONFIDENTIAL
SEIKO EPSON 130 Revision C

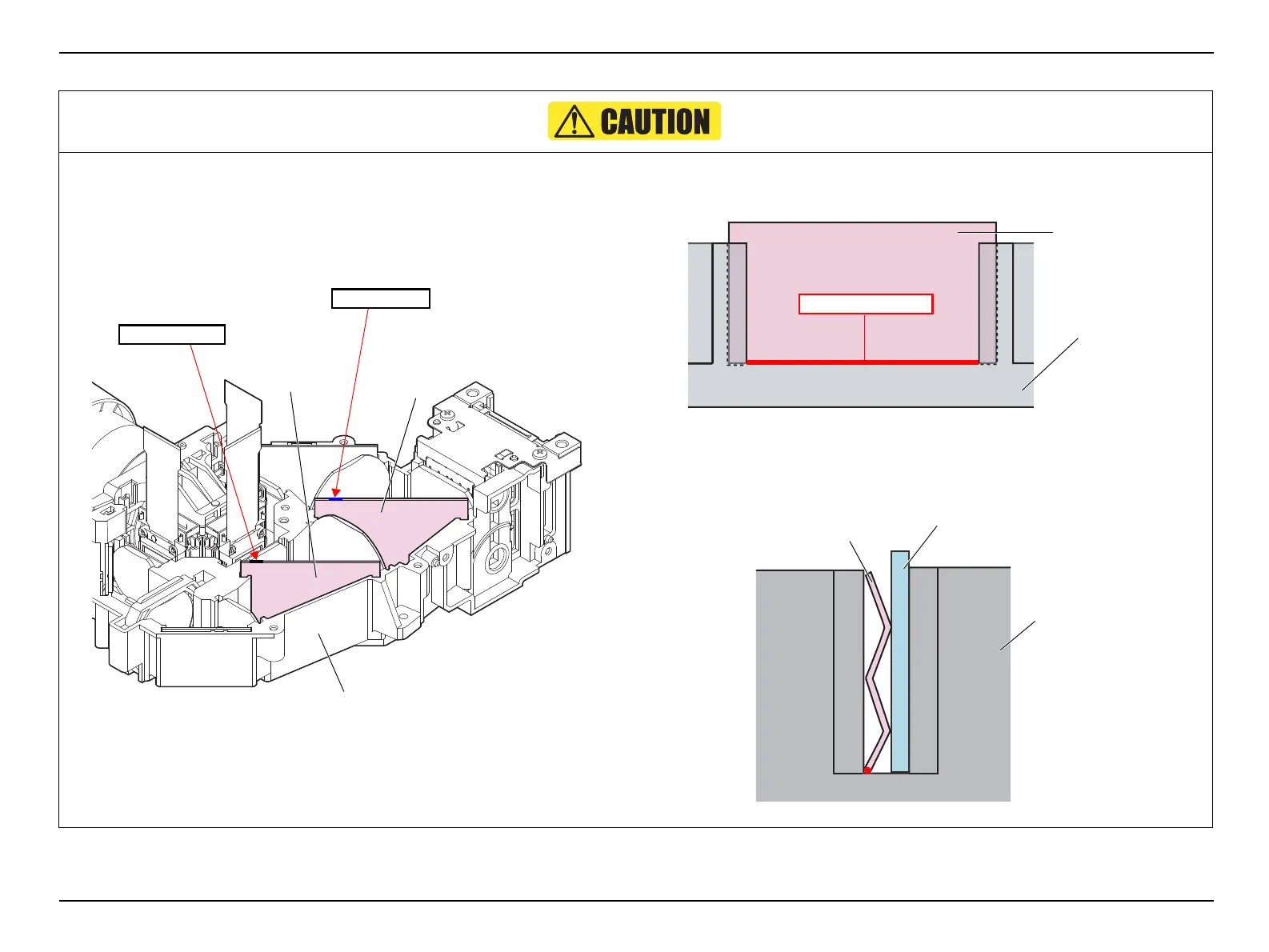

When reassembling the BDM/GDM, take care in the following instructions.
1. Install the BDM/GDM into the engine with their markings coming on the top
right as seen from the incidence side.
Figure 4-17.
2. Insert the BDM/GDM without any gap between the bottom of them and the
LIGHT GUIDE,LOWER.
Figure 4-18.
3. Insert the springs without any gap between the bottom and the LIGHT
GUIDE,LOWER to secure the
BDM/GDM
Figure 4-19.
LIGHT GUIDE,LOWER
GDM
Blue Marking
Black Marking
BDM
BDM/GDM
No gap in between
LIGHT GUIDE,LOWER
Spring,Mirror Fixing,FIF
BDM/GDM
LIGHT GUIDE,LOWER

Epson EB-S12 Specifications

General

Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	0.58 - 8.89 m
Projection technology	3LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	2240 ANSI lumens
Full HD	No
Video color modes	Blackboard, Dynamic, Photo, Presentation, Sports, sRGB, Theatre, Whiteboard
Analog signal format system	NTSC, PAL, SECAM
Focus	Manual
Throw ratio	1.45 - 1.96:1
Focal length range	- mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
HDMI ports quantity	-
USB 2.0 ports quantity	2
S-Video inputs quantity	0
Noise level	37 dB
Noise level (economic mode)	29 dB
Placement	Ceiling
Product type	Ceiling-mounted projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
