Air Filter and Vent Maintenance

162

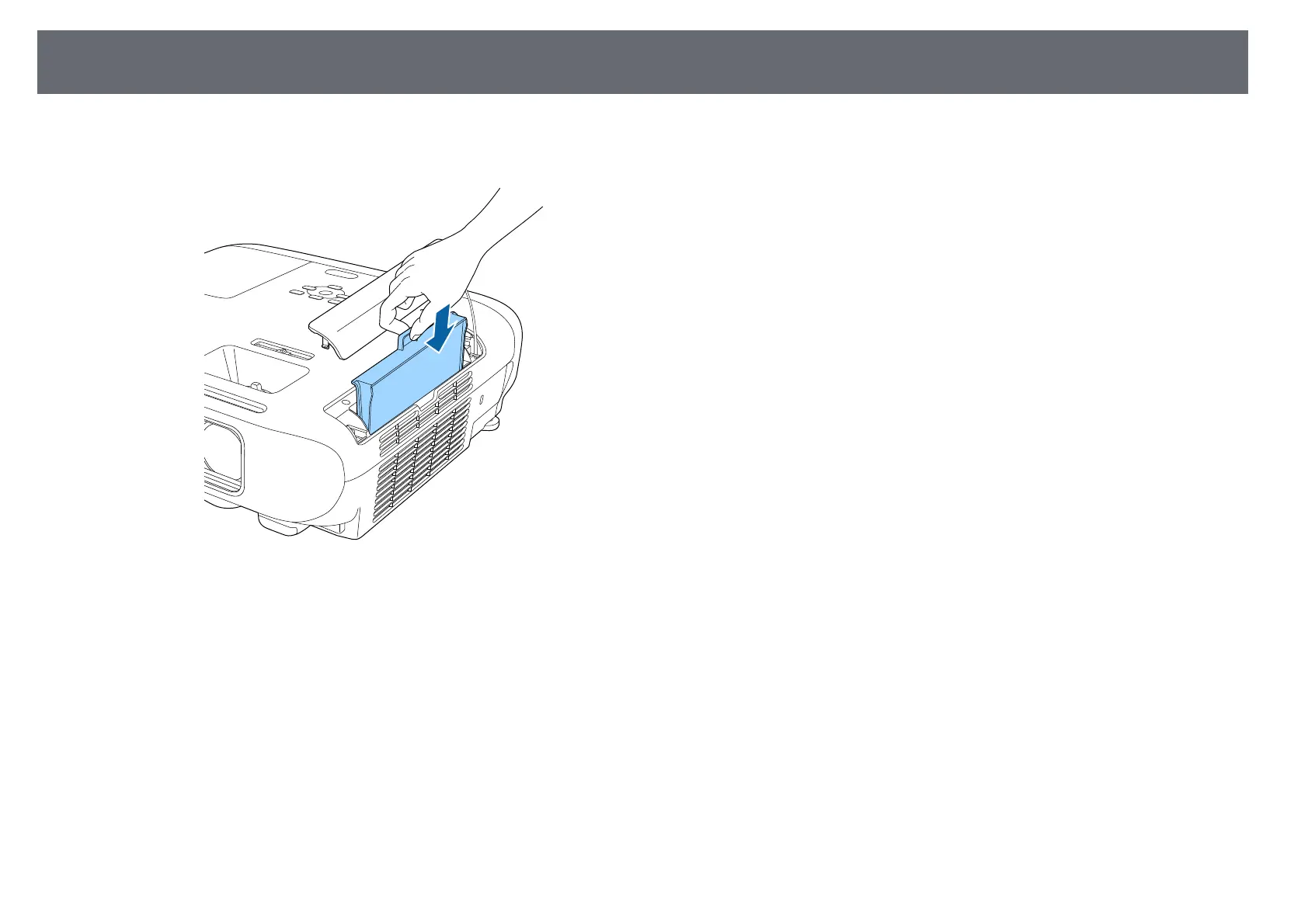

Place the new air filter in the projector as shown and push gently until

it clicks into place.

Close the air filter cover.

gg Related Links

• "Replacement Parts" p.185
