Projector Parts and Functions
18
Name Function
K
Security slot The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
L
Control panel Operates the projector.
M
Zoom ring Adjusts the image size.
N
Focus ring Adjusts the image focus.
The shape may vary depending on the model of your
projector.
O
Lamp cover Open to access the projector's lamp.
gg Related Links
• "Projector Indicator Status" p.169
• "List of Functions" p.10
• "Resizing the Image with the Zoom Ring" p.54
• "Focusing the Image Using the Focus Ring" p.55
• "Correcting the Image Shape with the Horizontal Keystone Slider" p.50

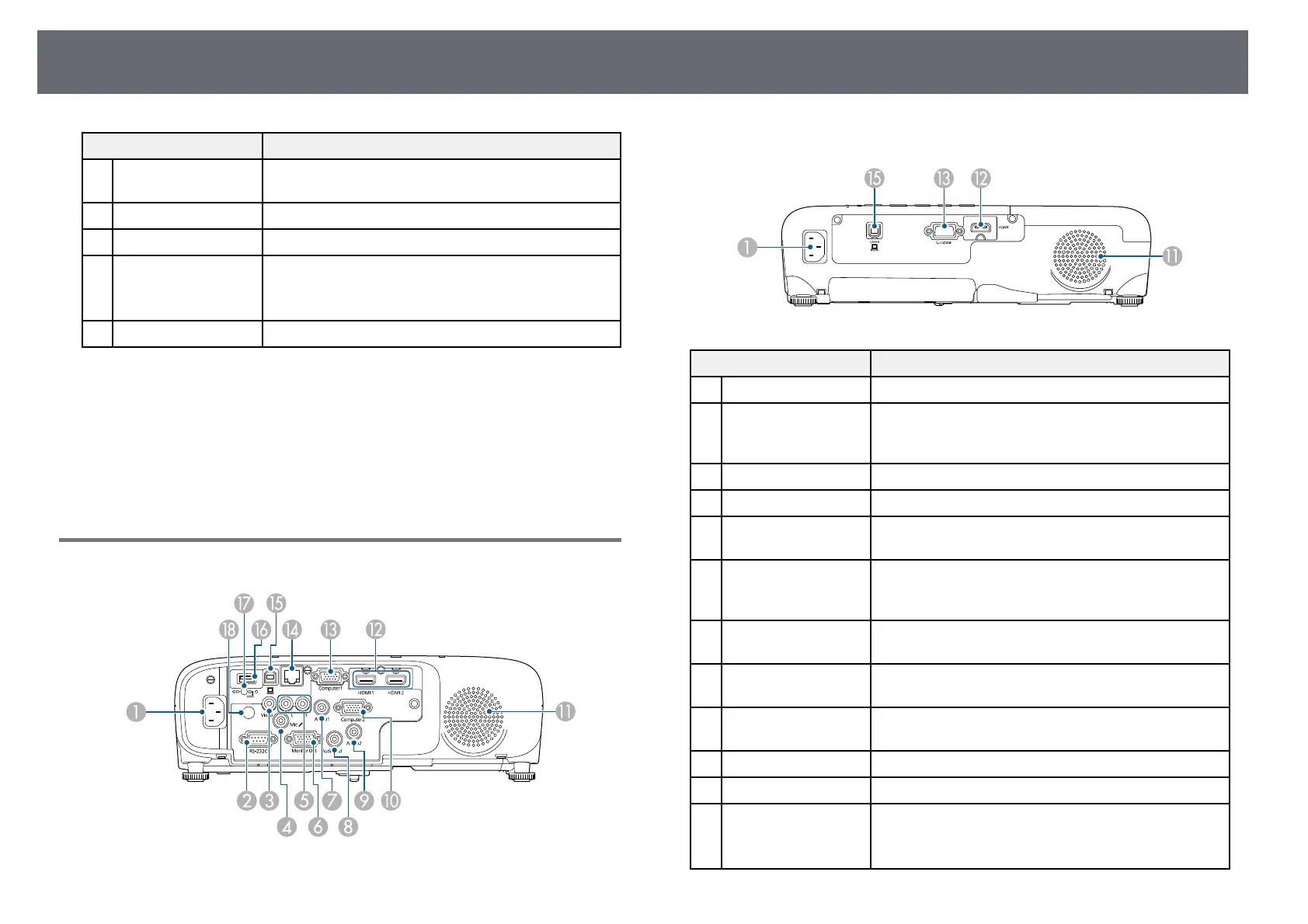

Projector Parts - Rear
EB‑‑E01/VS260
Name Function
A
Power inlet Connects the power cord to the projector.
B
RS-232C port Connects an RS-232C cable to control the projector
from a computer. (You do not need to use this port
normally.)
C
Video port Inputs composite video signals from video sources.
D
Mic port Inputs audio from the microphone.
E
L-Audio-R ports Inputs audio from equipment connected to the Video
port.
F
Monitor Out port Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports.
G
Audio 1 port Inputs audio from equipment connected to the
Computer1 port.
H
Audio Out port Outputs audio from the current input source or Mic
port to an external speaker.
I
Audio 2 port Inputs audio from equipment connected to the
Computer2 port.
J
Computer2 port Inputs image signals from a computer.
K
Speaker Outputs audio.
L
HDMI1, HDMI2
ports
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers.
This projector is compatible with HDCP.
To Next Page
