Epson EB-X12

To Next Page

To Previous Page

Name Function

Lamp cover

Open when replacing the projector's lamp.

s "Replacing the Lamp" p.91

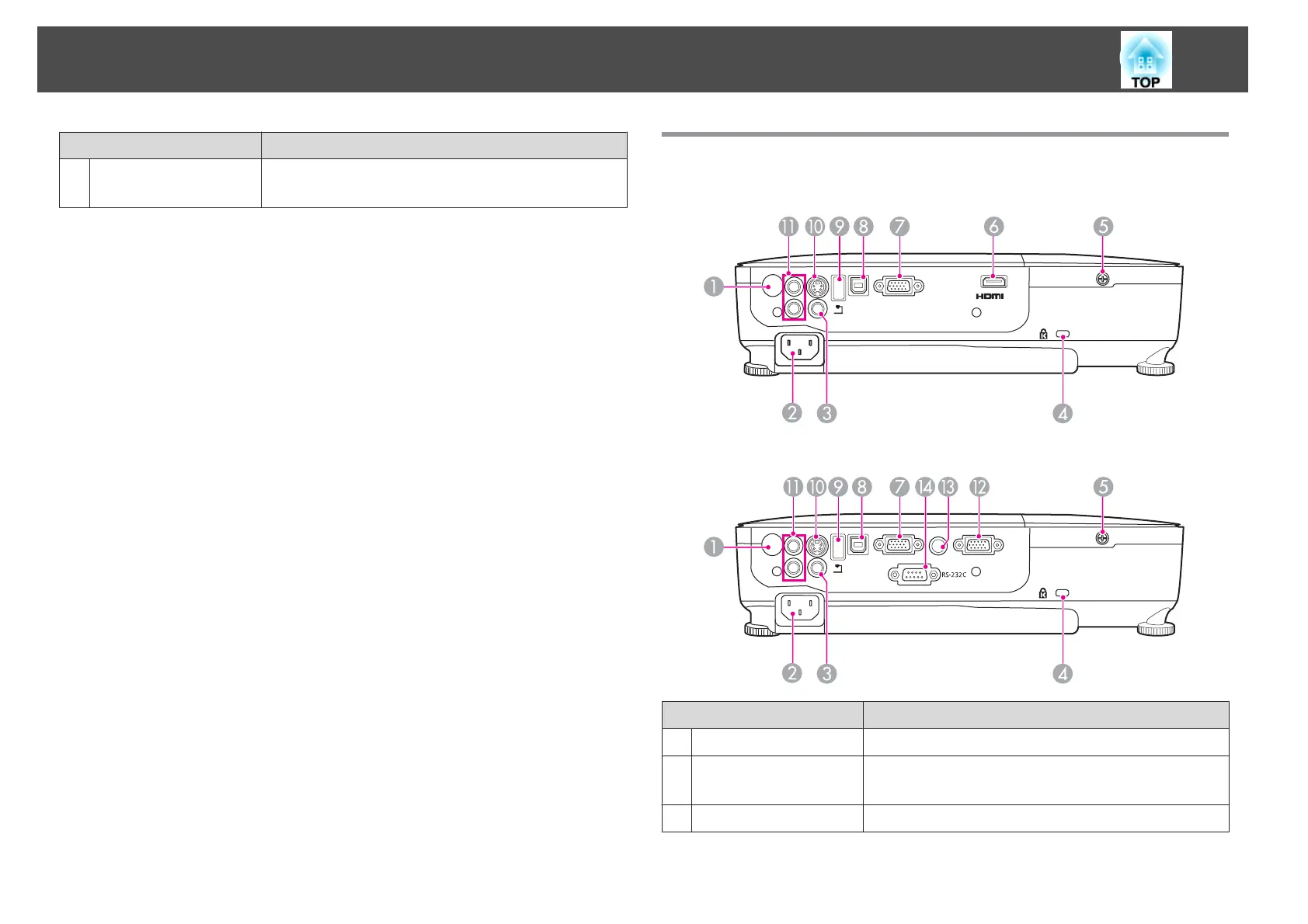

Rear

EB-X14/EB-W12/EB-X12

EB-S12/EB-X11/EB-S11

Name Function

Remote receiver

Receives signals from the remote control.

Power inlet

Connects the power cable to the projector.

s "From Installation to Projection" p.30

Video port

Inputs composite video signals from video sources.
