2. Remove the N POLARIZER UNIT;B.
3. Remove the N POLARIZER UNIT;R.

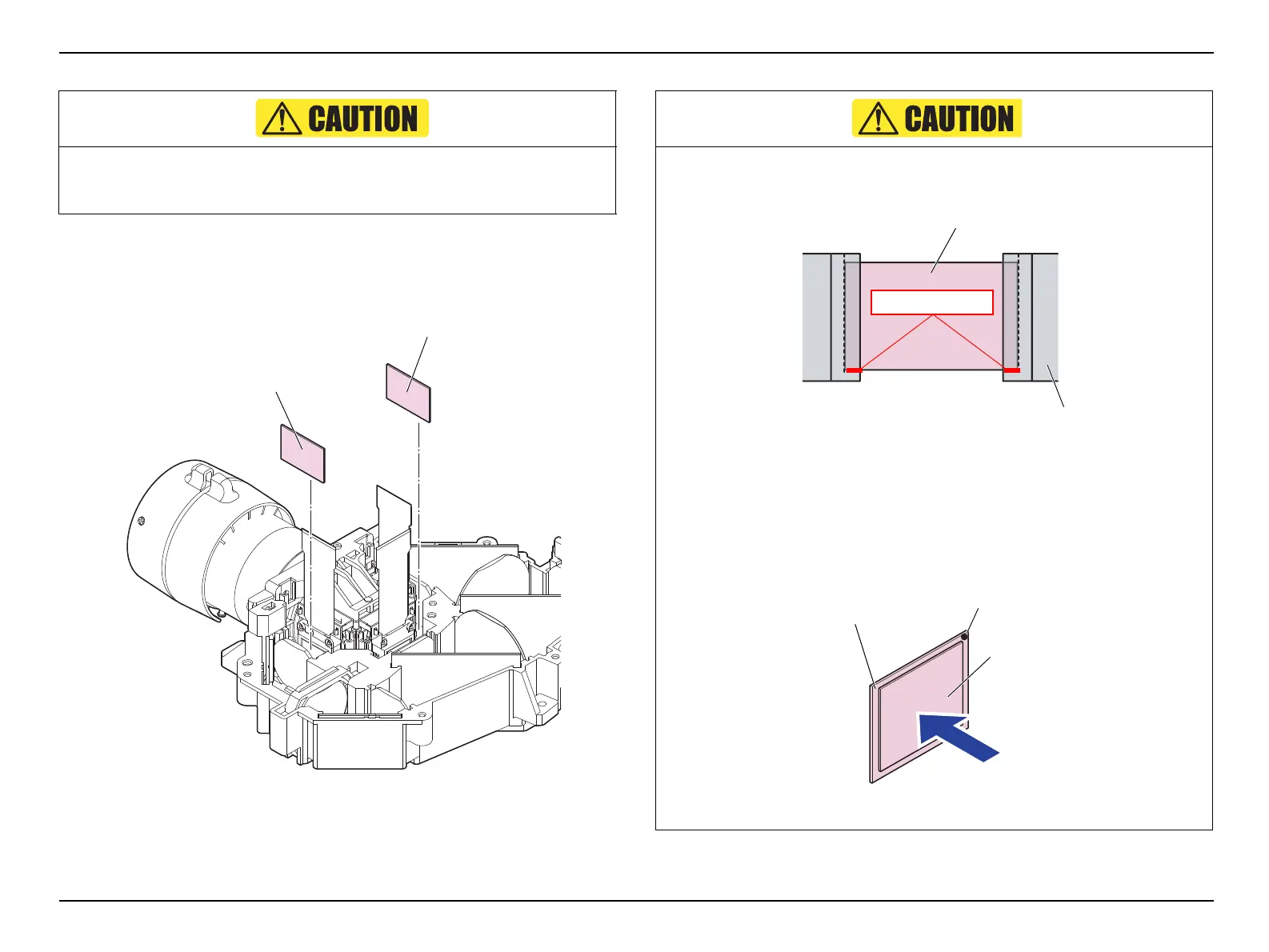

Figure 4-5.
When reassembling the LIGHT GUIDE,UPPER, make sure to re-install the N
POLARIZER ADJUST ASSY;G;AS into the correct location taking care not to
damage it or mis-align the adjusted parts.
N POLARIZER UNIT;B
N POLARIZER UNIT;R
 Insert the N POLARIZER UNIT;B and N POLARIZER UNIT;R without
any gap between the bottom of them and the Lower Light Guide Assy.
Figure 4-6.
 Install the N POLARIZER UNIT;B taking care in the following instructions.
• Black marking on the top right as seen from the incidence side.
• Hold the edges of the N POLARIZER UNIT;B, and make sure not to
touch the polarizer surface.
Figure 4-7.
LIGHT GUIDE,LOWER
No gap in between
N POLARIZER UNIT;B/R
N POLARIZER UNIT;B
Black Marking
Incidence side
The side with the polarizer
attached
