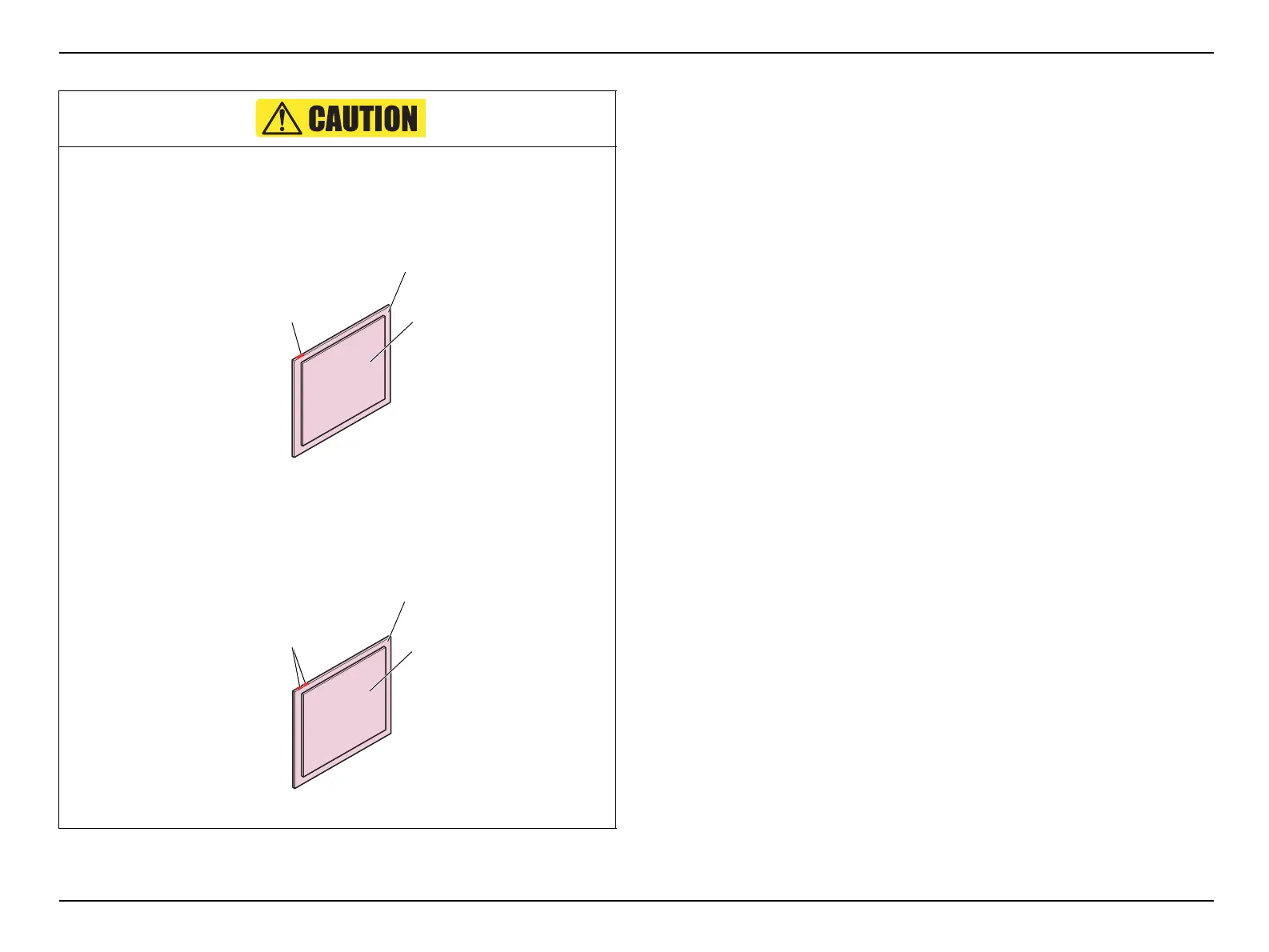

The specifications of the N POLARIZER UNIT;R differ according to the
models. Confirm your model referring below to install it.
• EB-S01/W01/S11/X11/S02/S02H/X02/W02's case:
A red marking on the top left as seen from the polarizer attached.
Figure 4-8.
• EB-X14G/S12/S12H/X12/W12/X14 and EH-TW480’s case:
Two red markings on the top left as seen from the polarizer attached.
Figure 4-9.
N POLARIZER UNIT;R
Red Marking
The side with the polarizer
attached
The side with the polarizer
attached
N POLARIZER UNIT;R
Red Markings
