Installing the Wall mount

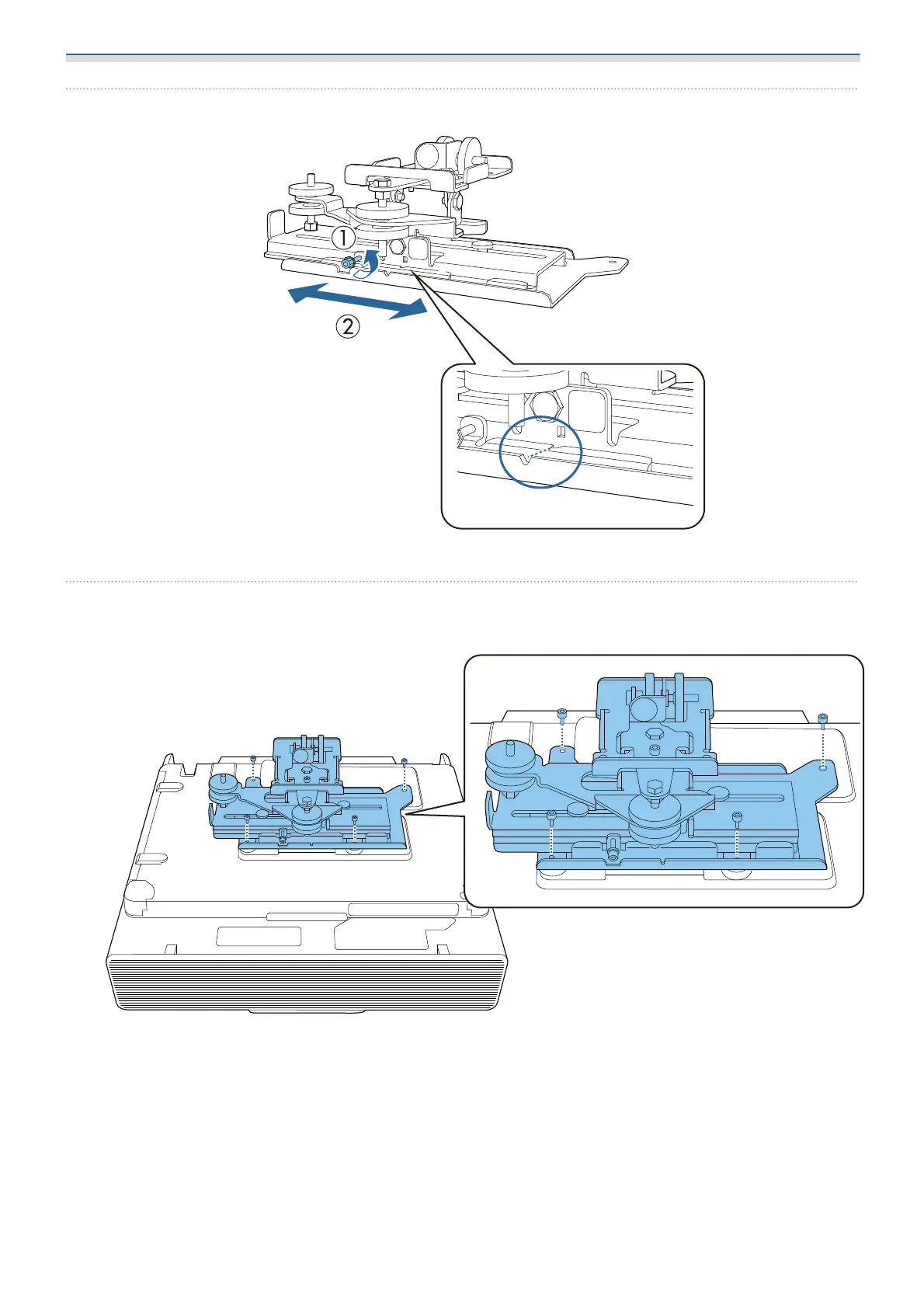

Loosen the M4 bolt on the adjustment unit, and then align the marks for each part

When the position is correct, tighten the M4 bolt.

Secure the adjustment unit to the base of the projector with the M4 x 12 mm bolts (x4)

supplied
