Installing the Wall mount

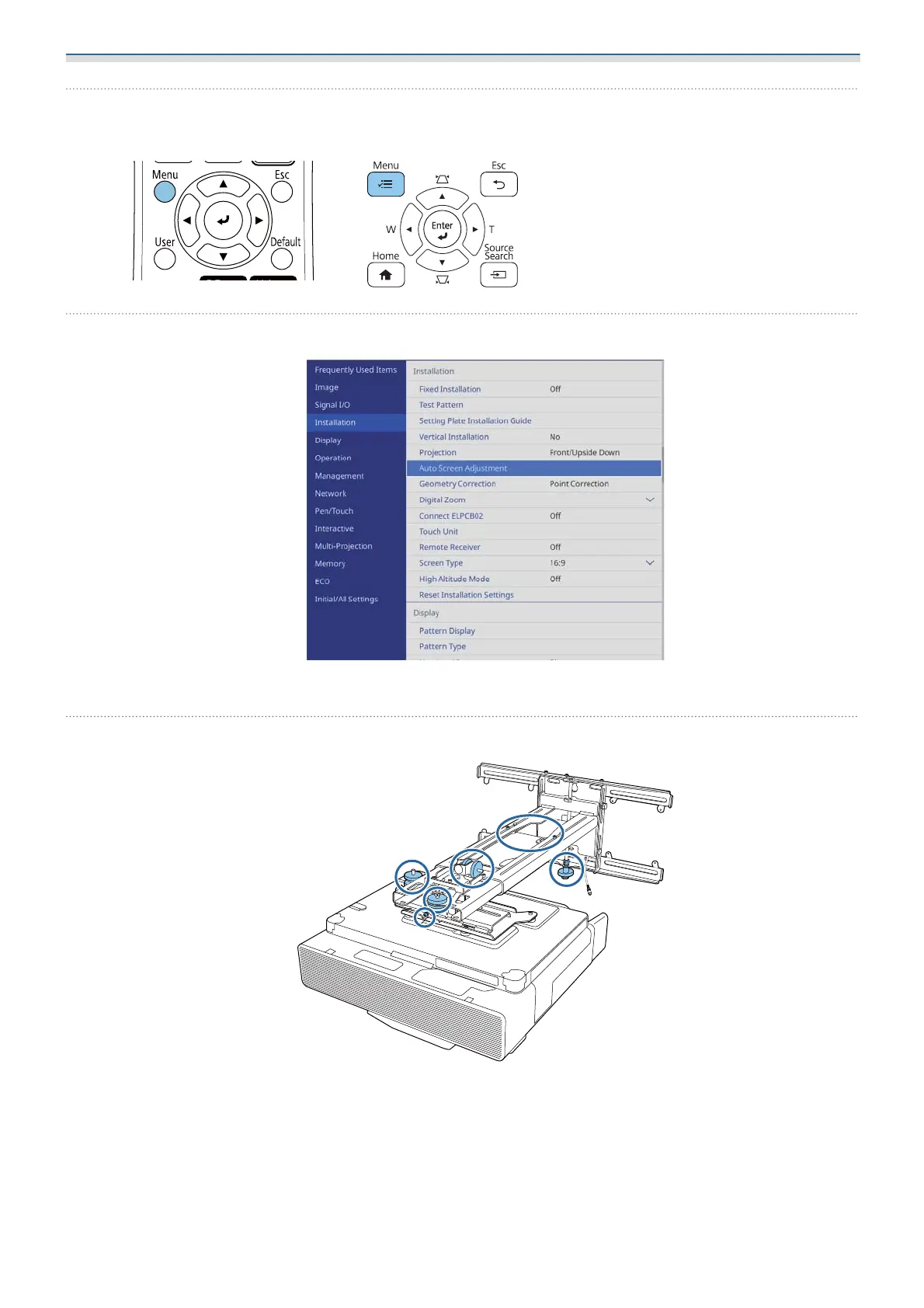

Press the [Menu] button

Using the Remote Control Using the Control Panel

Select Auto Screen Adjustment from the Installation menu

You see the guidance screen for Auto Screen Adjustment.

Loosen all of the adjustment dials and adjustment screws
