Installing the Wall mount

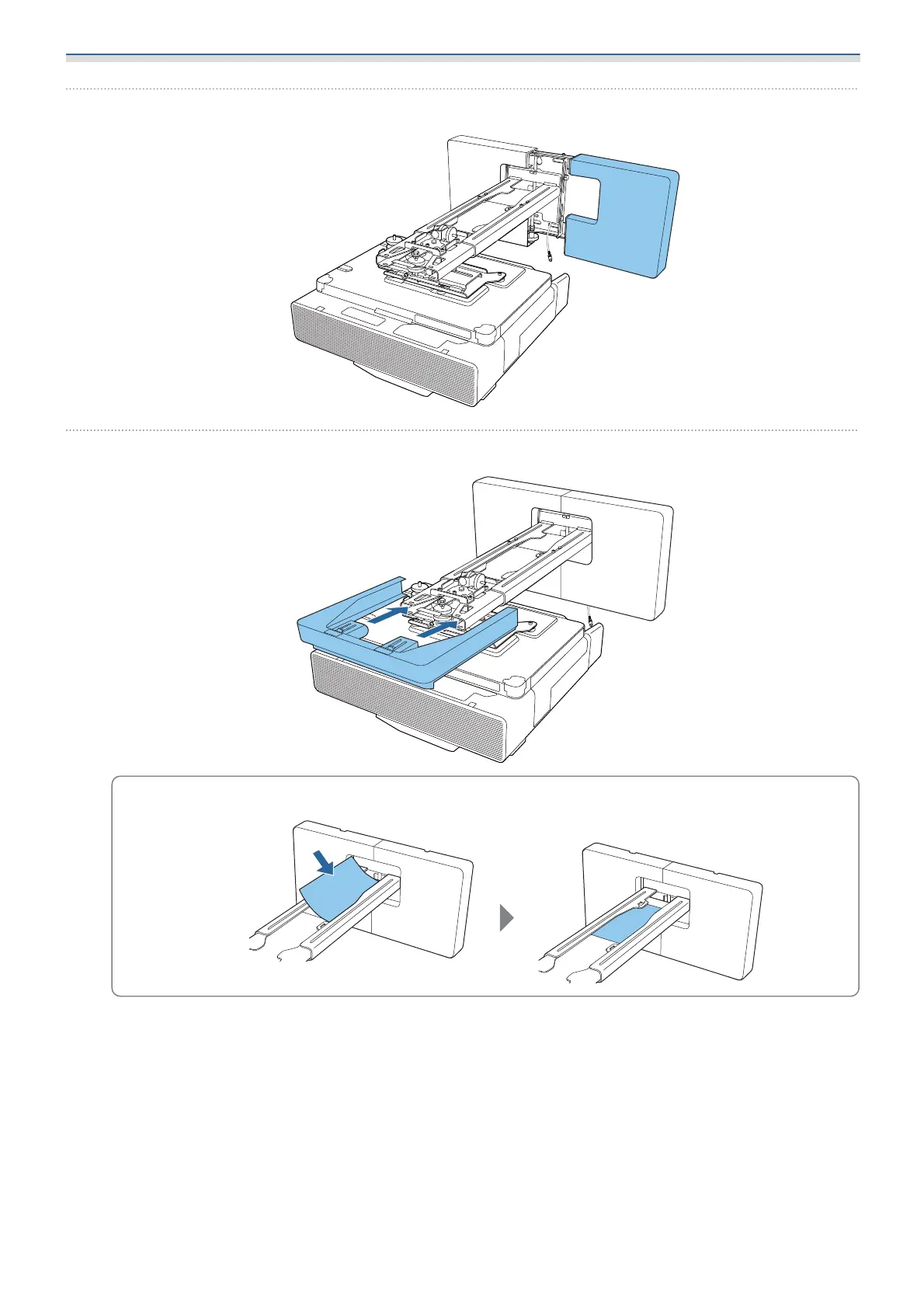

Attach the right wall plate cover

Fit the end cap to the setting plate

If you are concerned about the groove in the arm, stick the supplied masking sticker.
