Installing the Control Pad

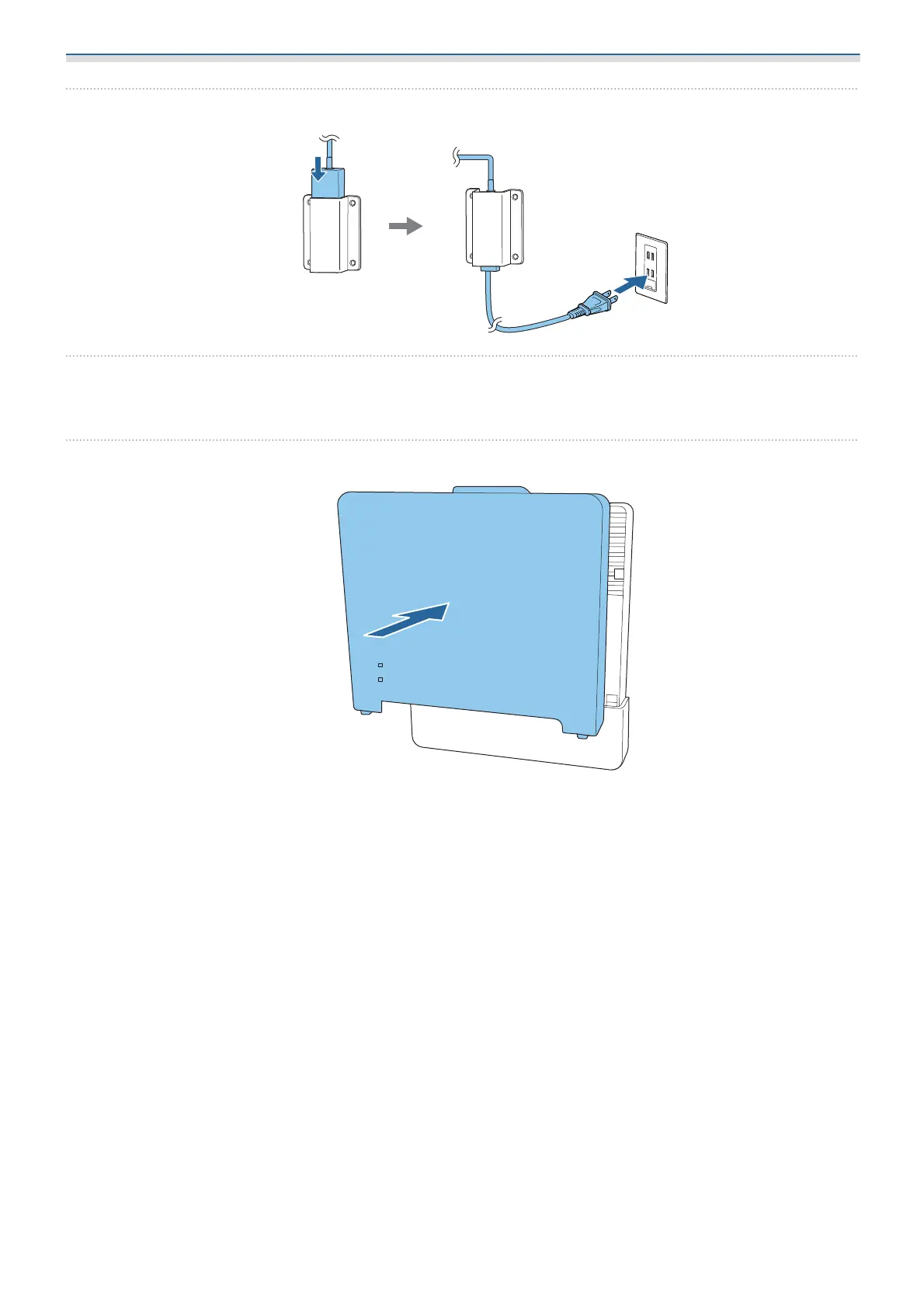

Place the AC adapter in the holder and connect it to the power supply

Connect the cable that is connected to the projector to the Control Pad

See "Connecting the Touch Unit and the Control Pad" p.15 for details on connecting.

Attach the front cover
