Epson EX70 User Manual

Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Specifications and terms are subject to change without notice. Epson and Instant Off are registered trademarks and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PowerLite and PrivateLine
are registered trademarks, Duet is a trademark, and Epson Connection is a service mark of Epson America, Inc. All other product and brand names are trademarks and/or registered trademarks of their respective companies.
Epson disclaims any and all rights in these marks. Copyright 2008 Epson America, Inc. CPD-25968 9/08 10K
Epson Canada, Ltd.
3771 Victoria Park Avenue, Toronto, Ontario M1W 3Z5
SPECIFICATIONS
Projection System
Epson 3LCD, 3-chip optical engine
Projection Method
Front/rear/ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
1,024,000 dots (1280 x 800) x 3
White Light Output*
2000 lumens (ISO 21118 Standard)
Color Light Output*
2000 lumens
Aspect Ratio
16:10
Native Resolution
1280 x 800 (WXGA)
Resize
640 x 480 (VGA), 1024 x 768 (XGA),
1152 x 864 (SXGA), 1400 x 900 (WXGA+),
1440 x 900 (WSXGA), 1680 x 1050
(WSXGA+), 1400 x 1050 (SXGA+),
1600 x 1200 (UXGA)
Lamp Type
170 W UHE
Lamp Life**
Up to 4000 hours (Low Light Output Mode)
Up to 3000 hours (High Light Output Mode)
Throw Ratio Range
1.47 – 1.77 (16:10)
1.77 – 2.12 (4:3)
Size (projected distance)
27" – 250" (2.8’ – 31.81’)
Keystone Correction Automatic
Vertical:
± 11 degrees
Keystone Correction Manual
Vertical:
± 30 degrees
Plug 'n Play
Projector is Mac compatible via DVI to VGA
adapter (not included)
Contrast Ratio
Up to 2000:1
Color Reproduction
16.77 million colors
PROJECTIONLENS
Type
Manual zoom/Manual focus
F-number
1.6 – 1.74
Focal Length
18.4 mm – 22.12 mm
Zoom Ratio
Optical zoom 1.0 – 1.2
OTHER
Display Performance
NTSC: 560 lines
PAL: 560 line
(Depends on observation of the
multi-burst pattern)
Input Signal
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/
PAL60/SECAM
Interfaces
Computer/component video:
D-sub 15 pin x 1
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (White/Red)
USB connector: Type B x 1,
Type A x 1
HDMI port
SD card slot
USB connector 1
Speaker
7 W (mono)
Operating Temperature
41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz
Power Consumption
246 W, 3 W standby
Fan Noise
35 dB (High Light Output Mode)
28 dB (Low Light Output Mode)
Security
Kensington
®
-style lock provision,
padlock and security anchor bar
DIMENSIONS(WXDXH)
Including feet: 12.9" x 9.6" x 4.0"
Excluding feet: 12.9" x 9.6" x 3.6"
Weight: 6.2 lb/2.8 kg
REMOTECONTROL
Features
Source search selection, HDMI, slideshow,
USB display, power, aspect, color mode,
volume, e-zoom, A/V mute, freeze, menu,
page up and down, help, auto, mouse
functions, ID, user password
Operating Angle
Right/left:
± 30 degrees
Upper/lower:
± 15 degrees
Operating Distance
19' (6 m)
SUPPORT—THEEPSONCONNECTION
SM
Pre-sales support
U.S. and Canada 800-463-7766
Internet website www.epson.com
Service Programs
Two-year projector limited warranty, Epson
Road Service program, Epson PrivateLine
®
dedicated toll-free support and 90-day lamp
warranty
What’s In The Box
Power cable, computer cable (VGA),
USB cable, soft carrying case, projector
remote control, batteries, user manual CD,
Quick Setup Sheet, PrivateLine support
card, registration card and password
protection sticker
ACCESSORYPARTNUMBERS
Universal projector
ceiling mount ELPMBPJF
Component to VGA video cable ELPKC19
S-video cable ELPSV01
SwissGear
®
backpack ELPKS63
Wheeled soft case ELPKS62
Soft shoulder case for
projector and laptop ELPKS61
Molded hardshell case ELPKS58
50" portable screen ELPSC06
60" portable pop-up screen ELPSC07
80" portable pop-up screen ELPSC08
Duet™ screen ELPSC80
Epson DC-10s document camera ELPDC10S
Kensington security lock ELPSL01
PACKAGINGSPECIFICATIONS
EX70
Dimensions 16.8" x 14.9" x 7.2" (W x D x H)
Weight 11.9 lb
Replacement Lamp
Dimensions 6.3" x 5.5" x 5.6" (W x D x H)
Weight 0.7 lb
Master Carton
Dimensions 28.4" x 13.1" x 6.8" (W x D x H)
Weight 1.1 lb
Units Per Master Carton 10
Replacement Air Filter
Dimensions 3.9" x 1.2" x 4.9" (W x D x H)
Weight 0.88 lb
Master Carton
Dimensions 12.8" x 5.3" x 4.7" (W x D x H)
Weight 1.1 lb
Units Per Master Carton 10
* Light output varies depending upon modes (color and brightness) selected.
** Lamp life results will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
ORDERING INFORMATION
Product Name Product Code UPC
EX70 (U.S.) V11H285220 010343 36969 1
EX70 (Canada) V11H285220-F 010343 87138 0
Replacement Lamp V13H010L41 010343 86410 8
Replacement Air Filters V13H134A13 010343 86412 2
Computer/Component Video

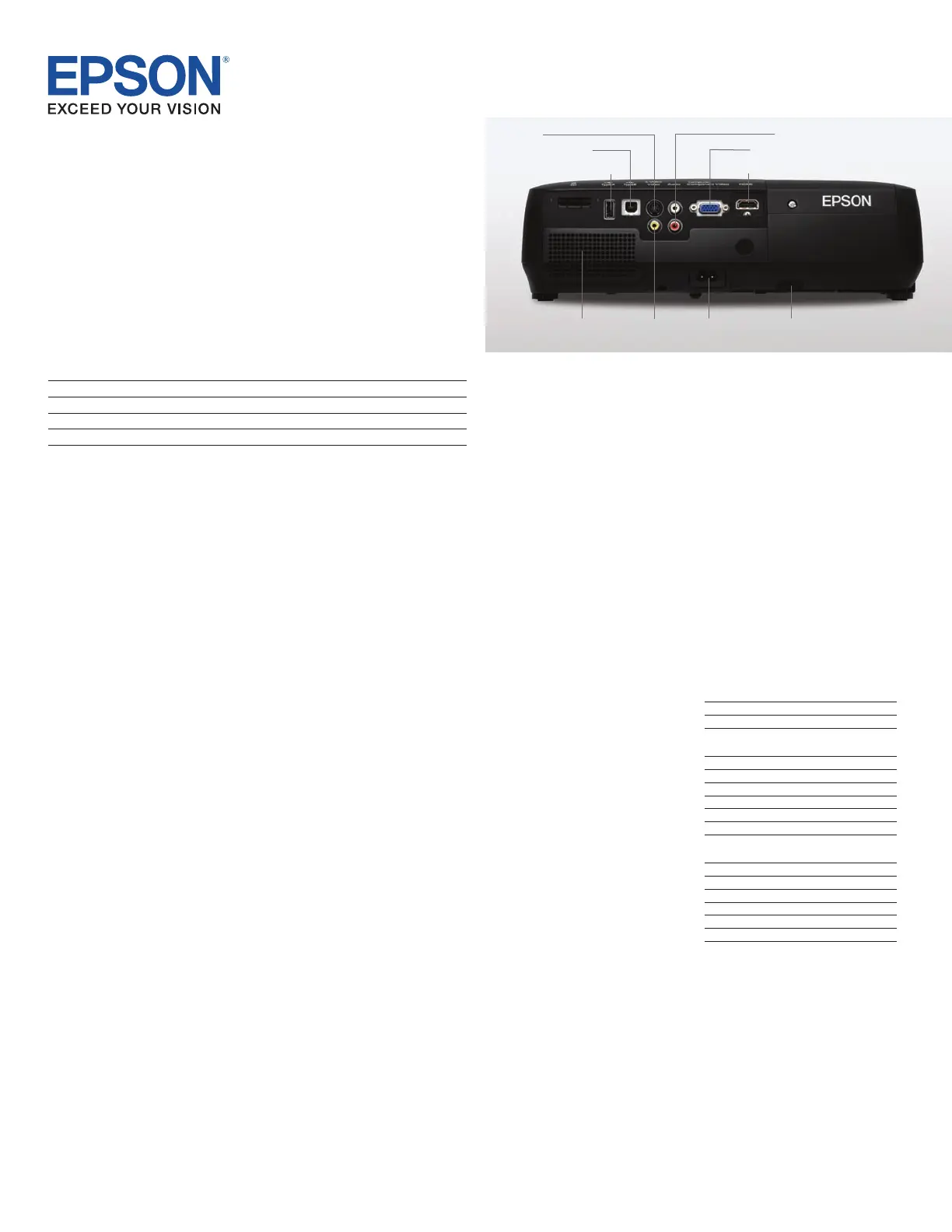

BACK PANEL
HDMI
USB (Type B)
S-video Audio L/R
USB (Type A)
PowerComposite
Video
Speaker Anchor
Bar
EX70
MultimediaProjector
Portable | Home | Office

Epson EX70 Specifications

General

Number of colors	16.78 million colors
Projection technology	LCD
Contrast ratio (typical)	2000:1
Screen size compatibility	27 - 270 \
Projector native resolution	WXGA (1280x800)
Aspect ratio	16:10
Power requirements	100 – 240 V, 50/60 Hz
Lamp type	UHE
Lamp power	170 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	4000 h
Focal length range	18.4 - 22.12 mm
RMS rated power	7 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Power consumption (typical)	246 W
Compatible memory cards	SD
Noise level	35 dB

Weight and Dimensions

Weight	2800 g
