Confidential
Disassembly/Reassembly Overview 19
L350/L300/L355/L210/L110 Series
Revision B

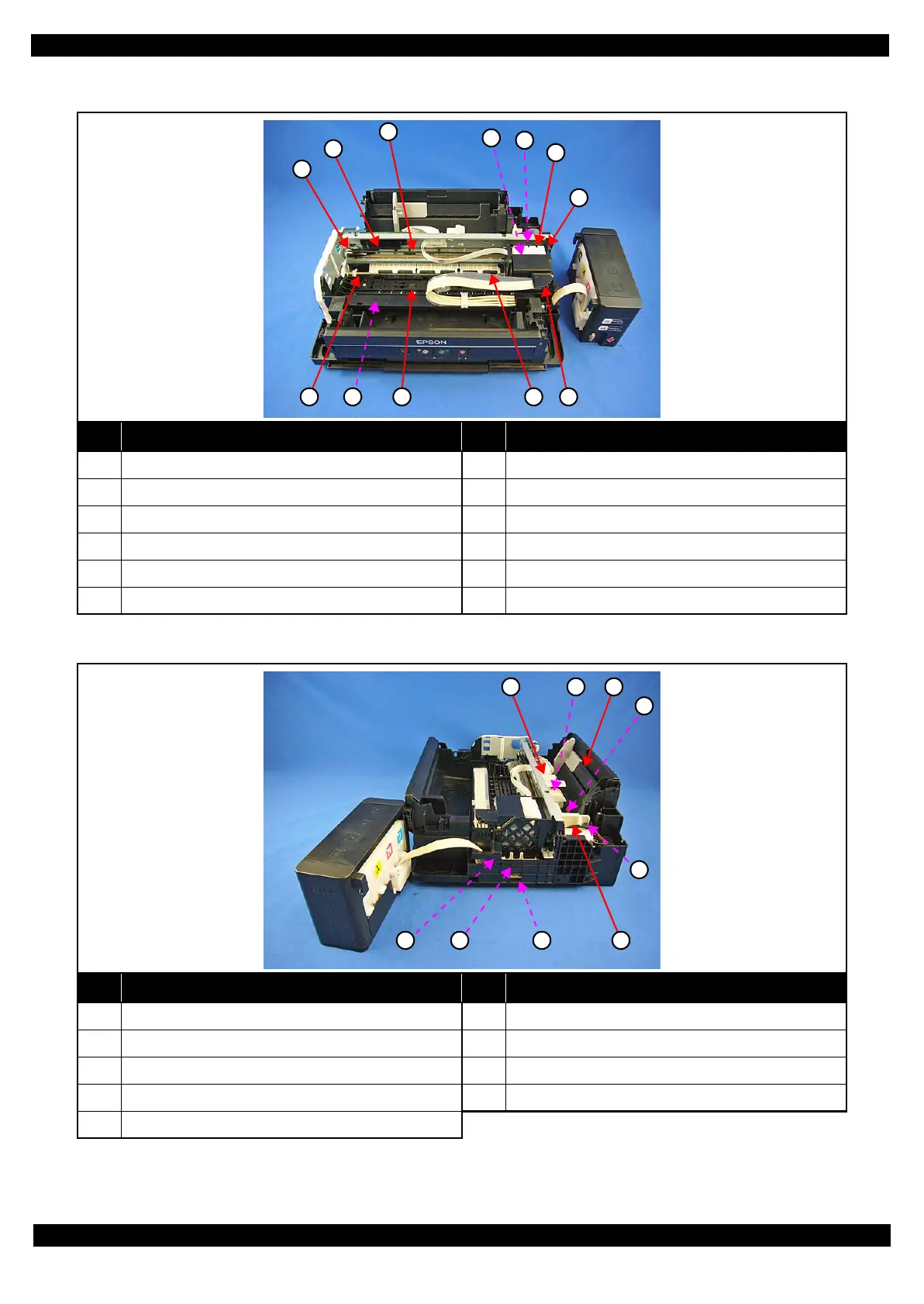

Printer mechanism
Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p34) 7 CR Unit (p38)
2 CR Scale (p34) 8 PF Roller Unit (p38)
3 CR Timing Belt (p38) 9 Star Wheel Holder Assy (p36)
4 Printhead (p32) 10 Paper Guide Front Unit (p32)
5 CR Encoder Sensor (p38) 11 Paper Guide Upper Assy (p38)
6 Adapter (p36) 12 Adapter Cover (p36)
No. Name No. Name
1 LD Roller Cover (p34) 6 Cap Lever (p36)
2 LD Roller Assy (p34) 7 Cap Assy (p36)
3 Hopper (p34) 8 Porous Pad for Cap Assy (p36)
4 Retard Roller Assy (p32) 9 Pump Unit (p38)
5 Paper Back Lever (p32)
1
2
3
5
8 11
7
10
4
9
6
12
6 7 8 9
5
4
31 2
To Next Page
