Disassembly/Reassembly Overview 21
L350/L300/L355/L210/L110 Series Revision B
 Ink Supply Tank Assy

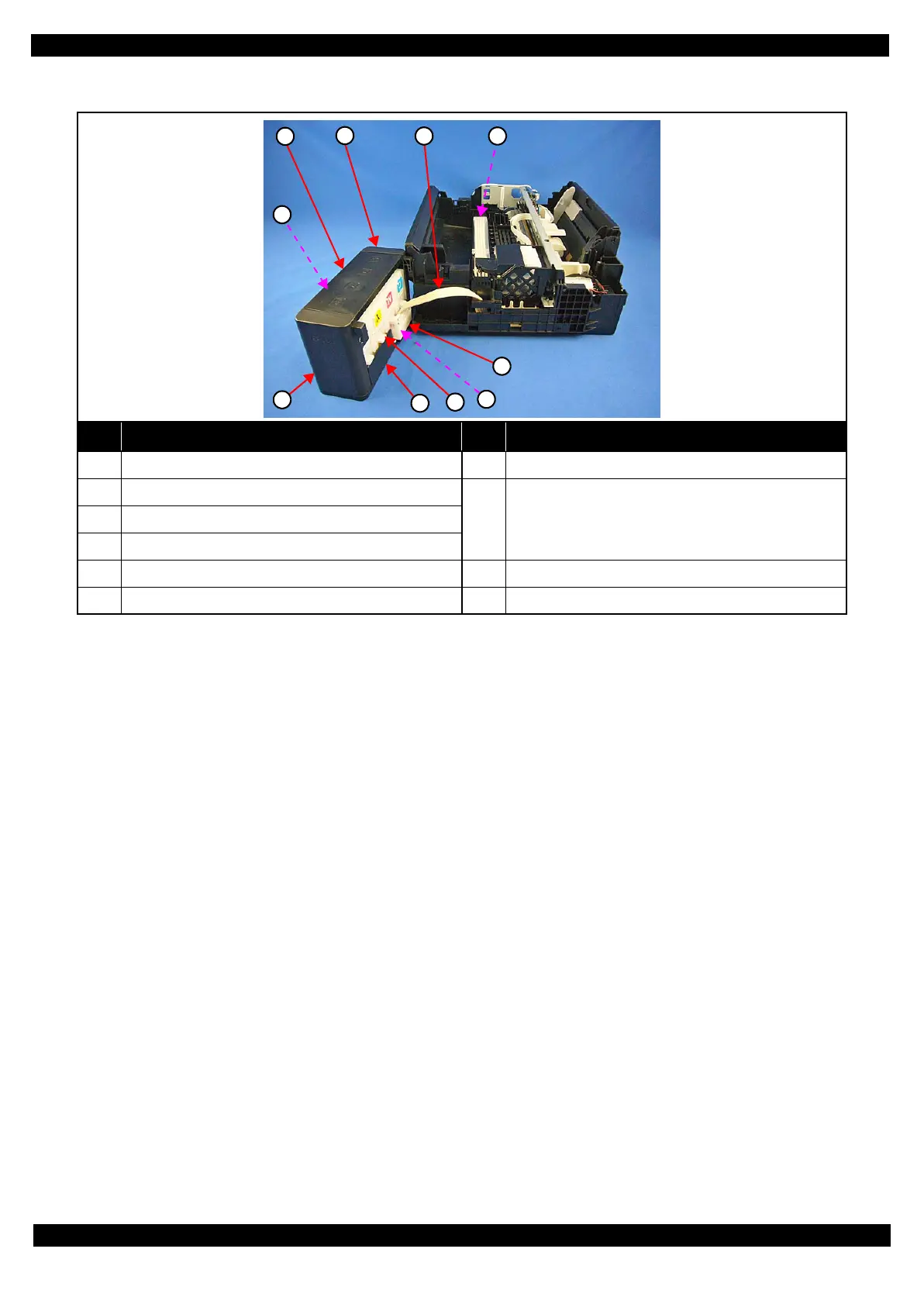

Figure 2-7. Ink Supply Tank Assy
No. Name No. Name
1 Cover Joint (p35) 7 Tube Valve Holder Front (p35)
2 Top Cover (p35)
8
Ink Supply Tank
Ink Supply Tank (Cyan) (p35)/Ink Supply Tank
(Magenta) (p35)/Ink Supply Tank (Yellow) (p35)/Ink
Supply Tank (Black) (p35)
3 Right Cover (p35)
4 Ink Supply Tank Tube Assy (p35)
5 Ink Supply Tube Assy (p36) 9 Bottom Cover (p35)
6 Tube Valve Holder Rear (p35) 10 Left Cover (p35)
7
6
4
2
3
8
9
10
1
5
