Epson L301 User Manual

L350/L300/L355/L210/L110 Series Revision B
Confidential
Maintenance Lubrication Points and Instructions 69

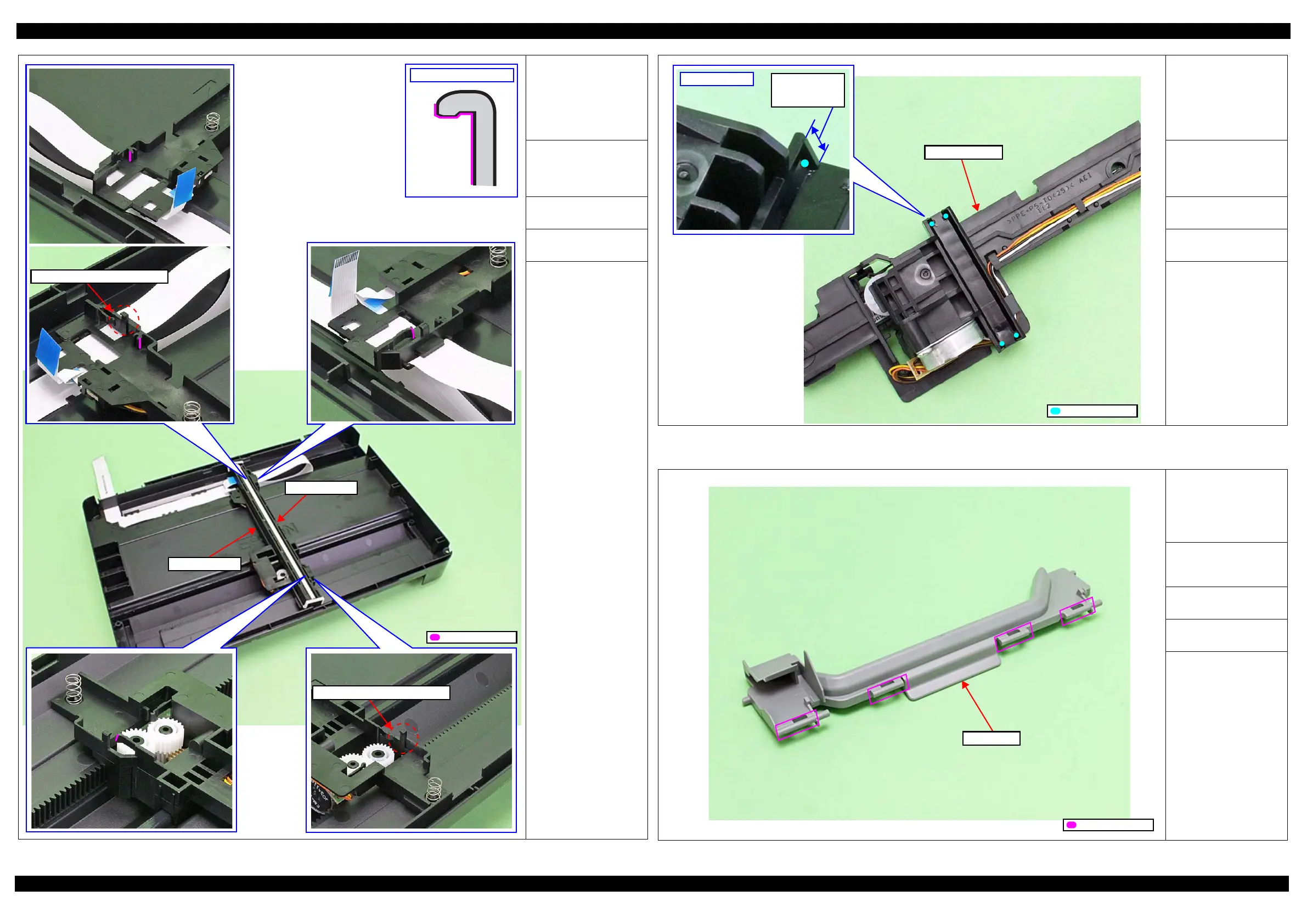

Figure 4-15. Lubrication of the Scanner Carriage (1)
<Part supply as ASP>
Supplied as the Scanner
Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Contact points (x6) on the
Scanner Carriage with the
CIS Module Unit
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
 For section A, apply
grease over the area
shown in the Cross-
section view.
Section A (See Cross-section view.)
Section A (See Cross-section view.)
Cross-section of section A
Scanner Carriage
CIS Module Unit
Application Point
Figure 4-16. Lubrication of the Scanner Carriage (2)
<Part supply as ASP>
Supplied as the Scanner
Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
On inner wall surfaces (x4)
on the groove of the
Scanner Carriage
<Type>
G-45
<Application Amount>
0.01 g x 4 points
<Remarks>
 Using injector, apply
grease on inner wall
surfaces (x4) on the
groove shown in the
enlarged figure.
 Be careful not to let
grease flow over.
Scanner Carriage
Enlarged figure
Apply on the
center of inner
wall (x4 points).
Application Point
Figure 4-17. Lubrication of the Panel Stand
<Part supply as ASP>
Supplied as the Panel Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Shafts (x4) of the Panel
Stand
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Using flux dispenser,
apply all over the shafts
shown in the figure.
 Stir G-74 before use.
Panel Stand
Application Point
