Epson L310 Service Manual

Confidential
Disassembly/Reassembly Overview 28
L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
DISCHRGING INK FROM THE INK SUPPLY TANK
Discharging ink is recommended only when disconnecting the Ink Supply Tank Tube Assy from the Ink Supply
Tank. Before performing the above disconnection, discharge ink from the Ink Supply Tank as follows.

Necessary tools
• Containers (x 4) for each discharged ink
• Injector (with a tip of φ 3.2 mm)
• Clips (x 2)
• Cotton swab (x 4)

Discharging preparation
1. Remove the screw (x 3) of the Guide Tube 1st and the Tube Pressing Plate .
2. Release the hook of the Guide Tube Sub , Release the Guide Tube from Dowel .
3. Release the Ink Supply Tube from rib, and release the Guide Tube 1st from the Frame Base Assy.

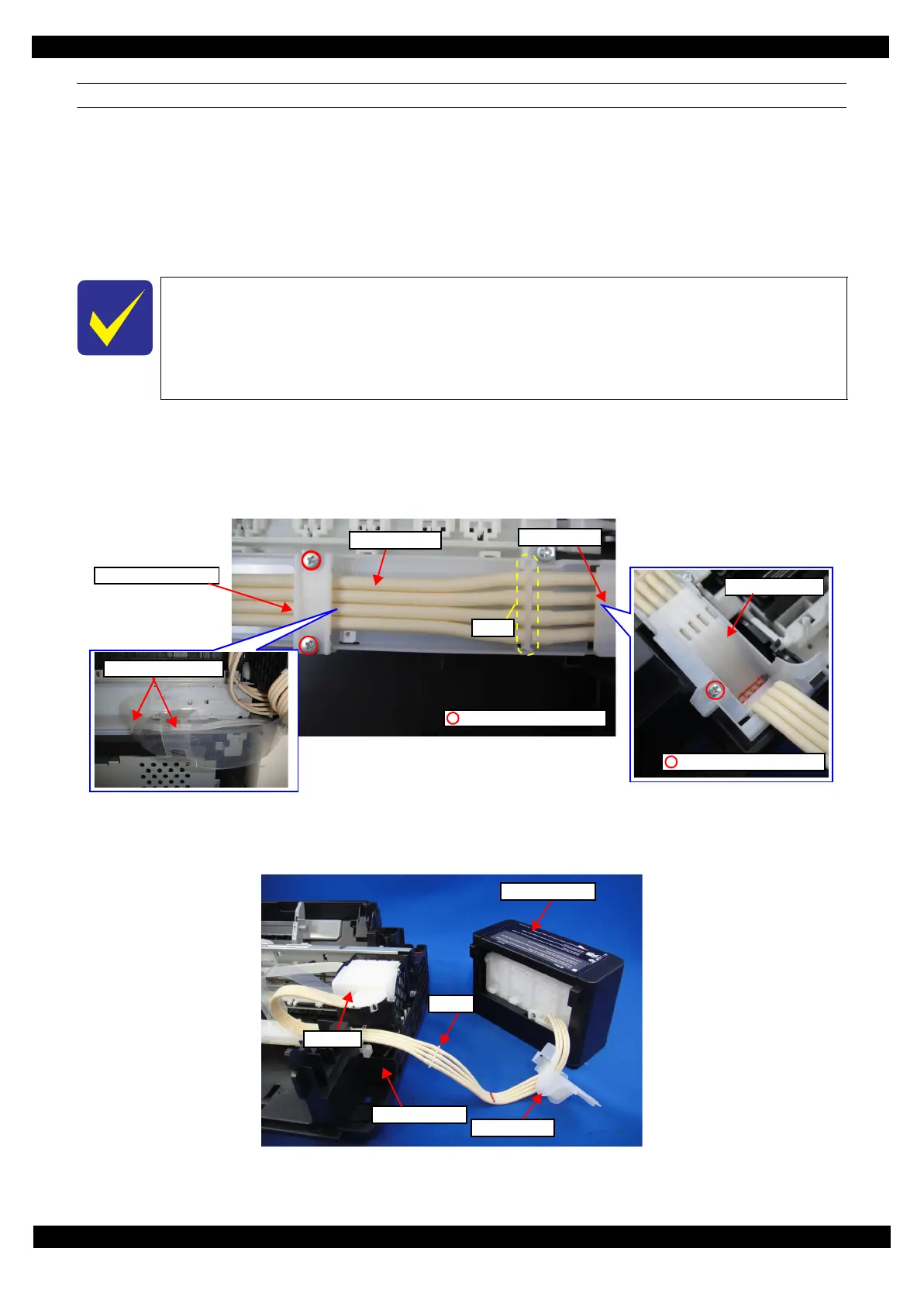

Figure 2-11. Discharging preparation (1)
4. Move the Carriage to right side .
5. Release the Joint from the rib of Guide Tube 1st .
Figure 2-12. Discharging preparation (2)
 When disconnecting the Ink Supply Tube/Ink Supply TankTube from the Joint, ink may
leak from the ink tube. Preparea container to receive the leaking ink to prevent the
productfrom getting contaminated by the leaked ink .
 Prior to the following steps, connect the injector with the tube, and then discharge ink
according to the procedure.
C.B.P. 3x10 (6.1±1 Kgfcm)
Rib
Tube Pressing Plate
Guide Tube 1st
Ink Supply Tube
Guide Tube ＆ Sub
Guide Tube 1st
C.B.P. 3x10 (6.1±1 Kgfcm)
Ink SupplyTank
Carriage
Guife Tube 1st
Joint
Frame Base Assy

Epson L310 Specifications

General

Color	Yes
Maximum resolution	5760 x 1440 DPI
Print speed (color, draft quality, A4/US Letter)	15 ppm
Print speed (black, normal quality, A4/US Letter)	33 ppm
Paper input type	Paper tray
Total input capacity	100 sheets
Total output capacity	30 sheets
Total number of input trays	1
Photo paper sizes (imperial)	10x15 \
Maximum ISO A-series paper size	A4
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	2.2 W
Power consumption (printing)	10 W
Sustainability certificates	ENERGY STAR
Sound pressure level (printing)	39 dB
Product color	Black
Built-in display	No
Market positioning	Home & office
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 10.6 Snow Leopard
Windows operating systems supported	Windows 7 Enterprise, Windows 8, Windows Vista Home Premium, Windows 7 Enterprise x64, Windows 8 Enterprise, Windows Vista Home Premium x64, Windows 7 Home Basic, Windows 8 Enterprise x64, Windows Vista Ultimate, Windows 7 Home Basic x64, Windows 8 Pro, Windows Vista Ultimate x64, Windows 7 Home Premium, Windows 8 Pro x64, Windows XP Home, Windows 7 Home Premium x64, Windows 8 x64, Windows XP Home x64, Windows 7 Professional, Windows 8.1, Windows Vista Business, Windows XP Professional, Windows 7 Professional x64, Windows 8.1 Enterprise, Windows Vista Business x64, Windows XP Professional x64, Windows 7 Starter, Windows 8.1 Enterprise x64, Windows Vista Enterprise, Windows 7 Starter x64, Windows 8.1 Pro, Windows Vista Enterprise x64, Windows 7 Ultimate, Windows 8.1 Pro x64, Windows Vista Home Basic, Windows 7 Ultimate x64, Windows 8.1 x64, Windows Vista Home Basic x64

Weight and Dimensions

Depth	222 mm
Width	482 mm
Height	130 mm
