Disassembly/Reassembly Disassembly/Reassembly Procedures 43

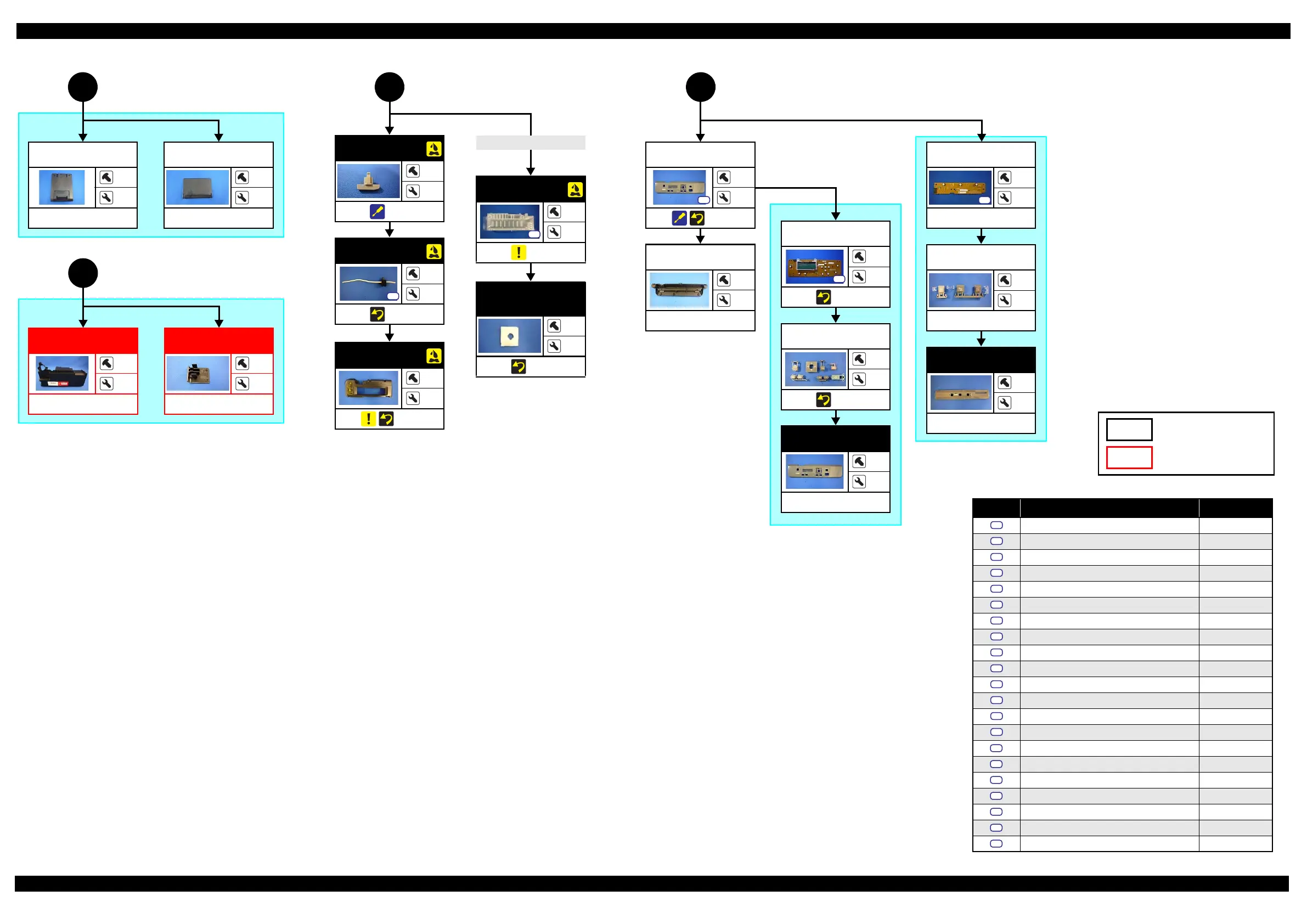

Flowchart 2-2. Unit/Assy (2)
Tray Front
---
2
---
Tray Front
Support
---
2
---
(p 34)
2
(p 34)
3
Housing Left
---
2
---
Ethernet Cover
---
2
---
Panel Housing
Upper Assy
3
4
(p 48)
S6
Panel Housing
Lower
---
---
---
Panel Board
6
---
(p 48)
S7
Panel Button
---
---
(p 49)
Panel Housing
Upper
---
---
---
Panel Board
3
---
---
S7
Panel Button
---
---
---
Panel Housing
---
---
---
2Line Bitmap Type
LED&Button Type
(p 36)Multifunction Printer :
(p 37)
Singlefunction Printer :
5
(p 35)
Multifunction Printer :
(p 38)
Singlefunction Printer :
Valve Lever
---
1
(p 54)
Housing Ink
Supply Tank
---
---
(p 53)
 Ink Supply Tank Tube
Ink Supply Tank
2
2
(p 54)
S12
4
Model-specific parts/unit
Common parts/unit
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE (S-P1) SCREW 3x12 F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2.6x5 F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZB-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 2.5
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.B.S-TITE SCREW 2x4 F/ZN-3C 2 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZB-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 8 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.P-TITE SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZB-3C 6
± 1 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
Ink Supply Tank
Upper Porous
Pad
---
---
(p 52)
Ink Supply Tank
Tube Assy
1
2
(p 54)
S12

Epson M200 Series Specifications

General

Print Technology	Inkjet
Print Resolution	1440 x 720 dpi
Scanner Type	Flatbed color image scanner
Scan Resolution	1200 x 2400 dpi
Functions	Print, Scan, Copy
Ink Colors	Black
Print Speed (Black)	34 ppm
Connectivity	USB 2.0, Ethernet
Paper Sizes	A4, A5, A6, B5
Operating Systems	Windows XP / XP Professional x64 Edition / Vista / 7 / 8 / 8.1
