Maintenance Lubrication Points and Instructions 77

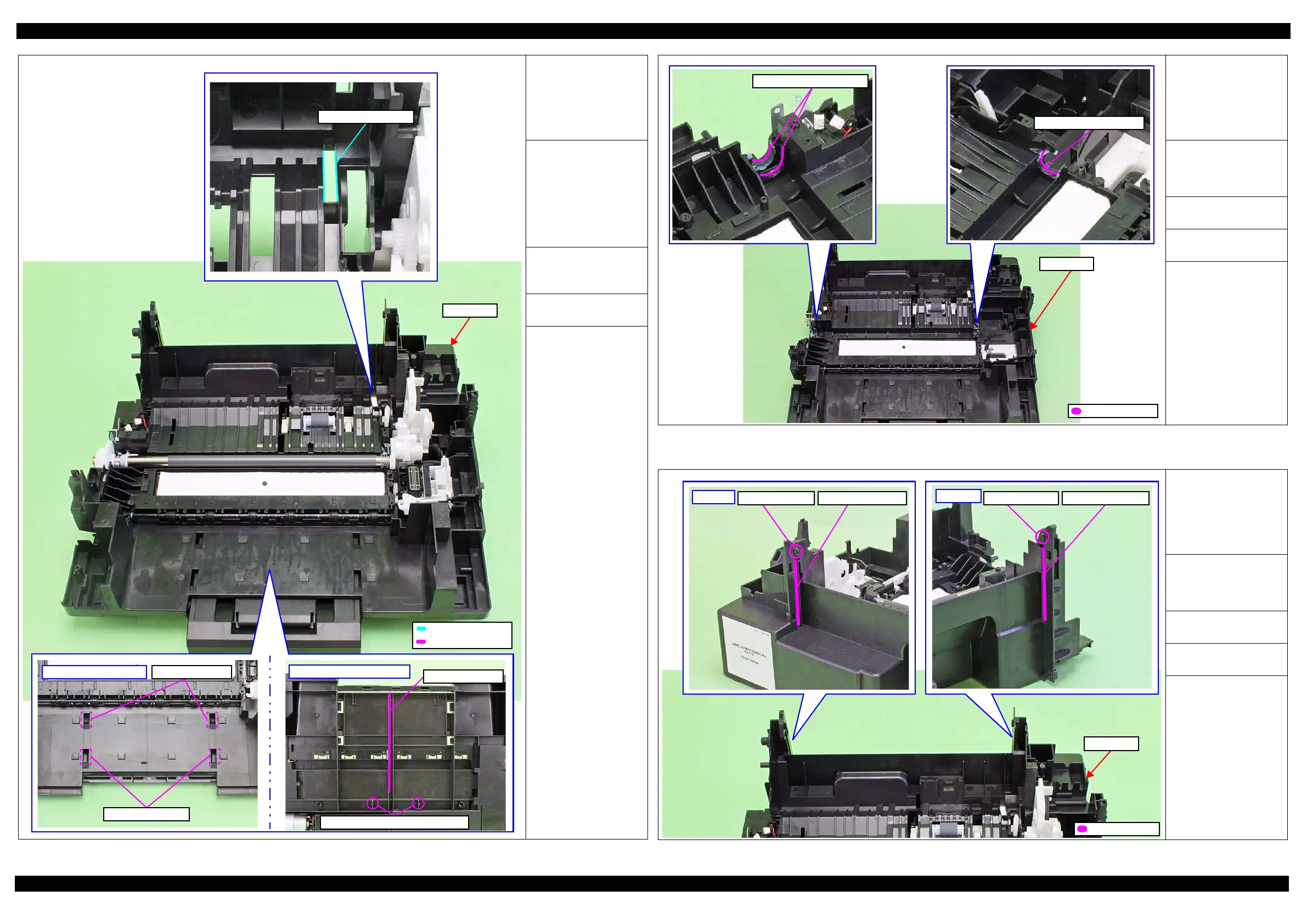

Figure 4-9. Lubrication of the Frame Base (2)
<Part supply as ASP>
Supplied as the Printer
Mechanism
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
1. Contact points (x2) on
the Frame Base with the
Hopper
2. Contact points (x7: only
Multifunction Printer)
on the Frame Base with
the Stacker Assy
<Type>
1. G-71
2. G-74
<Application Amount>
Appropriate amount
<Remarks>
Apply with flux
dispenser.
Stir G-74 before use.
Apply grease on ribs
Top: Multifunction Printer
Apply grease on ribs
Apply grease on ribs
Bottom: Multifunction Printer
Apply grease on both sides of dowels
Apply grease on sides.
Frame Base
2. Application Point
1. Application Point
Figure 4-10. Lubrication of the Frame Base (3)
<Part supply as ASP>
Supplied as Printer
Mechanism
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Contact point (x3) on the
EJ Roller with the Frame
Base
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
Apply grease along the
groove on the Frame
Base.
Apply grease on the groove
Apply grease on the groove
Frame Base
Application Point
Figure 4-11. Lubrication of the Frame Base (4)
<Part supply as ASP>
Supplied as the Printer
Mechanism
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Contact points (x4) on the
Frame Base with the Paper
Support Assy
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
Apply with flux
dispenser.
Stir G-74 before use.
Apply inside the groove
Rear left
Apply grease on rib
Rear right
Apply inside the groove
Apply grease on rib
Frame Base
Application Point
To Next Page
