Maintenance Lubrication Points and Instructions 79

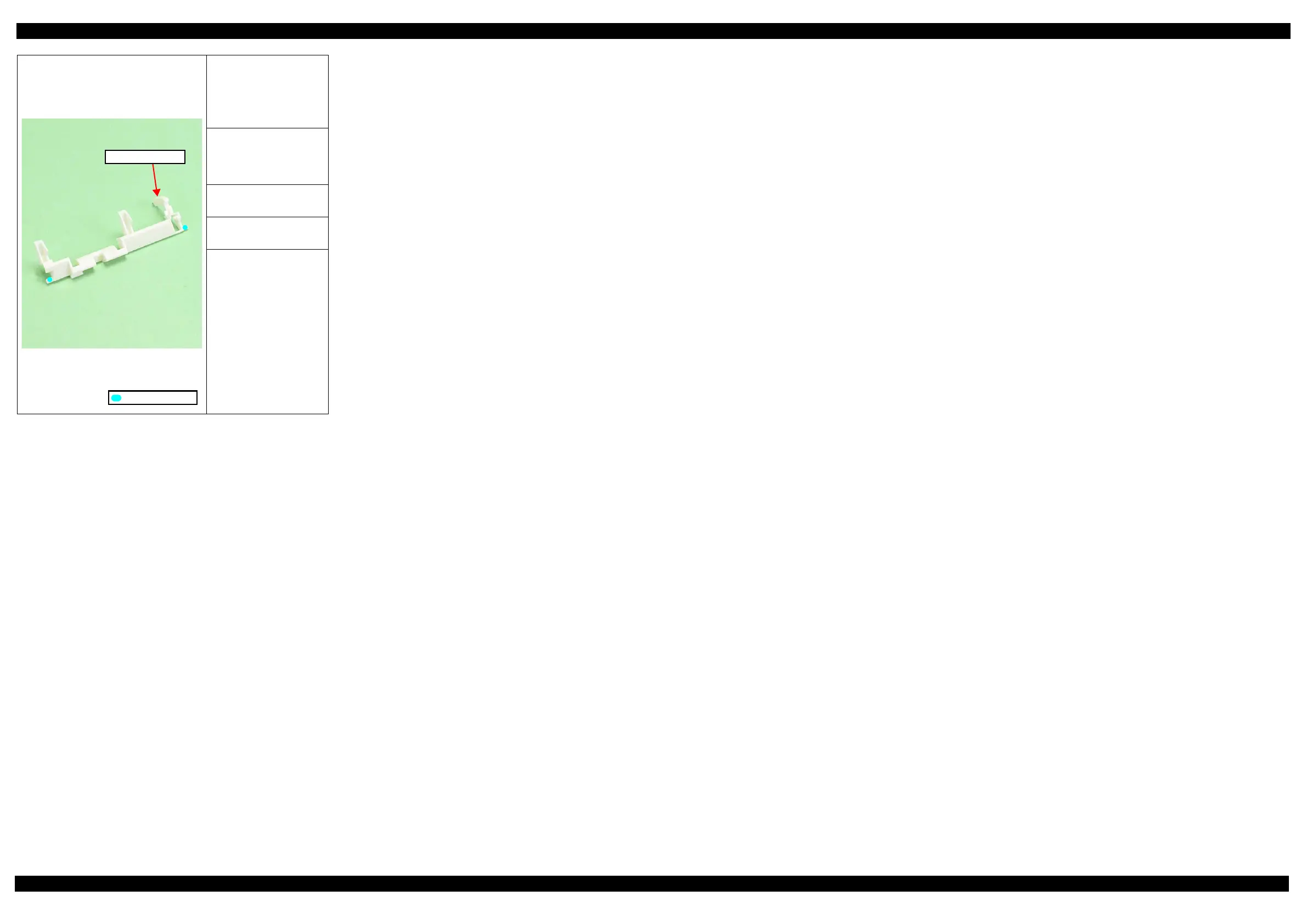

Figure 4-18. Lubrication of the Paper Back Lever
<Part supply as ASP>
Yes
<Lubrication status when
supplied as ASP>
Not lubricated
<Lubrication Point>
Contact points (x2) on the
Paper Back Lever with the
Frame Base
<Type>
G-71
<Application Amount>
0.06 g x 2 points
<Remarks>
 Apply with injector.
 Lubricate before
attaching the part.
Paper Back Lever
Application Point
