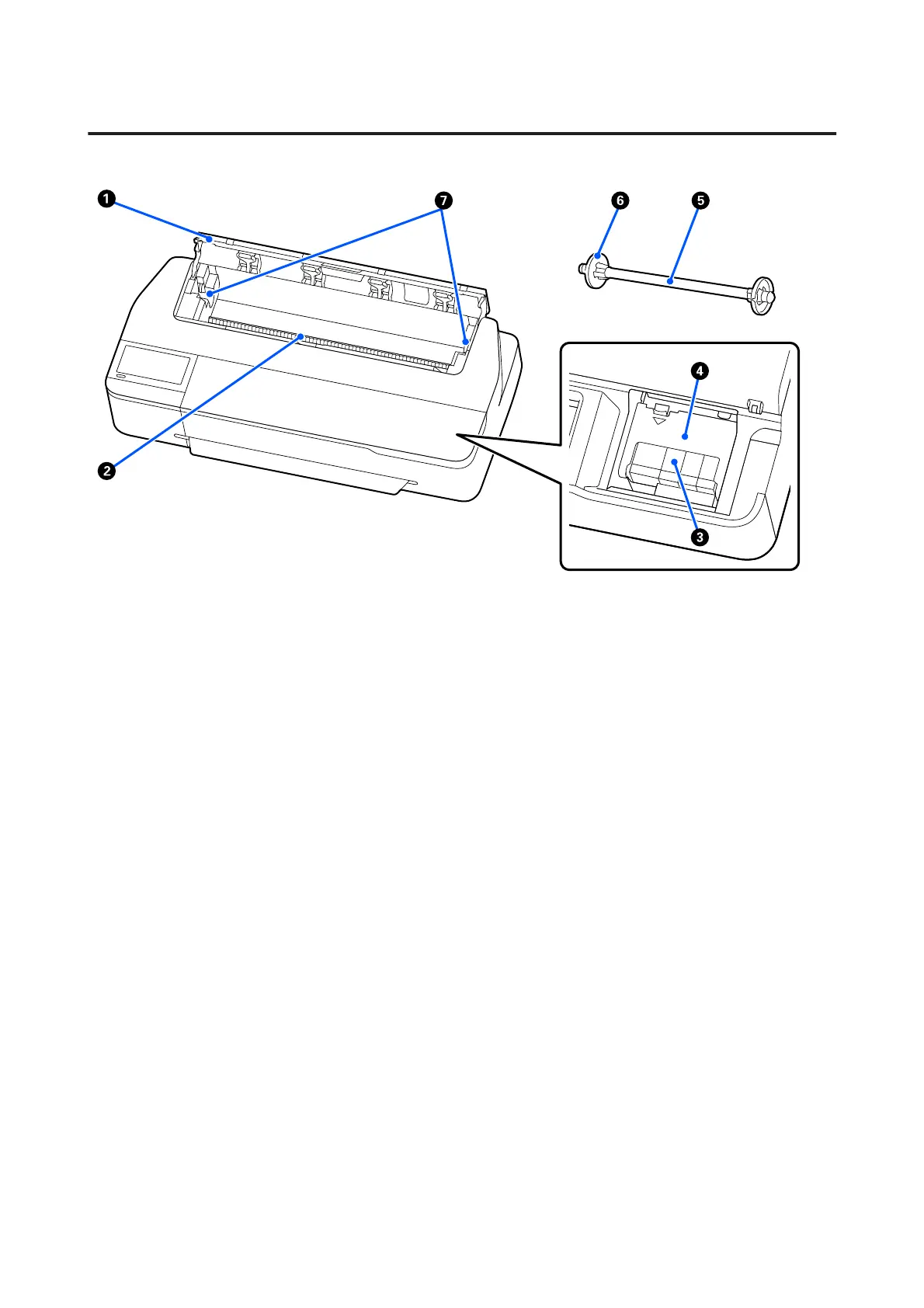

Inside
A Roll paper cover
This cover protects the loaded roll paper and prevents dust from entering inside the printer. Except when load-
ing or removing roll paper, it should be closed when using the printer.
U “Loading Roll Paper” on page 29
B Paper slot
The slot through which roll paper or cut sheets are fed during printing. Insert cut sheets manually one by one.
C Ink Cartridges
Install cartridges into all slots.
U “Replacing Ink Cartridges” on page 180
D Cartridge cover
Open when replacing ink cartridges.
E Spindle
When loading roll paper into the printer, insert this through the roll paper.
F Movable flange (transparent)
This fixes the roll paper placed on the spindle. Attach or detach it when placing or removing roll paper on/
from the spindle.
SC-T3100M Series/SC-T5100 Series/SC-T3100 Series/SC-T5100N Series/SC-T3100N Series/SC-T2100 Series User's Guide
Introduction
11
