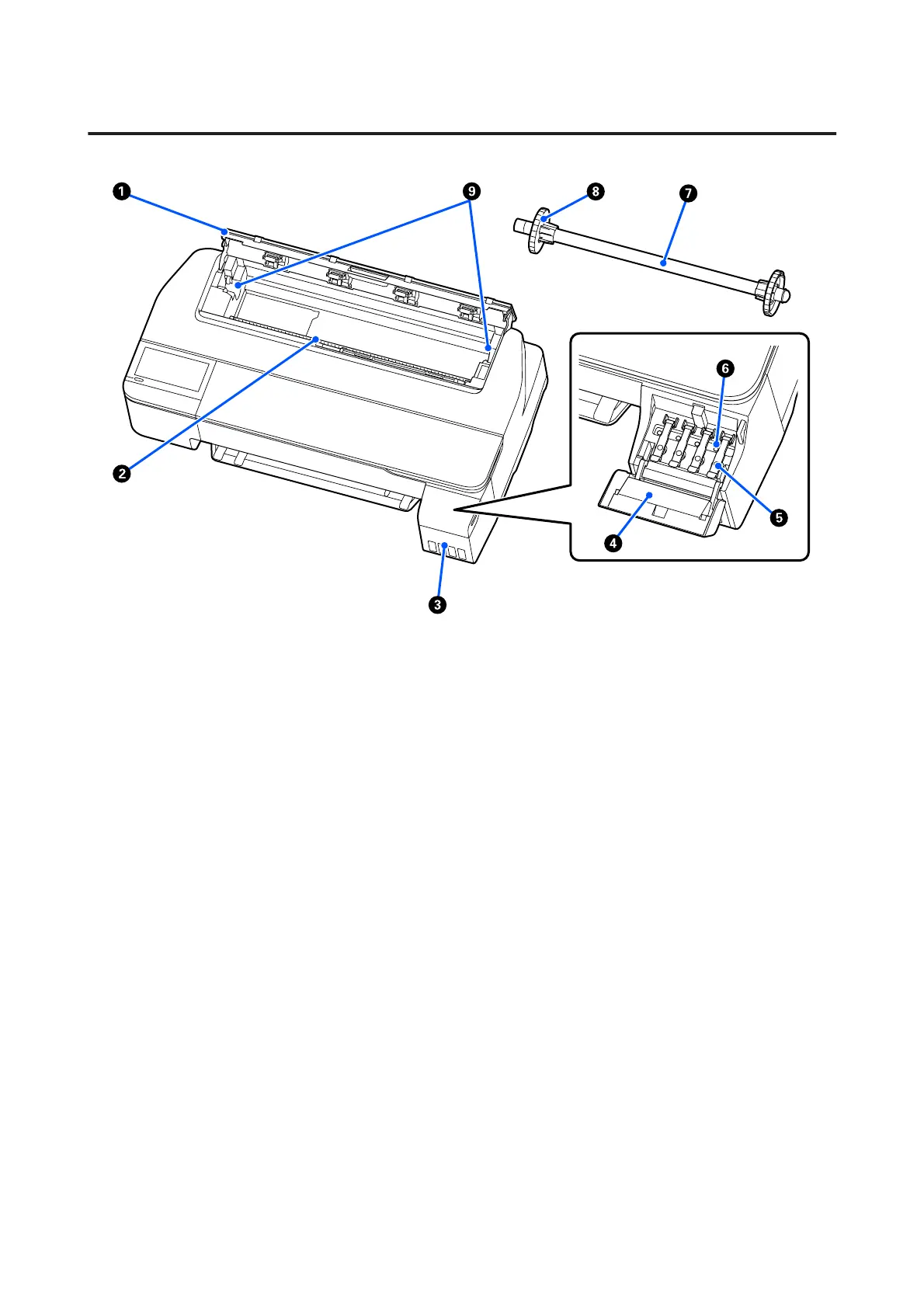

Inside
A Roll paper cover
This cover protects the loaded roll paper and prevents dust from entering inside the printer. Except when load-
ing or removing roll paper, it should be closed when using the printer.
U “Loading Roll Paper” on page 27
B Paper slot
The slot through which roll paper or cut sheets are fed during printing. Insert cut sheets manually one by one.
C Ink tanks
These supply ink to the print head.
D Ink tank cover
Open this when refilling the ink tanks.
U “Refilling ink” on page 132
E Ink tank caps
Open when refilling the ink tanks or changing the position of the transportation caps.
U “Refilling ink” on page 132
U “Moving or Transporting the Printer” on page 160
