DISASSEMBLY/ASSEMBLY Removing the Housing 66
Confidential

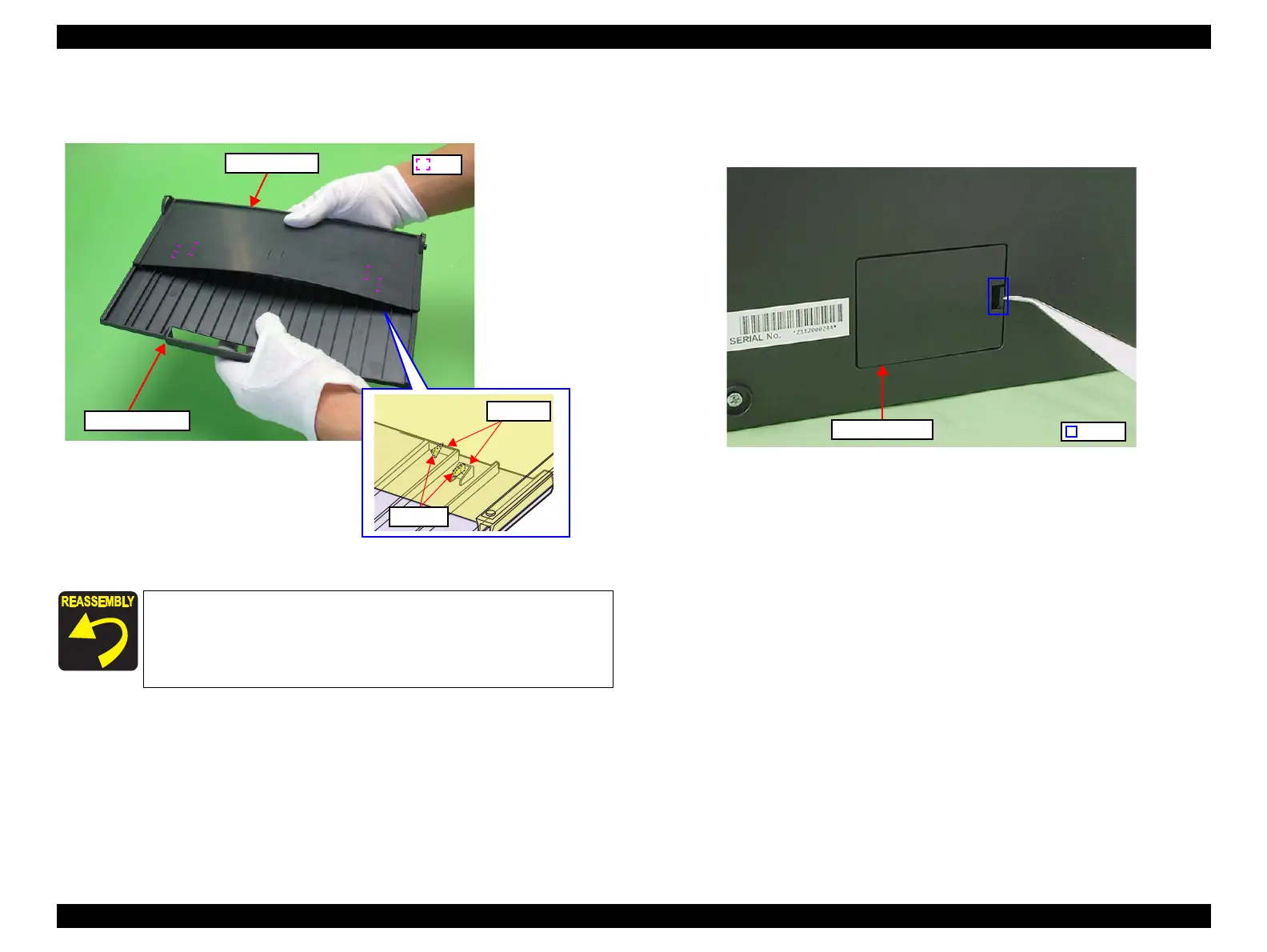

3. Bend the Stacker Assy to release the ribs, then separate the Tray Exit Outer
and the Tray Exit Inner.
Figure 4-4. Removing the Stacker Assy (2)
 Ink Tube Cover
1. Release the hook that secure the Ink Tube Cover, and remove the Ink Tube
Cover.
Figure 4-5. Removing the Ink Tube Cover
Align the edges of the Tray Exit Outer and the Tray Exit Inner, and
attach them together. Then, engage the inner ribs with the outer
ones.
Tray Exit Inner
Tray Exit Outer
Outer rib
Inner rib
Rib
Hook
Ink Tube Cover
