Epson SureColor T5270 User Manual

14 | Attaching the Paper Basket

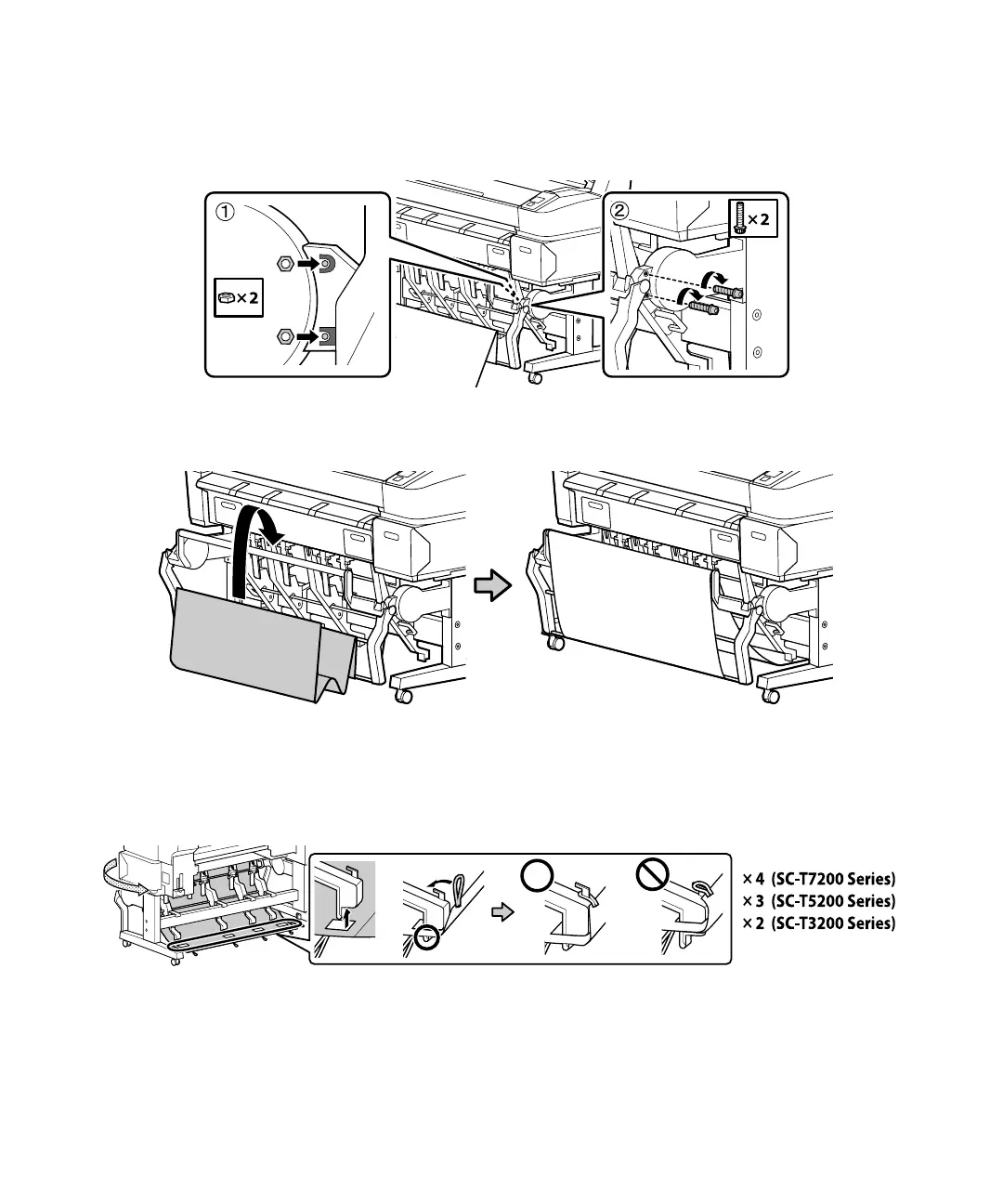

17. Use two nuts and two bolts to fasten the arm in place.
18. Flip the loose end of the basket cloth over the top rail and feed it towards the back of the printer.
19. On the back side of the printer, pull the paper basket up so that the stack guides fit into the slots as
shown. Then, hook the loops around the pins on the back of the stack guides to hold the basket in
place.

Epson SureColor T5270 Specifications

General

Print Technology	PrecisionCore TFP Print Head
Maximum Print Resolution	2880 x 1440 dpi
Printer Type	Large Format Printer
Media Thickness	Up to 1.5 mm
Operating Systems	Windows, Mac OS
Maximum Print Width	36 inches
Connectivity	USB 2.0, Ethernet
Media Handling	Roll Paper, Cut Sheet
Ink Colors	Cyan, Magenta, Yellow, Black
Weight	Approx. 91 kg
Ink Type	UltraChrome XD Ink
