Epson SureColor T5270 User Manual

Mounting the Second Paper Roll | 17

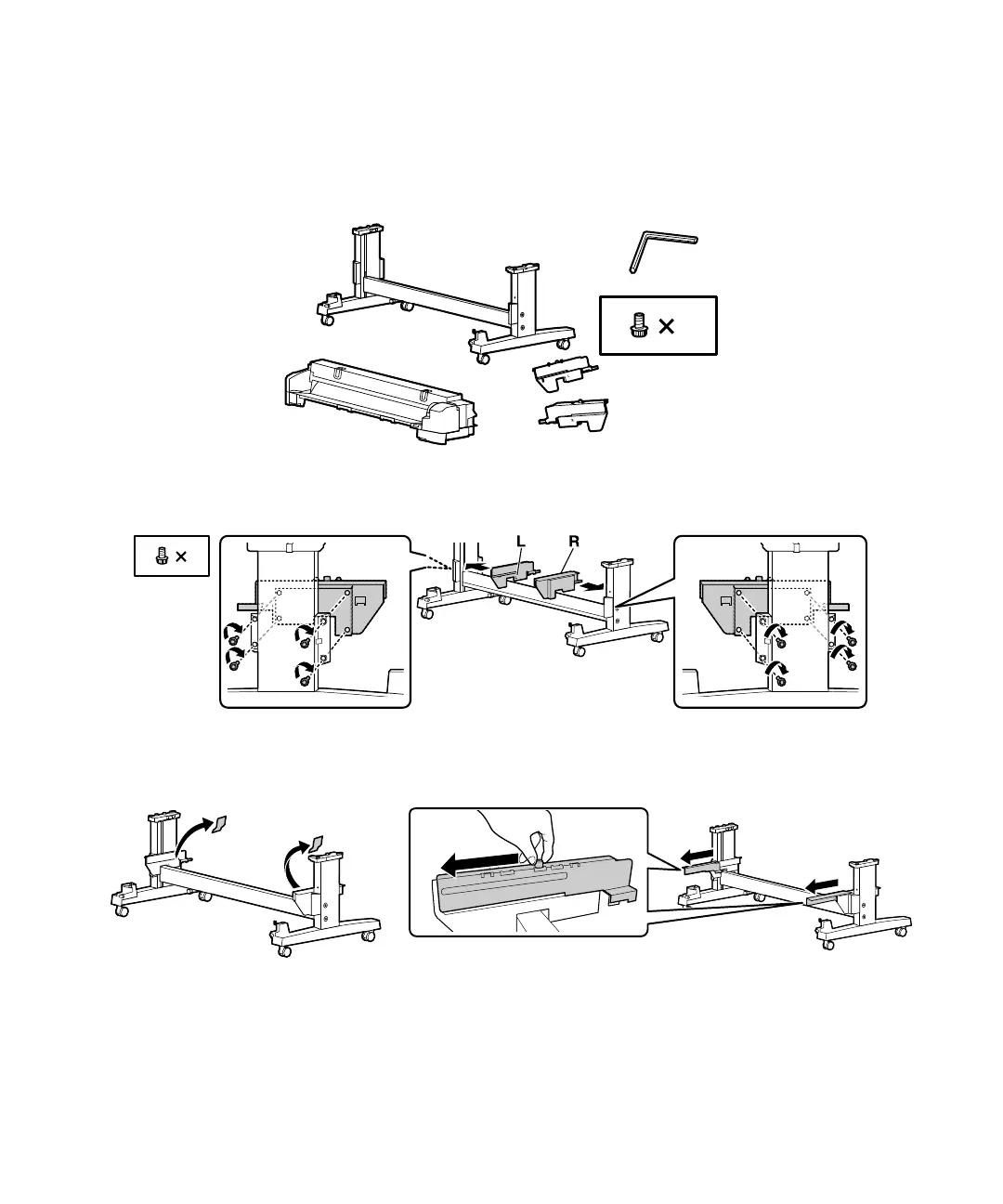

Mounting the Second Paper Roll
1. Unpack the roll unit and make sure you have all of these items.
2. Secure the roll supports to the legs of the stand using four bolts per support.
3. Remove the tape from the mounting brackets and extend the left and right rail until you hear a click.
4. Carefully place the second roll unit on the extended rails.
B
12
B
8

Epson SureColor T5270 Specifications

General

Print Technology	PrecisionCore TFP Print Head
Maximum Print Resolution	2880 x 1440 dpi
Printer Type	Large Format Printer
Media Thickness	Up to 1.5 mm
Operating Systems	Windows, Mac OS
Maximum Print Width	36 inches
Connectivity	USB 2.0, Ethernet
Media Handling	Roll Paper, Cut Sheet
Ink Colors	Cyan, Magenta, Yellow, Black
Weight	Approx. 91 kg
Ink Type	UltraChrome XD Ink
