The Unwinder and the Rewinder can handle media up to 127mm (5”) on rolls having 76mm
(3”) inside diameter and up to 250mm (9.84”) outside diameter. All devices are equipped with
an external auto switching 100/240VAC - 2,5A at 24V power supply and an electronic circuit
controls all functions.

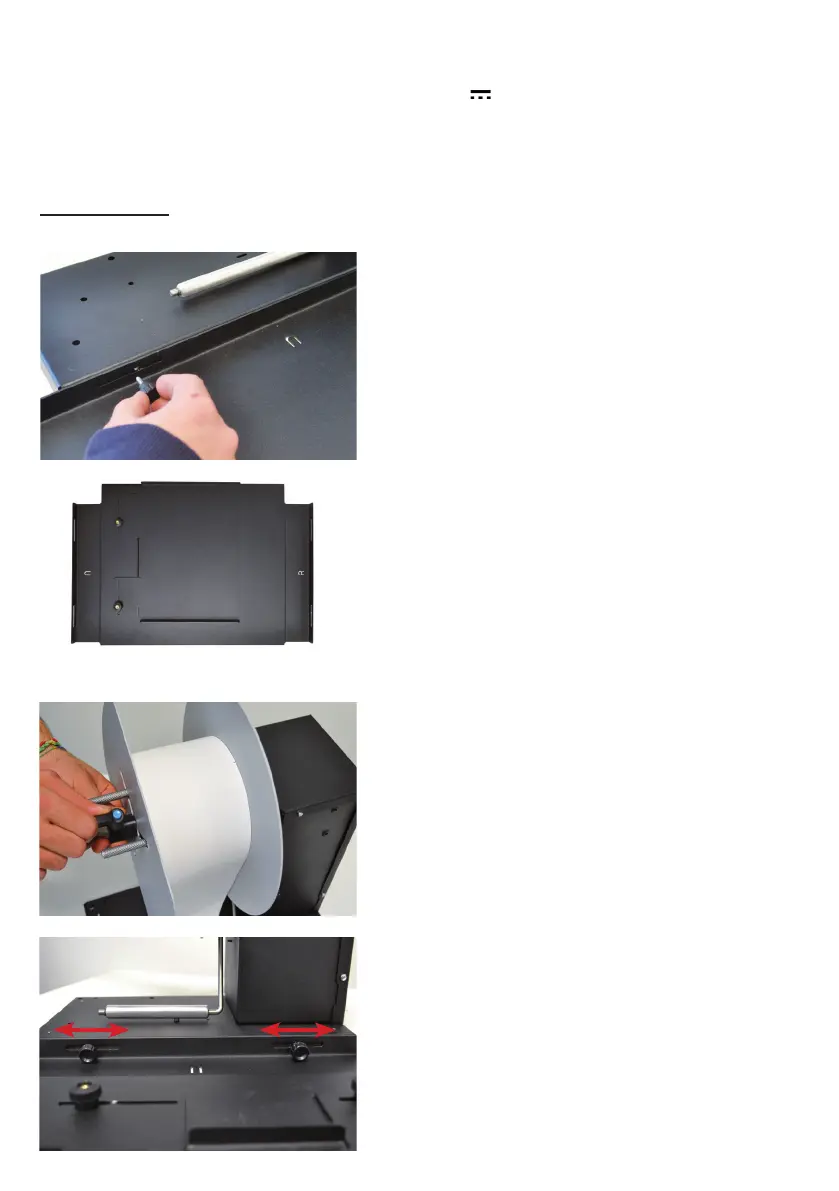

INSTALLATION
STEP 1
Attach the printer plate (EPS35-JPL) to the
unwinder (U).
Do not fasten the knobs for the moment.
Place the printer on the plate using the guide.
ATTENTION:
If you don’t have the printer plate EPS35-JPL,
connect the second base and put the printer
over.
STEP 2
Load the media roll and outside disk then tight
the knob.
Push the media under the tension arm and
then feed it into the printer (look at the printer’s
manual how to load media).
STEP 3
Make sure to align the unwinder with the
printer and turn it on. Use the knob to set the
unit at its maximum speed.
EPS35-JPL
