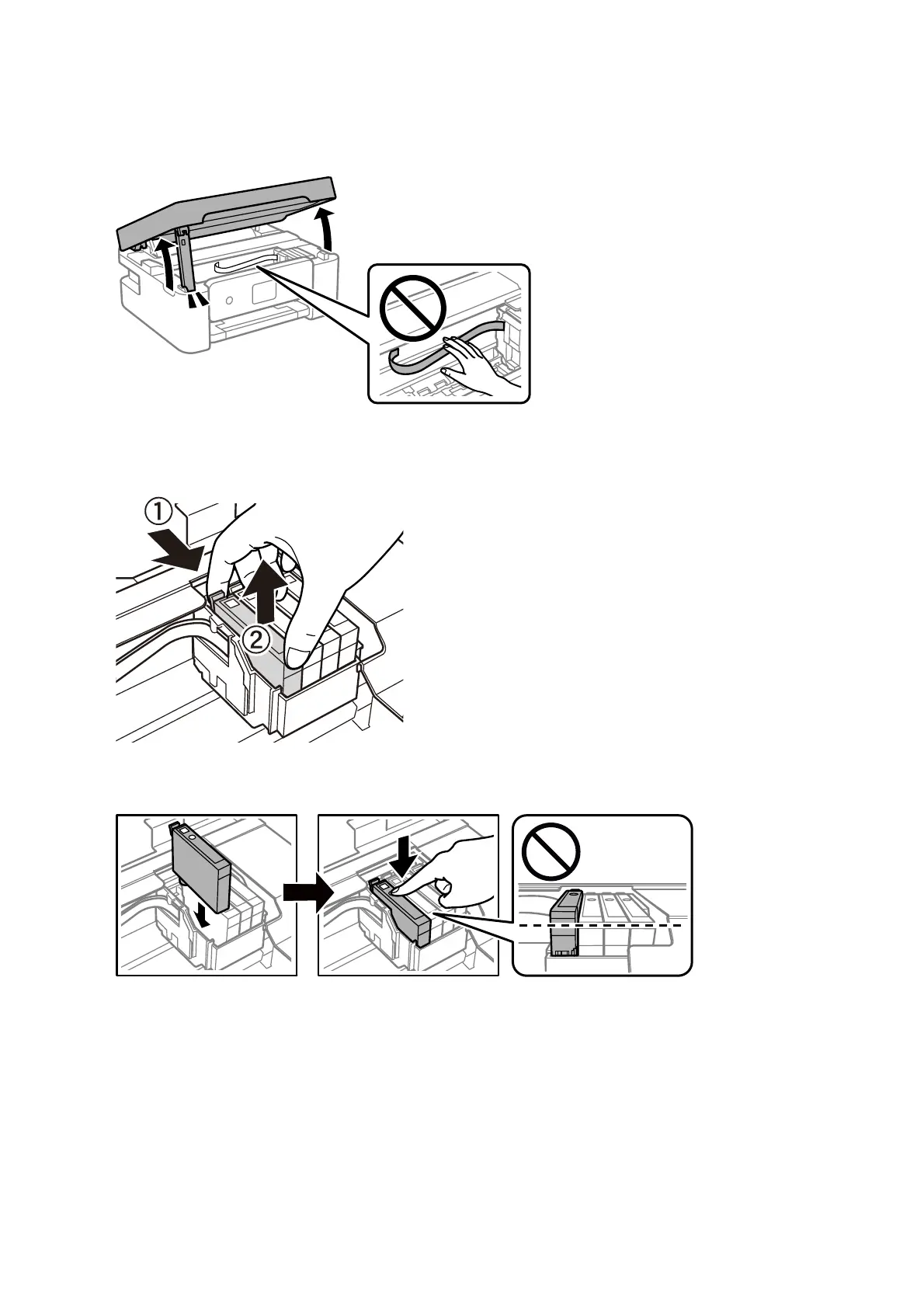

4. Open the scanner unit with the document cover closed.

5. Squeeze the tab on the ink cartridge and pull it straight up. If you cannot remove the ink cartridge, pull it

rmly.

6. Insert the new ink cartridge, and then press it down rmly.

User's Guide
