A

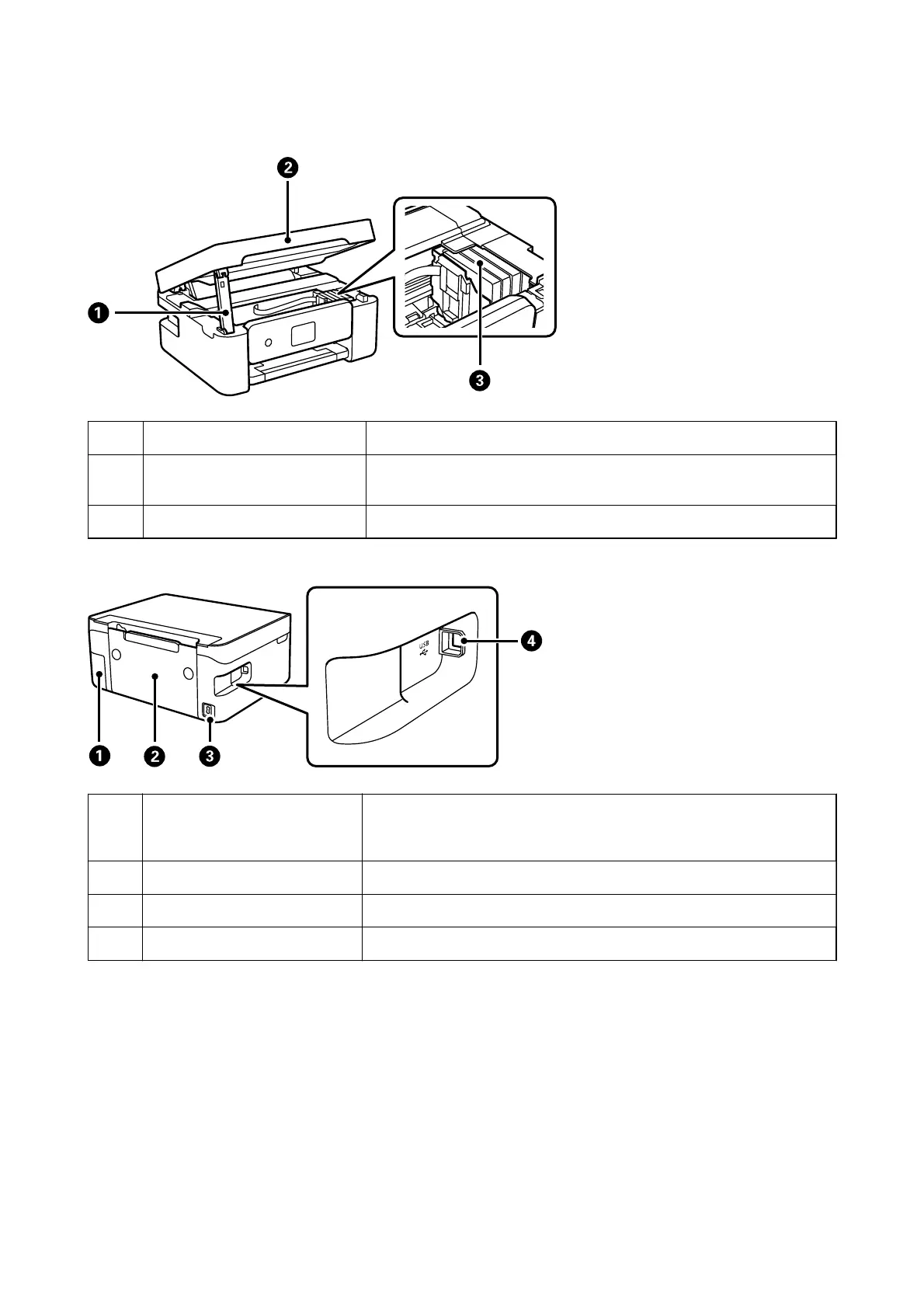

Scanner unit support Supports the scanner unit.
B
Scanner unit Scans placed originals. Open when replacing ink cartridges or removing
jammed paper inside the printer.
C
Ink cartridge holder Install the ink cartridges. Ink is ejected from the print head nozzles.
A
Maintenance box cover Remove when replacing the maintenance box. The maintenance box is a
container that collects a very small amount of surplus ink during cleaning or
printing.
B
Rear cover Remove when removing jammed paper.
C
AC inlet Connects the power cord.
D
USB port Connects a USB cable to connect with a computer.
