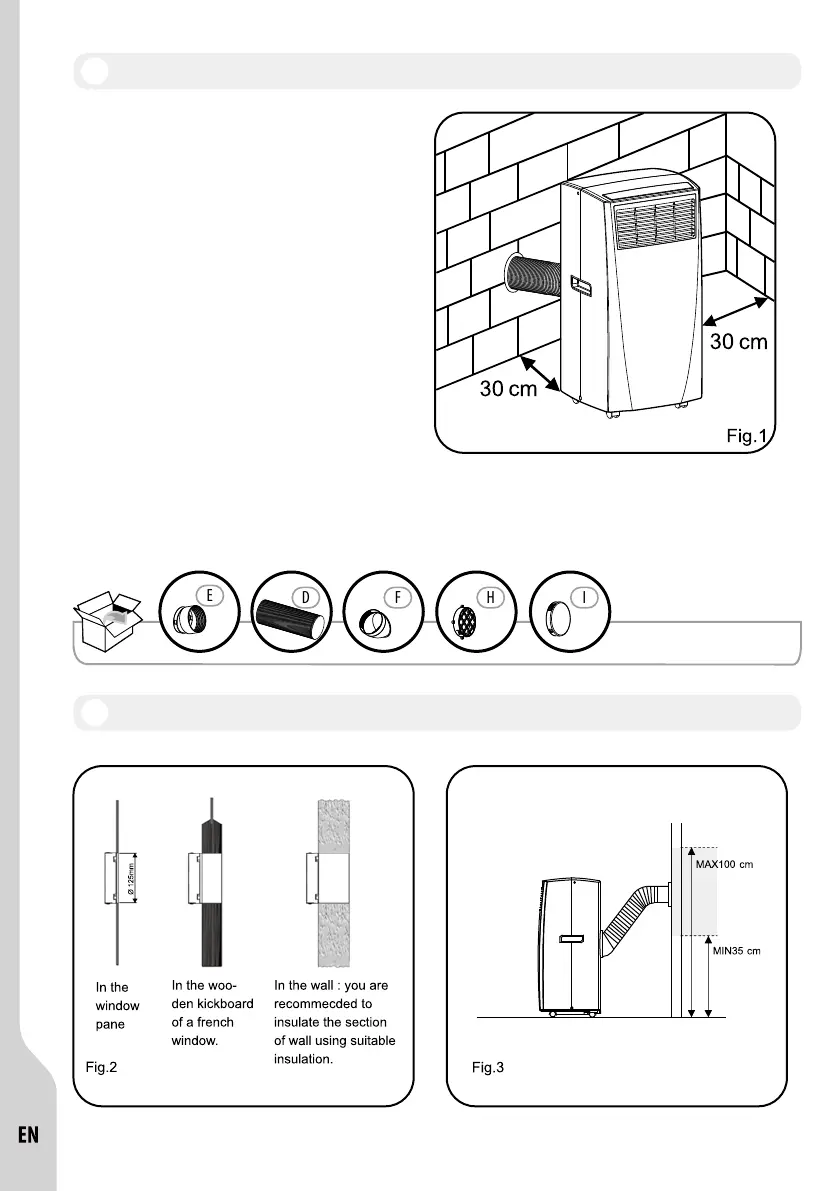

AIR CONDITIONING WITH INSTALLATION
If required, your appliance can also be installed
semi permanently (Fig.1)
Proceed as follows :
˙Drill a hole in an outside wall or through a
window pane.
Respect the height and dimensions of the
hole given in Fig. 2.
˙Fit the ange accessory xture provided
in the hole.
˙Fit the exhaust hose in the housing at the back
of the appliance.
˙Insert the other end of the exhaust hose to the
ange previously t on the wall as shown in Fig.3.
When the hose is not in use, place the cap for
connector to cover the hole.
NOTE :
When installing the air conditioner semi permanently,
you should leave a door slightly open (as little as 1cm)
to guarantee sucient ventilation.
