Note: Do not over-tighten the screws. Leave
enough scope for the foam rubber mat to devel
-
op a good absorbing effect.
2. Mounting the saw blade guard
(see Fig.B1—Fig.B3)
Slide the saw blade guard (2) onto the retention
bolt (e). Insert the screw through the bore hole of
the retention bolt (e) and the saw blade guard (2).
(Fig.B1)
Use the nut to secure the screw from falling out.
(Fig.B2)
The saw blade guard can be fixed at various
heights with the lock knob (f). (Fig.B3)

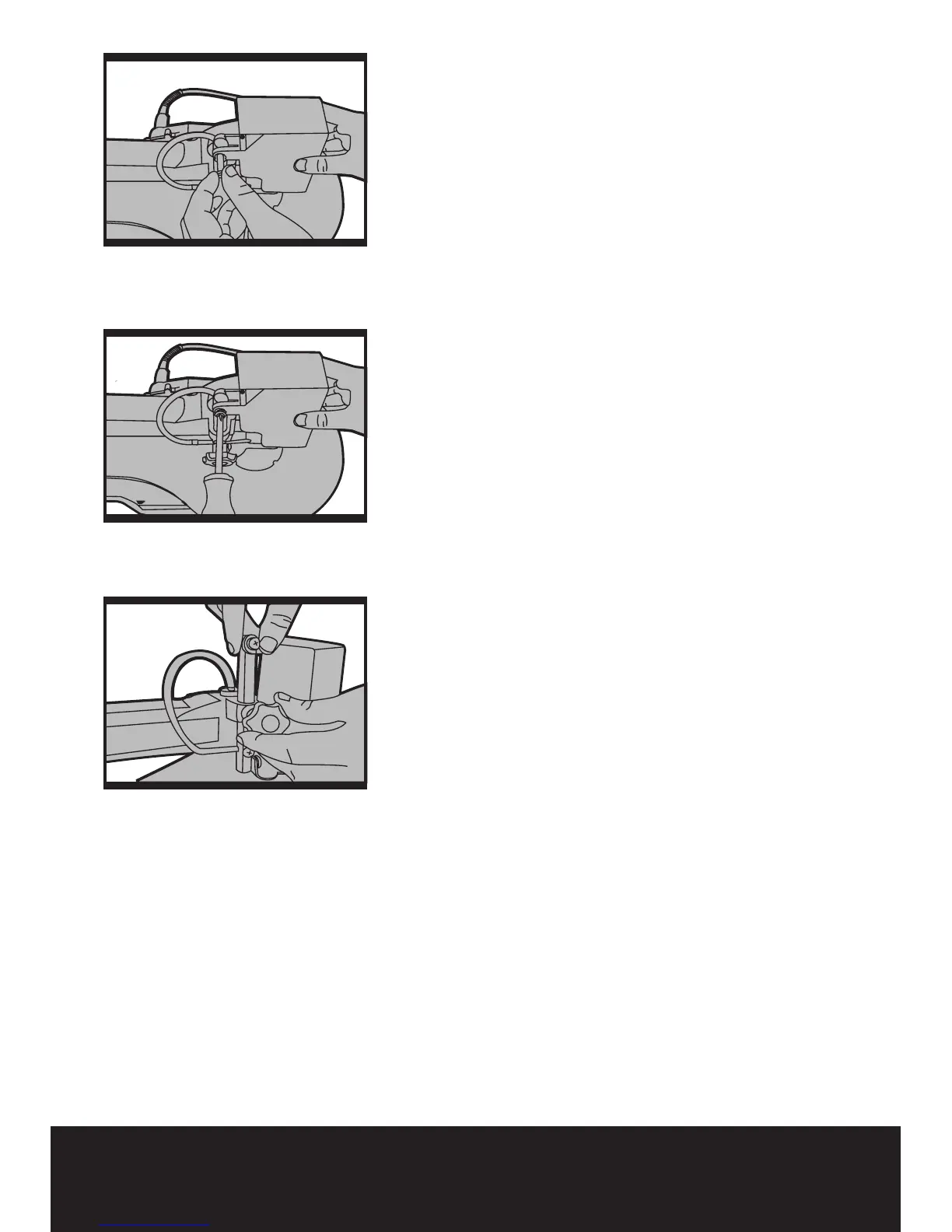

Fig.B1
Fig.B2
Fig.B3
