Ergolux ELSTD1MTMBA - Page 11

11

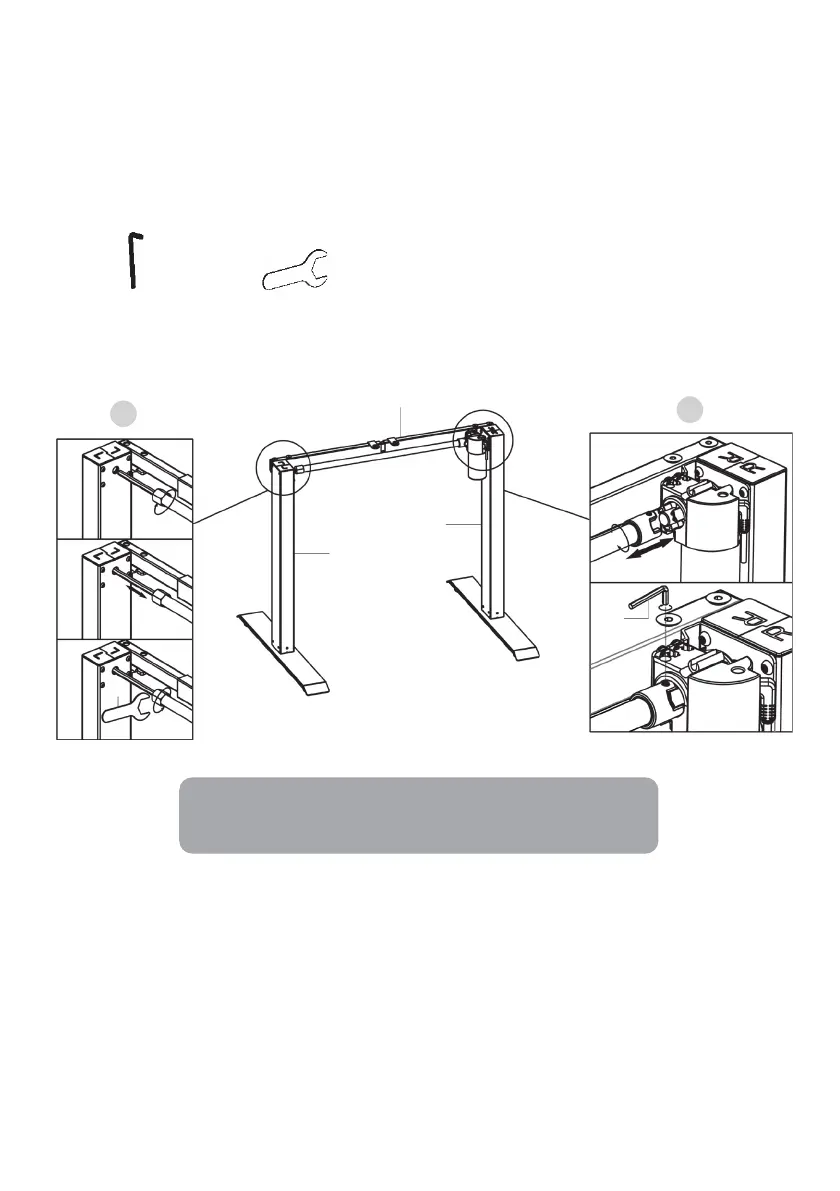

Step 3: Installing the transmission rod
Loosen, align, and insert one end of the transmission rod (4) into the left column (10). Using
the wrench (G), tighten the transmission rod.
Slightly rotate the transmission rod and insert it into the right column (7). Using the 2.5mm
Allen key (D), tighten the transmission rod until secure.
D (x1) G (x1)
Note:
Do not rotate the transmission rod by more than 120
°
.
1
2
Loosen
Insert
Tighten
Insert
Rotate
D
Tighten
4
10
7
G
