5 of 9
888-98-037-G-00 rev. C • 06/19
2
M4 x 10mm
4x
a
0°
M4x 6mm
1x
4x
M4 x 10mm

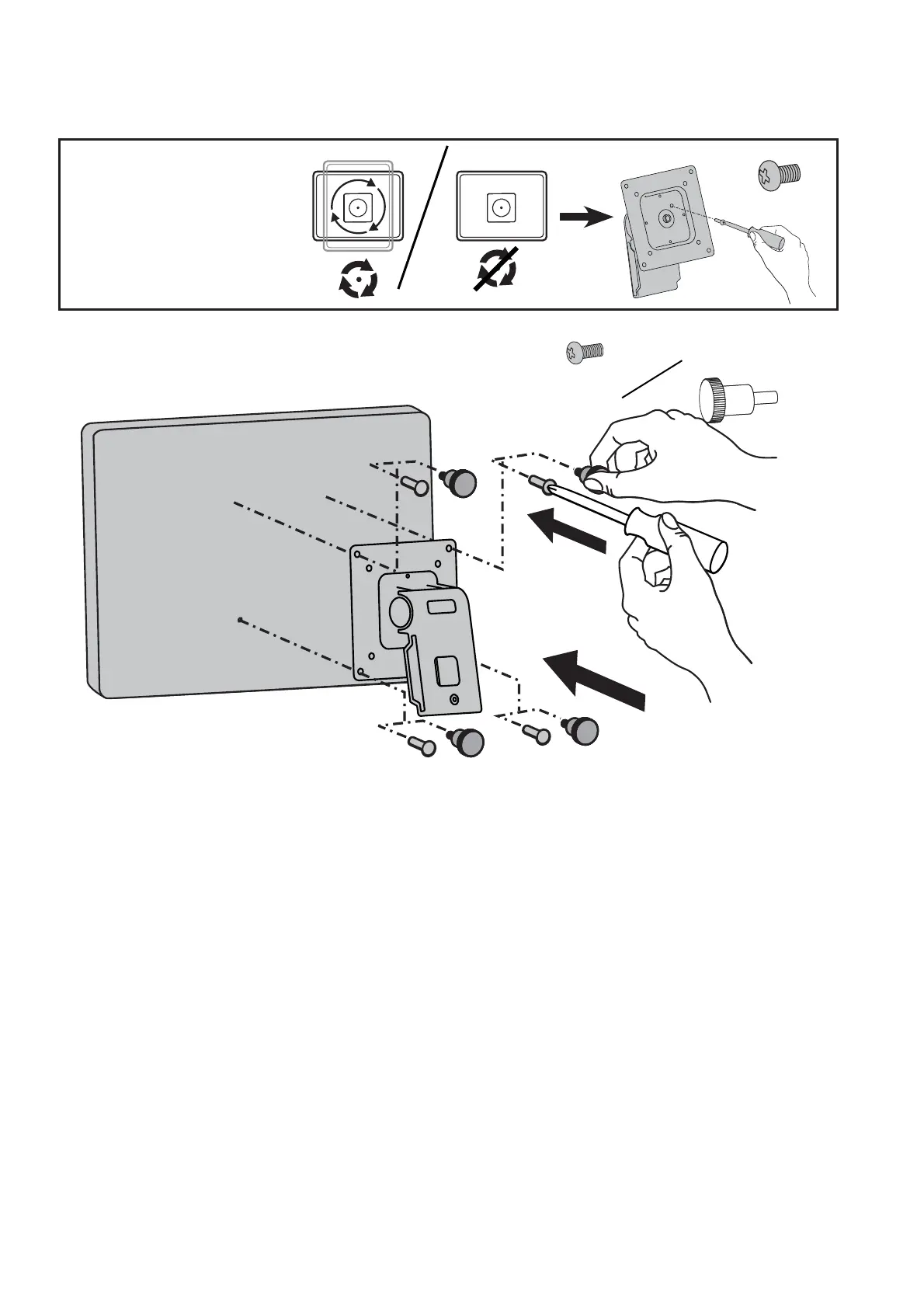

Install tilt pivots.
OPTIONAL: Insert stop
screw to lock portrait/
landscape
monitor rotation.
