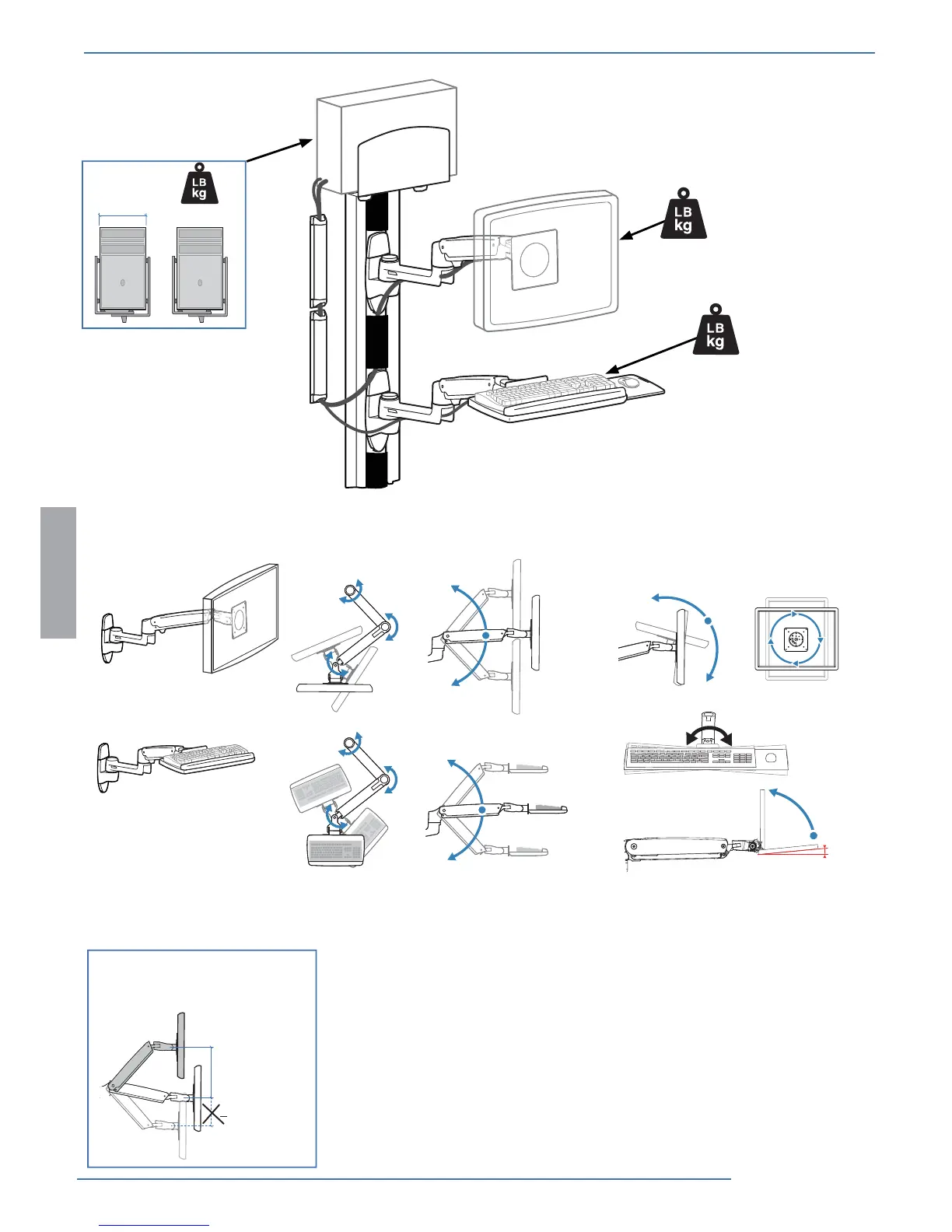

Ergotron LX Wall Mount System User Manual

2 of 18
888-45-176-W-06 rev.R • 09/14
5°
70°
180°
360°
180°
13"
(330 mm)
0 - 5 lbs
(0 - 2.3 kg)
180°
360°
180°
13" (330 mm)
1.38" - 3.75"
(35-95 mm)
50 lbs (22.7 kg)
90°
5°
3°3°
5 - 25 lbs*
(2.3 - 11.3 kg)
< 4.5” (114 mm)
8.5” (216 mm)
ENGLISH
* The lower most range of motion for vertical lift is
decreased up to 4.5” (114 mm) when arm is adjusted to
hold over 20lbs (9 kgs).
