Ergotron Neo-Flex Assembly Instructions

888-45-050-00 rev.B • 05/06
8 of 12
3
RANGE OF MOTION This product is designed to adjust quickly and easily according to your needs
– refer to following steps for adjustment.
RANGO DE MOVIMIENTO Este producto ha sido diseñado para permitir un ajuste rápido y sencillo
según sus necesidades (acuda a los siguientes pasos para un óptimo ajuste).
MOUVEMENTS Ce produit est conçu pour s’adapter rapidement et facilement à vos besoins. Pour
un bon ajustement, respectez les étapes suivantes:
4

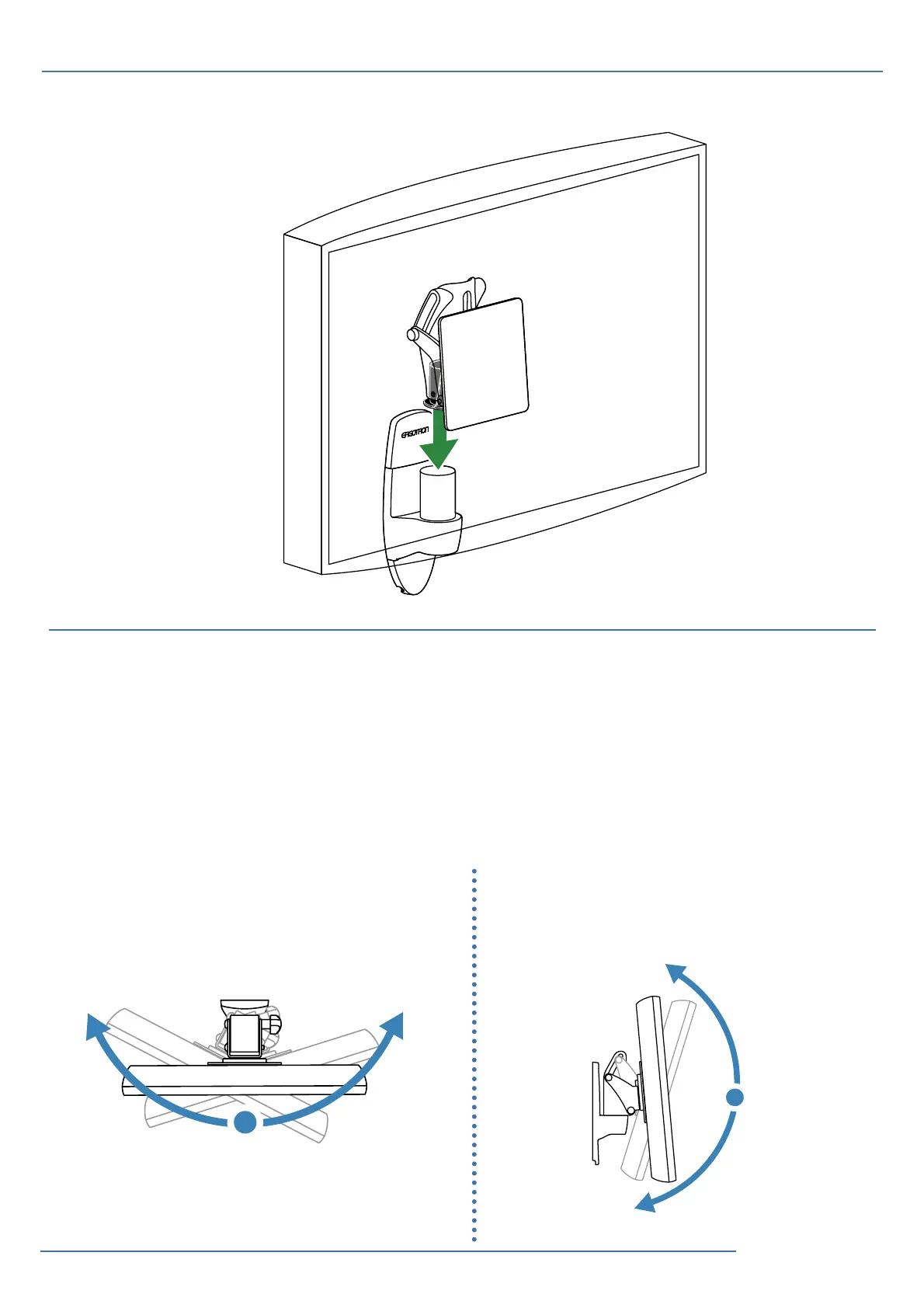

Pan – Side-to-side
Giro (derecha e izquierda)
Orientation : Droite et Gauche
Tilt – Forward and Backward
Inclinación (adelante y atrás)
Inclinaison : Avant et arrière
± 20˚
+ 15˚
- 5˚
MOUNT TO WALL MOUNT BRACKET

Ergotron Neo-Flex Specifications

General

Pan range	0 - 24 °
Tilt angle range	0 - 25 °
Angle of rotation	90 °
Mounting type	Ceiling
Maximum VESA mount	600 x 400 mm
Minimum VESA mount	200 x 100 mm
Maximum screen size	65 \
Minimum screen size	32 \
Maximum weight capacity	56.7 kg
Panel mounting interface	200 x 100, 200 x 200, 280 x 150, 300 x 100, 300 x 200, 300 x 300, 360 x 304, 400 x 200, 400 x 300, 400 x 400, 400 x 600, 420 x 240, 420 x 410, 500 x 350, 540 x 360, 600 x 200, 600 x 400 mm
Number of displays supported	1
Mounting kit	Yes
Package weight	10900 g
Safety	RoHS
Product color	Black
Harmonized System (HS) code	85299097
