Ergotron Zip12 - Page 3

3 of 8
888-97-394-G-00 rev. C • 08/15
1
2
a
a
b
b
ENGLISH

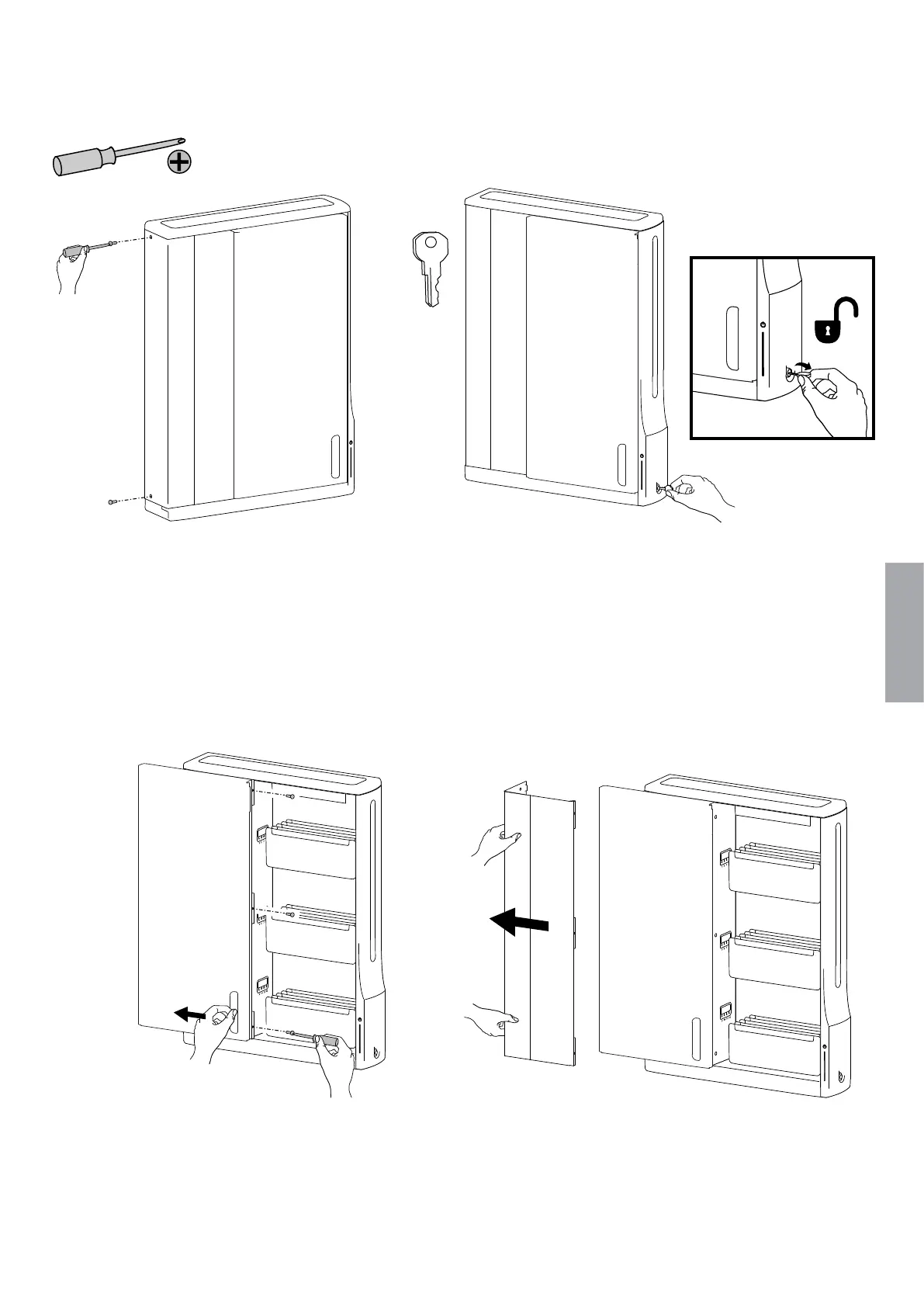

a. Remove two screws on left side. Save screws for reattaching cover.
b. Unlock door by turning key 180° clockwise, then turning door knob 180° clockwise.
a. Slide door to the left and remove these 3 screws. Save screws for reattaching cover.
b. Remove left cover.
