Item no: 07708

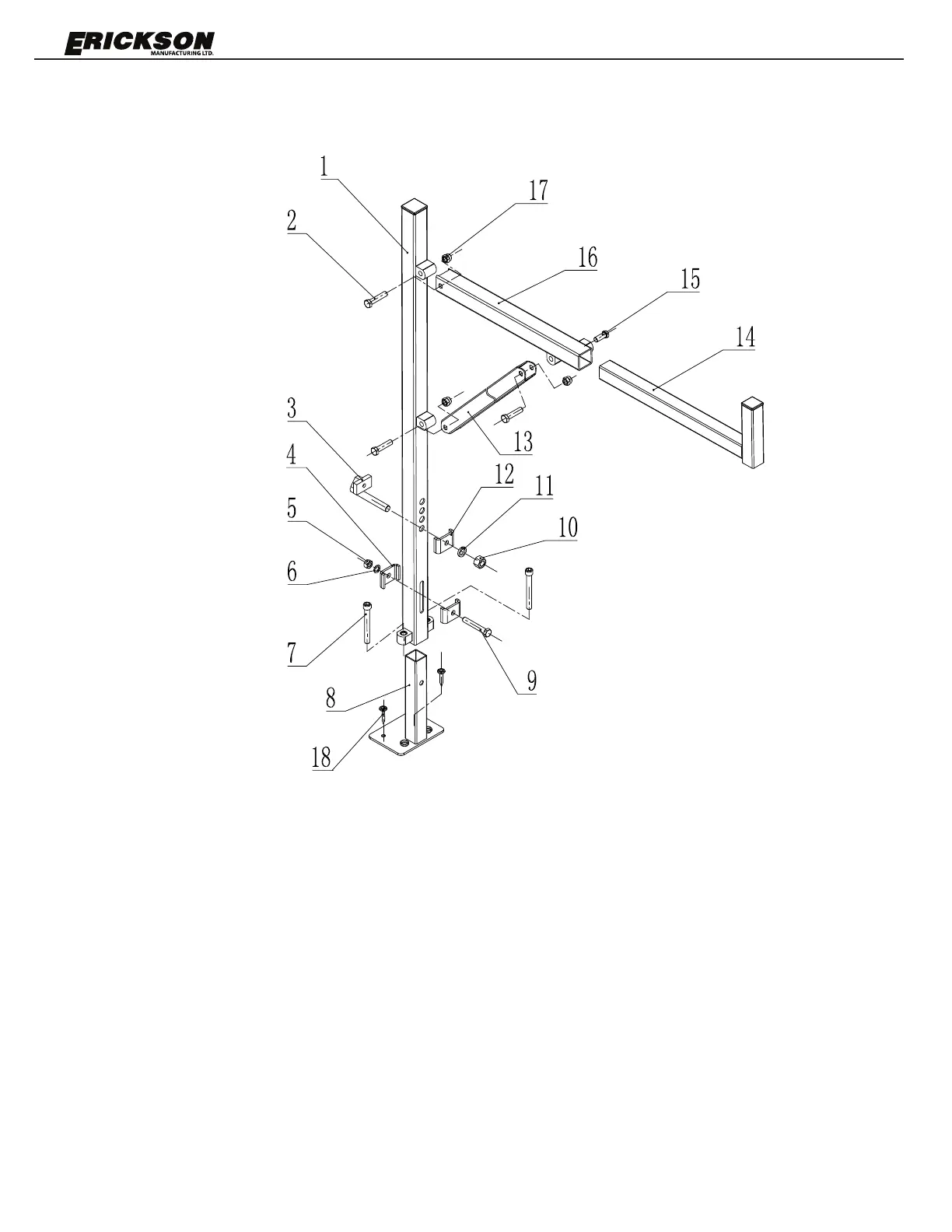

EXPLOSION DIAGRAM AND PARTS LIST
Item# Description Q’ty Item# Description Q’ty
1 Frame 2 10 M16 nut 2
2 M12*55 hexagon bolt 6 11 16 spring washer 2
3 Stop bolt 2 12 16-U bolt 2
4 12-U bolt 4 13 Supporting arm 2
5 M12 nut 2 14 Extended arm 2
6 12 spring washer 2 15 M12*30 hexagon bolt 2
7 M12X100 Socket
head screw bolt 4 16 parallel support frame 2
8 base 2 17 M12 locknut 6
9 M12*75 hexagon bolt 2 18 Self-tapping screw 4
To Next Page
