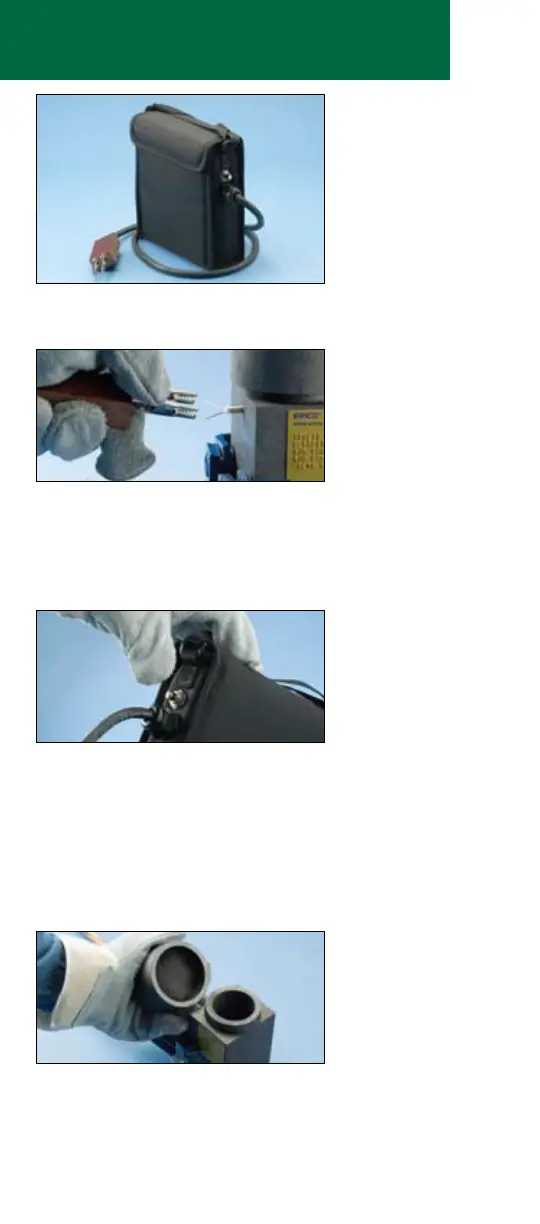

Fig. 24

CADWELD

EXOLON battery pack.

Fig. 25

Take the alligator clips and clip them onto the

wire leads. Remove or protect ﬁre hazards in close

proximity to the connection. Advise nearby personnel

of welding operations in the area.

Fig. 26

Using the CADWELD EXOLON battery pack, press

the button. At this time, the unit will send a charge

to the igniter pin. The igniter pin will initiate the

CADWELD EXOLON exothermic reaction.

Allow approximately 30 seconds for completion of

the reaction and solidiﬁcation of the molten material.

Fig. 27

Remove the alligator clips from the igniter pin.

Remove the graphite cover of the CADWELD

EXOLON mold.

The CADWELD

EXOLON Process
